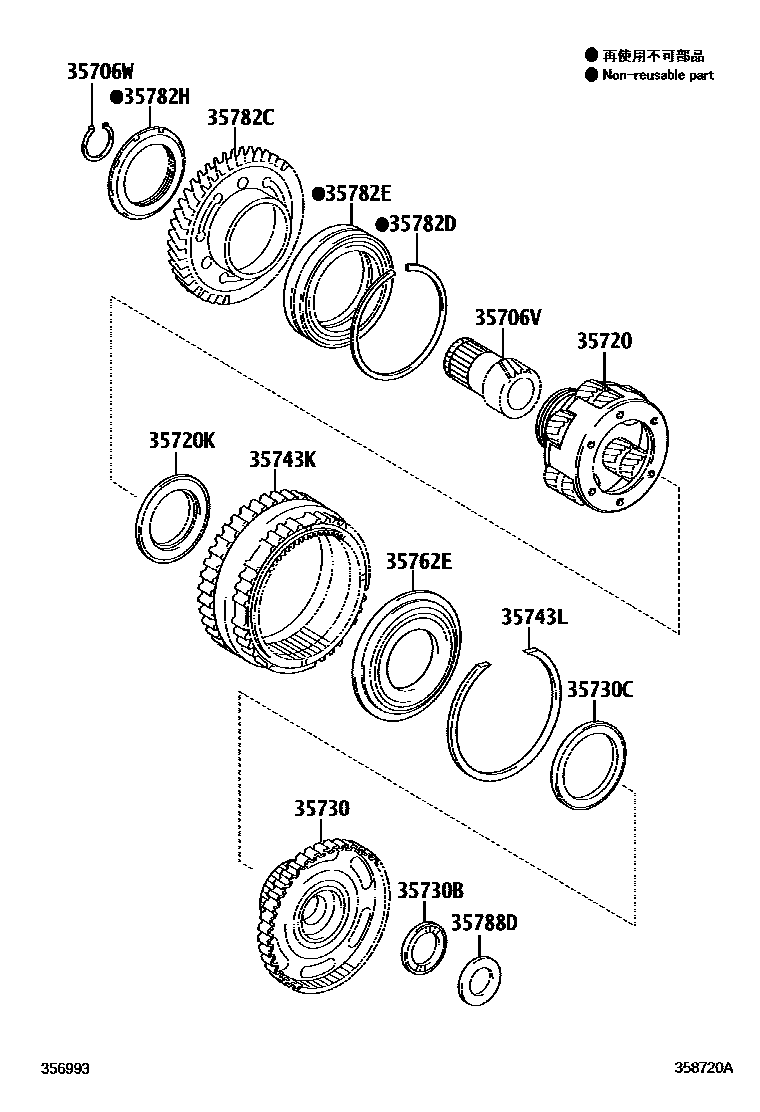

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iGSV60201206-201507

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iGSV60201206-201507

35720GEAR ASSY, FRONT PLANETARY

main35720-33062iGSV60201206-201507

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62002iGSV60201206-201310

sub90374-62007

main90374-62007iGSV60201310-201507

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iGSV60201206-201507

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iGSV60201206-201507

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iGSV60201206-201507

35743KGEAR, PLANETARY RING

main35743-33030iGSV60201206-201507

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iGSV60201206-201507

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGSV60201206-201507

35782CGEAR, COUNTER DRIVE

main35782-33031iGSV60201206-201507

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99110iGSV60201206-201402

main90520-99154iGSV60201402-201507

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72001iGSV60201206-201402

sub90369-72002

main90369-72002iGSV60201402-201507

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iGSV60201206-201507

35788DRACE, THRUST BEARING, NO.3

main35788-33020iGSV60201206-201507

15 parts on this diagram · 1 diagram in section
