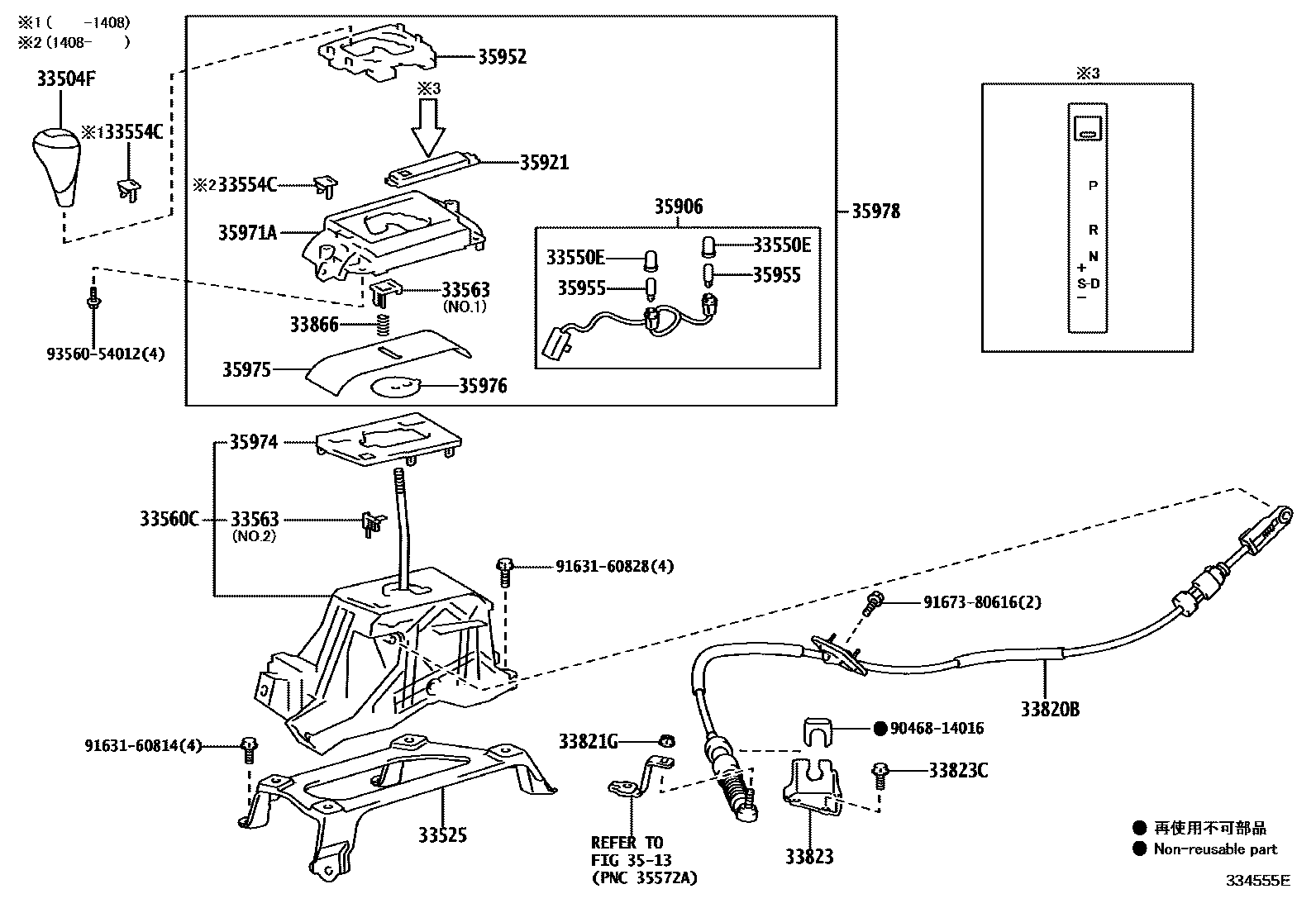

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,40
NOBLE BROWN,TRIM0#,41,5#
NOBLE BROWN,TRIM0#,5#
33525SUPPORT, SHIFT LEVER
33550ECAP, POSITION INDICATOR LAMP
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33560CLEVER ASSY, SHIFT, LOWER
33563BUTTON, SHIFT LOCK RELEASE
NO.2
NO.1
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
33866SPRING, SHIFT LOCK RELEASE
3513
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35952LENS, POSITION INDICATOR
35955BULB, POSITION INDICATOR LAMP
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
BLACK/LT.GRAY,TRIM1#,2#,40
BLACK/LT.GRAY,TRIM1#,2#
NBL.BROWN/IVORY,TRIM0#,5#
NBL.BROWN/IVORY,TRIM0#,41,5#
BLACK/LT.GRAY,TRIM1#,2#
NOBLE BROWN/IVORY,TRIM0#,5#
9046814016
main90468-14016
9163160814
main91631-60814
9163160828
main91631-60828
9167380616
main91673-80616
9356054012
main93560-54012
26 parts on this diagram · 4 diagrams in section
