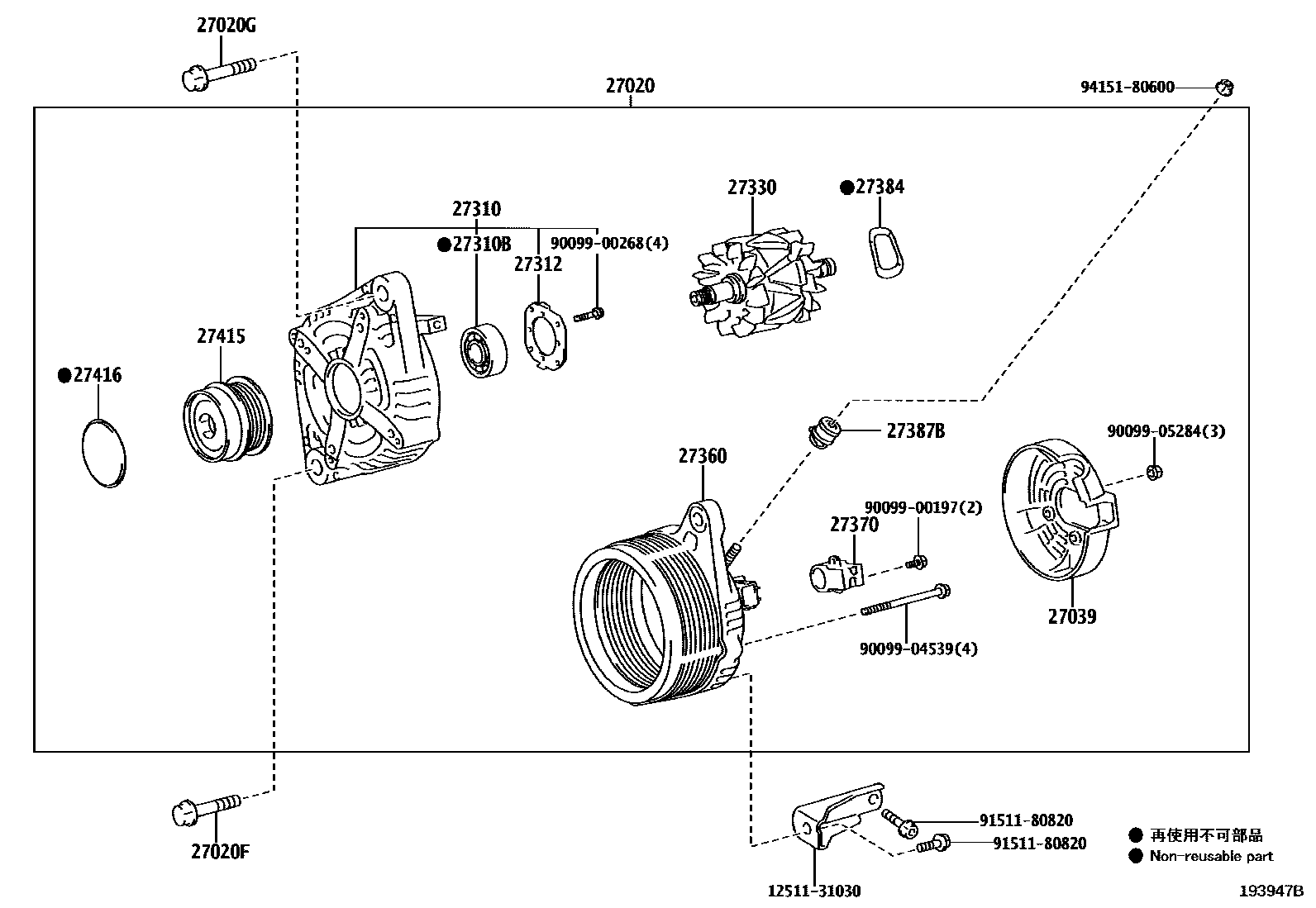

ALTERNATOR

27020ALTERNATOR ASSY

main27060-31112i2GRFE..GSV60201206-201708

12V 130A

main27060-31331i2GRFE..GSV60201708

12V 150A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i2GRFE..GSV60201206-201507

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i2GRFE..GSV60201206-201507

27039COVER, ALTERNATOR REAR END

main27039-31390i2GRFE..GSV60201206-201507

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31290i2GRFE..GSV60201206-201507

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2GRFE..GSV60201206-201507

27312PLATE, RETAINER

main27312-72100i2GRFE..GSV60201206-201507

27330ROTOR ASSY, ALTERNATOR

main27330-33090i2GRFE..GSV60201206-201708

main27330-58460i2GRFE..GSV60201708

27360COIL ASSY, ALTERNATOR

main27360-31310i2GRFE..GSV60201206-201708

main27360-31491i2GRFE..GSV60201708

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2GRFE..GSV60201206-201507

27384WASHER

main27384-50030i2GRFE..GSV60201206-201507

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2GRFE..GSV60201206-201507

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W130i2GRFE..GSV60201206-201306

sub27415-0W131

main27415-0W131i2GRFE..GSV60201307-201507

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2GRFE..GSV60201206-201507

1251131030BRACKET, ALTERNATOR, NO.1

main12511-31030

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9151180820

main91511-80820

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
