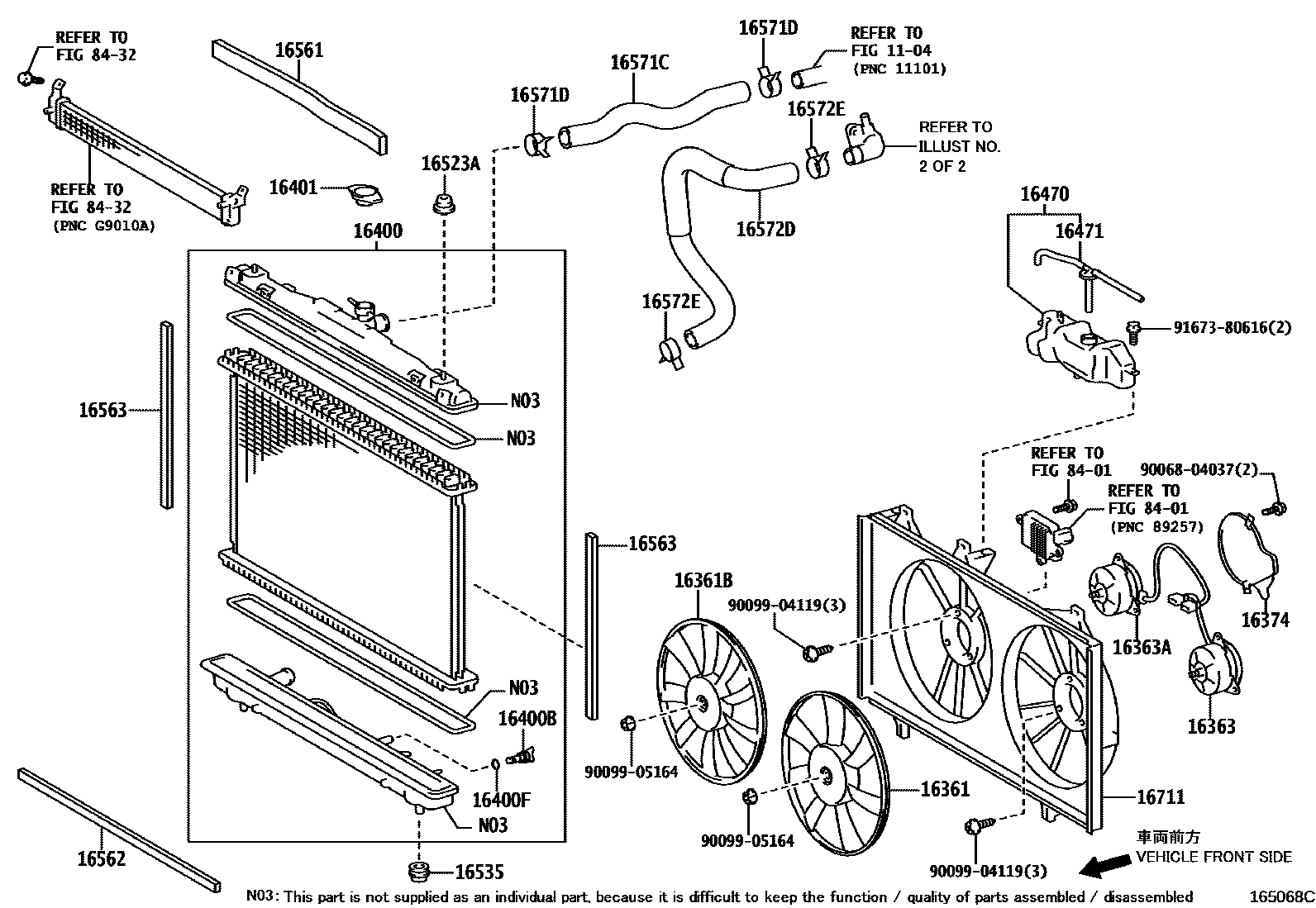

RADIATOR & WATER OUTLET
1104
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16563SEAL, RADIATOR TO SUPPORT, NO.3
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
8401
8432
9006804037
main90068-04037
9009904119
main90099-04119
9009905164
main90099-05164
9167380616
main91673-80616
28 parts on this diagram · 4 diagrams in section
