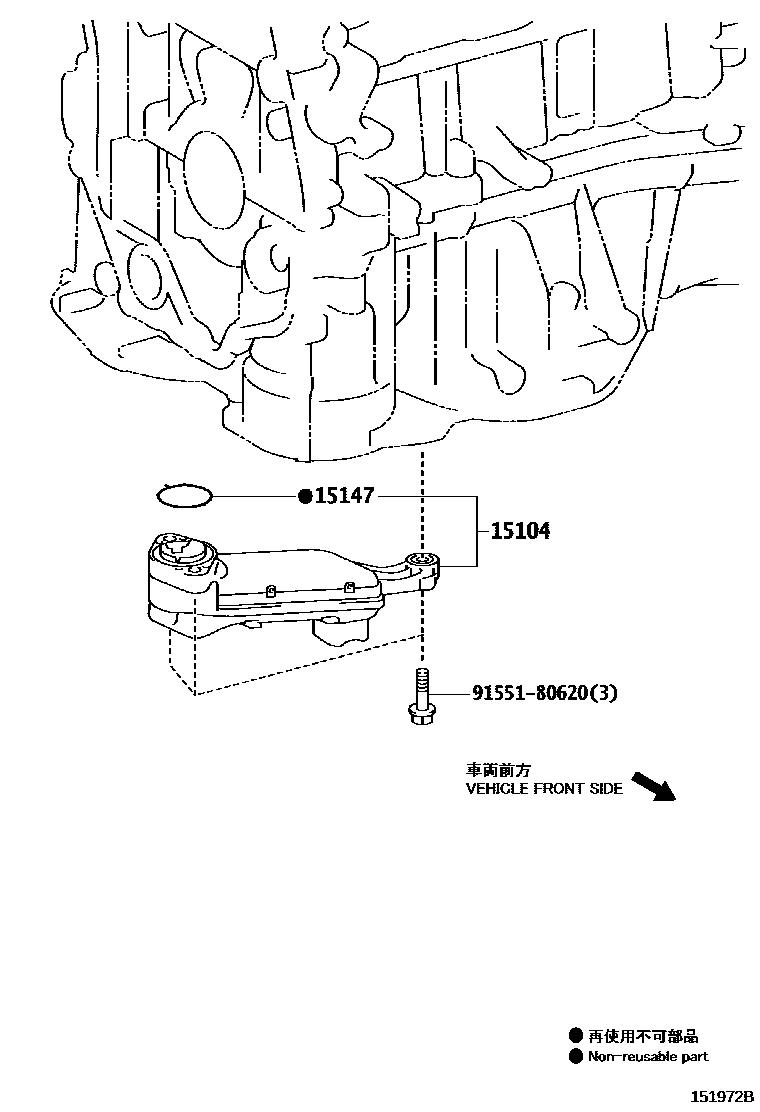

ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-31120i2GRFE..GSV60¥5,100201206-201504

main15104-31190i2GRFE..GSV60¥3,570201504-201507

main15104-36020i2ARFXE..AVV60¥1,980201206-201507

15147GASKET, OIL STRAINER

main15147-31060i2GRFE..GSV60¥270201206-201507

main15147-36010i2ARFXE..AVV60¥340201206-201507

9155180620

main91551-80620¥60

3 parts on this diagram · 2 diagrams in section
