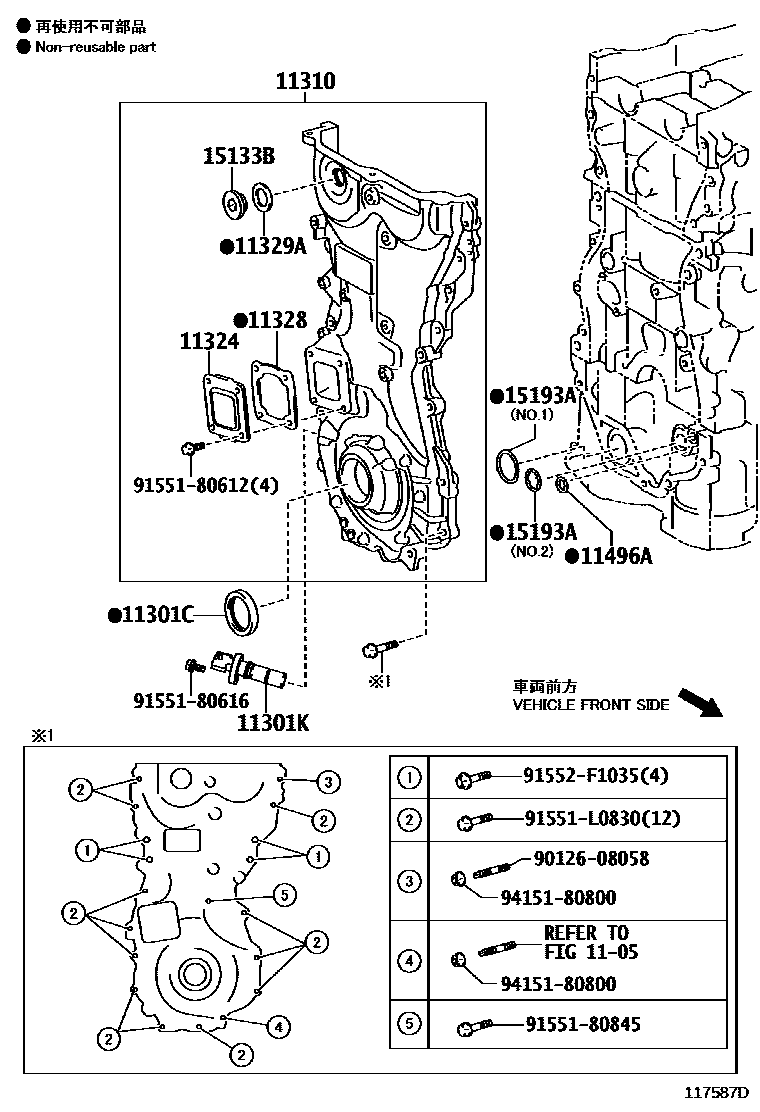

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFXE..AVV60201408-201507

sub90311-42061

main90311-42043i2ARFXE..AVV60201206-201312

sub90311-42051

main90311-42045i2GRFE..GSV60201206-201507

main90311-42051i2ARFXE..AVV60201312-201408

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFXE..AVV60201206-201507

11310COVER ASSY, TIMING CHAIN

main11310-36020i2ARFXE..AVV60201206-201507

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFE..GSV60201206-201507

main11324-36010i2ARFXE..AVV60201206-201507

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFE..GSV60201206-201507

main11328-36020i2ARFXE..AVV60201206-201507

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36010i2ARFXE..AVV60201206-201502

sub11329-36020

main11329-36020i2ARFXE..AVV60201503-201507

11496AGASKET, OIL HOLE COVER

main11496-36010i2ARFXE..AVV60201206-201507

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i2ARFXE..AVV60201206-201507

15193AGASKET, OIL PUMP

main15193-36010i2ARFXE..AVV60201206-201507

NO.1

main15197-36010i2ARFXE..AVV60201206-201507

NO.2

9012608058

main90126-08058

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
