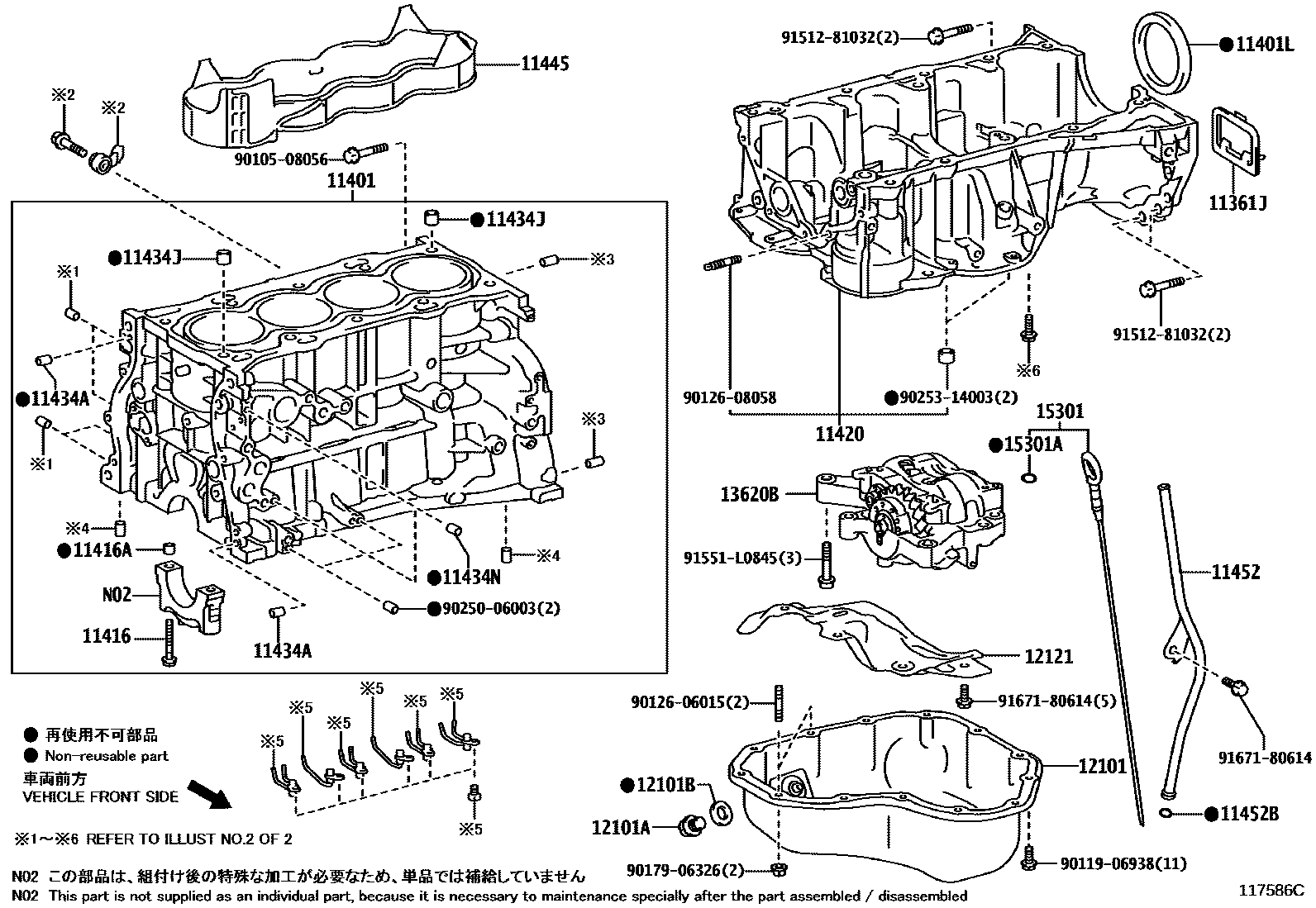

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-28010i2ARFXE..AVV60¥540201206-201507

11401BLOCK SUB-ASSY, CYLINDER

main11401-80774i2GRFE..GSV60¥317,000201206-201210

sub11401-80825¥317,000

main11401-80800i2GRFE..GSV60¥317,000201210-201406

sub11401-80814

main11401-80814i2GRFE..GSV60201407-201412

sub11401-80826¥219,000

sub13011-31151¥17,800

sub13011-31161¥25,600

main11401-80826i2GRFE..GSV60¥219,000201412-201507

sub11401-80A45¥219,000

main11410-39125i2ARFXE..AVV60¥263,000201206-201405

sub11410-39126¥165,000

sub90250-06003¥90

main11410-39126i2ARFXE..AVV60¥165,000201405-201806

11401LSEAL, ENGINE REAR OIL

main90311-89006i2ARFXE..AVV60¥1,390201206-201309

sub90311-89013¥1,390

main90311-89013i2ARFXE..AVV60¥1,390201309-201408

sub90311-89015¥1,390

main90311-89015i2ARFXE..AVV60¥1,390201408-201507

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154i2GRFE..GSV60¥240201206-201507

main90910-02173i2ARFXE..AVV60¥240201206-201507

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFXE..AVV60¥140201206-201507

11420CRANKCASE ASSY, STIFFENING

main11420-36020i2ARFXE..AVV60¥33,500201206-201507

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRFE..GSV60¥50201206-201507

L=12,OD=4.0

main90250-06003i2ARFXE..AVV60¥90201206-201507

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i2ARFXE..AVV60¥120201206-201507

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFXE..AVV60¥90201206-201507

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i2ARFXE..AVV60¥1,700201206-201507

11452GUIDE, OIL LEVEL GAGE

main11452-31060i2GRFE..GSV60¥880201206-201507

main11452-36021i2ARFXE..AVV60¥2,070201206-201309

main11452-36050i2ARFXE..AVV60¥1,300201309-201507

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSV60¥140201206-201507

main96741-19010i2ARFXE..AVV60¥250201206-201507

12101PAN SUB-ASSY, OIL

main12101-31130i2GRFE..GSV60201206-201507

main12101-36040i2ARFXE..AVV60¥10,500201206-201507

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFE..GSV60¥160201206-201507

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFE..GSV60¥90201206-201507

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31070i2GRFE..GSV60¥6,000201206-201504

main12121-31120i2GRFE..GSV60¥3,220201504-201507

main12121-36030i2ARFXE..AVV60¥1,720201206-201507

13620BBALANCER ASSY, ENGINE

main13620-36011i2ARFXE..AVV60¥49,600201206-201211

sub13620-36020¥34,400

main13620-36020i2ARFXE..AVV60¥34,400201211-201412

main13620-36060i2ARFXE..AVV60¥31,300201501-201507

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31100i2GRFE..GSV60¥820201206-201507

main15301-36030i2ARFXE..AVV60¥1,200201206-201207

sub15301-36031¥1,000

main15301-36031i2ARFXE..AVV60¥1,000201207-201507

sub15301-36032¥750

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2ARFXE..AVV60¥140201206-201806

9010508056

main90105-08056¥130

9011906938

main90119-06938¥60

9012606015

main90126-06015¥110

9012608058

main90126-08058¥80

9017906326

main90179-06326¥60

9025006003

main90250-06003¥90

9025314003

main90253-14003¥140

9151281032

main91512-81032¥110

91551L0845

main91551-L0845¥100

9167180614

main91671-80614¥60

29 parts on this diagram · 4 diagrams in section
