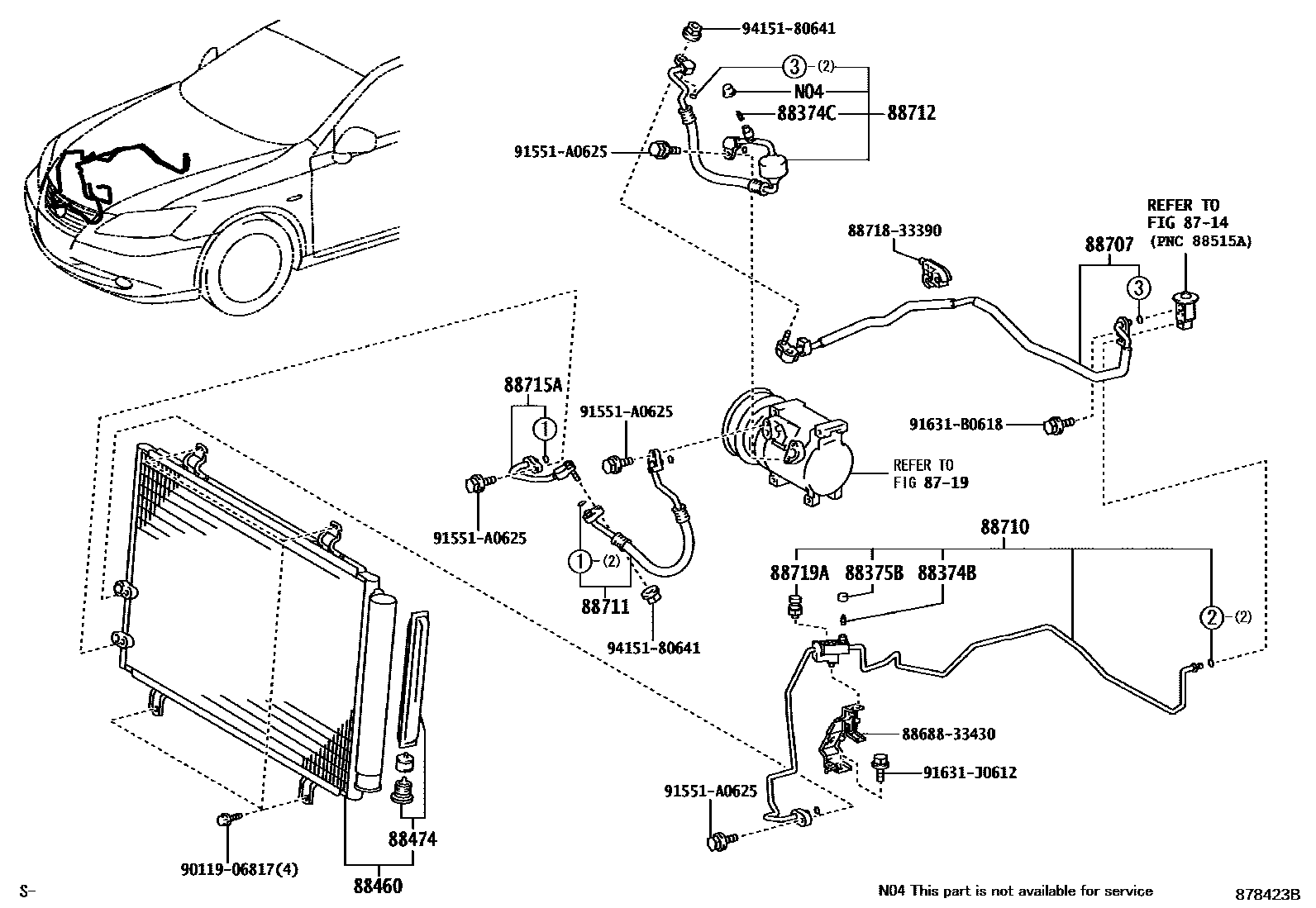

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGSV40200603-201206

88374CVALVE, SERVICE, NO.2

main88374-30010iGSV40200603-201206

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGSV40201106

88460CONDENSER ASSY, COOLER

main88460-33100iGSV40200603-201206

88474DRYER, COOLER

main88474-17010iGSV40200603-200908

88707PIPE SUB-ASSY, SUCTION

main88707-33010iGSV40200603-201105

main88707-33100iGSV40201106

88710TUBE ASSY, AIR CONDITIONER

main88710-33320iGSV40200603-201106

main88710-33420iGSV40201106

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33230iGSV40200603-200908

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-33270iGSV40200603-200908

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-33020iGSV40200603-200908

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGSV40200605-200908

main88719-40020iGSV40200603-200605

8868833430BRACKET, COOLER DIAPHRAGM

main88688-33430

8871833390PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33390

9011906817

main90119-06817

91551A0625

main91551-A0625

91631B0618

main91631-B0618

91631J0612

main91631-J0612

9415180641

main94151-80641

20 parts on this diagram · 2 diagrams in section
