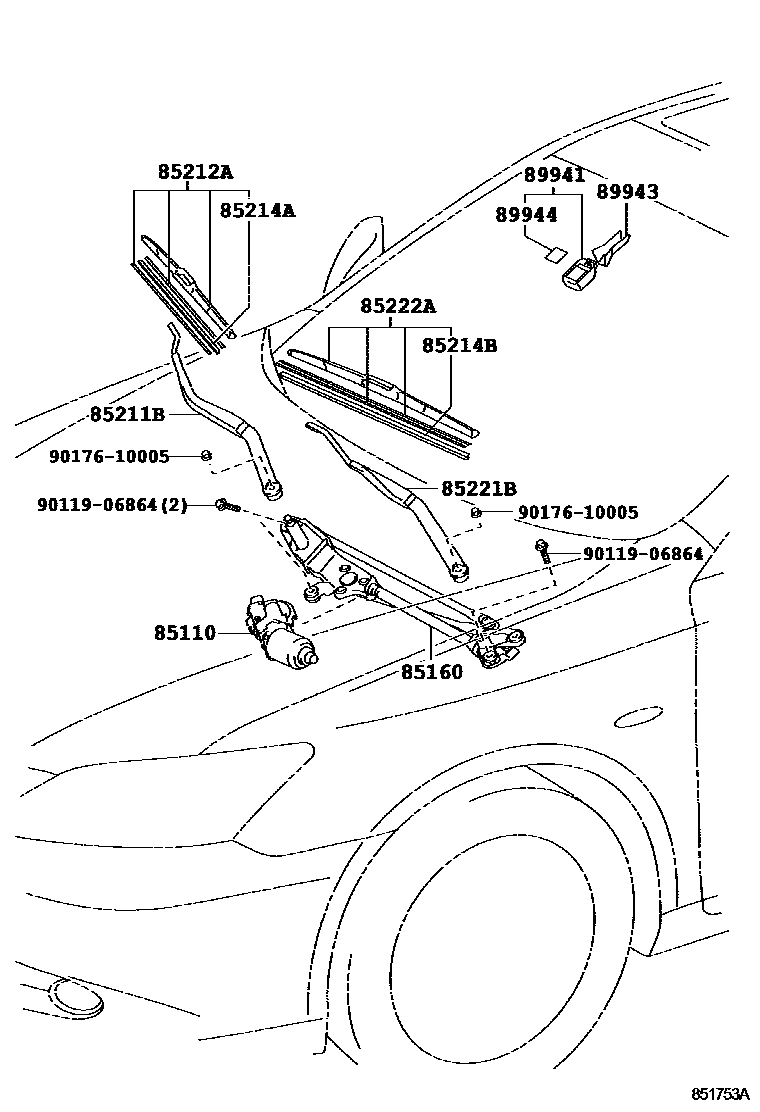

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33330iGSV40200603-200908

85160LINK ASSY, WINDSHIELD WIPER

main85150-33240iGSV40200603-200908

85211BARM, FRONT WIPER, RH

main85211-33300iGSV40200603-200908

85212ABLADE, FR WIPER, RH

main85212-33230iGSV40200603-200611

sub85212-33231

main85212-33231iGSV40200612-200908

85214ARUBBER, WIPER, RH

main85214-30390iGSV40200603-200908

85214BRUBBER, WIPER, LH

main85214-30380iGSV40200603-200908

85221BARM, FRONT WIPER, LH

main85221-33280iGSV40200603-200908

85222ABLADE, FR WIPER, LH

main85222-33240iGSV40200603-200611

sub85222-33241

main85222-33241iGSV40200612-200908

89941SENSOR, RAIN

main89941-42010iGSV40200908

BRAZIL SPEC&PREMIUM PLUS PACKAGE

89943COVER, RAIN SENSOR

main89943-33050iGSV40200908

BRAZIL SPEC&PREMIUM PLUS PACKAGE

89944TAPE, RAIN SENSOR

main89944-42010iGSV40200908

BRAZIL SPEC&PREMIUM PLUS PACKAGE

9011906864

main90119-06864

9017610005

main90176-10005

13 parts on this diagram · 1 diagram in section
