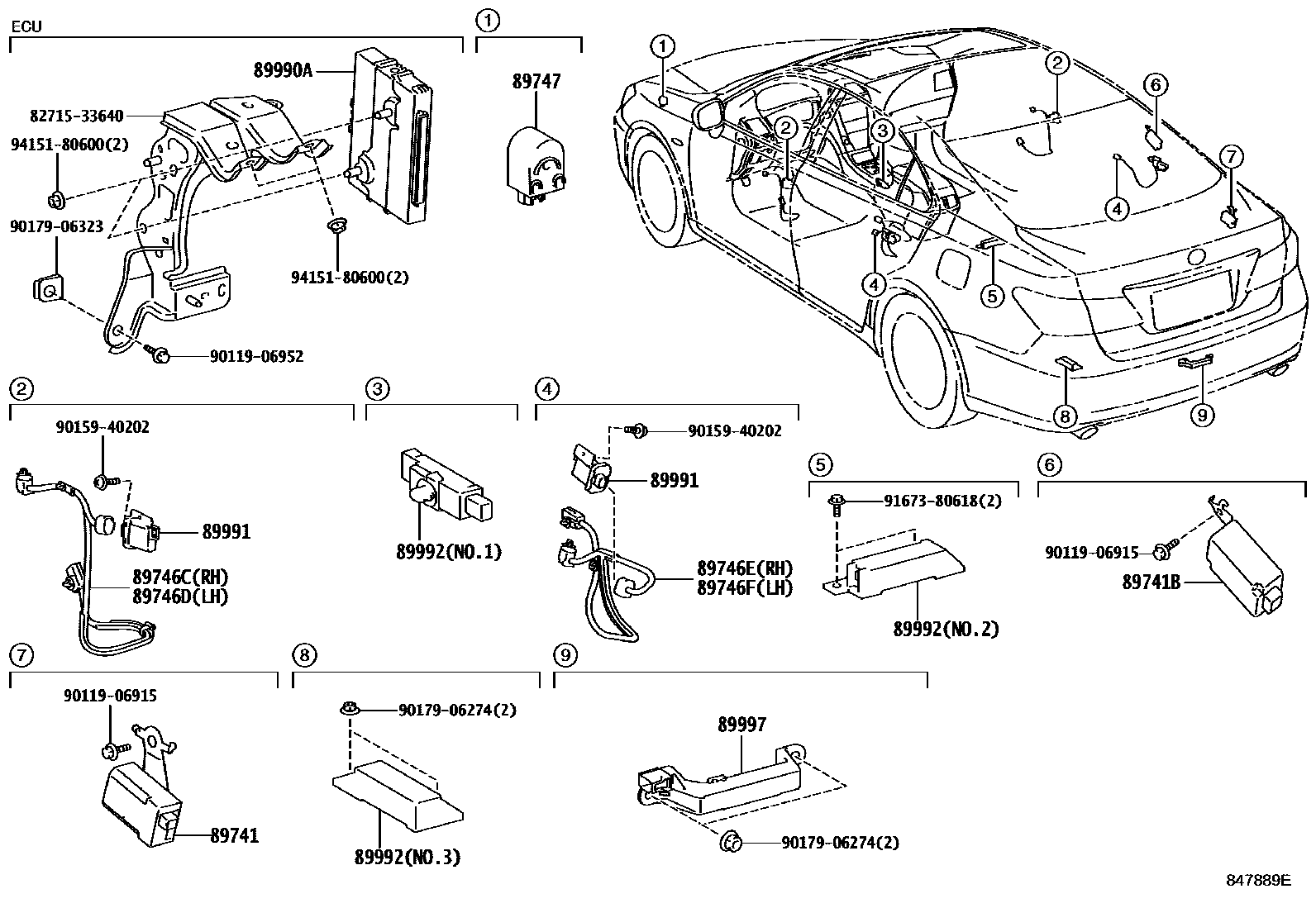

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-33040iGSV40200603-201005

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-33090iGSV40200603-200908

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-33040iGSV40200603-200908

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-33050iGSV40200603-200908

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-33060iGSV40200603-200908

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-33070iGSV40200603-200908

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iGSV40200603-200908

89990ACOMPUTER ASSY, SMART KEY

main89990-33050iGSV40200603-200604

sub89990-33051

main89990-33051iGSV40200605-200707

sub89990-33053

main89990-33052iGSV40200707-200808

sub89990-33B90

main89990-33110iGSV40200808-200902

sub89990-33111

main89990-33111iGSV40200903-200908

sub89990-33112

main89990-33160iGSV40200908-201003

sub89990-33161

main89990-33161iGSV40201004-201106

sub89990-33164

main89990-33162iGSV40201106-201107

sub89990-33163

main89990-33163iGSV40201108

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010iGSV40200603-201206

FRONT RH,REAR LH

main89991-33020iGSV40200603-201206

FRONT LH,REAR RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30090iGSV40200603-200908

NO.1

main89992-33030iGSV40200603-200908

NO.2

main89992-33050iGSV40200603-200908

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-30070iGSV40201106

main89997-41010iGSV40200603-201106

8271533640BRACKET,WIRING HARNESS CLAMP

main82715-33640

9011906915

main90119-06915

9011906952

main90119-06952

9015940202

main90159-40202

9017906274

main90179-06274

9017906323

main90179-06323

9167380618

main91673-80618

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
