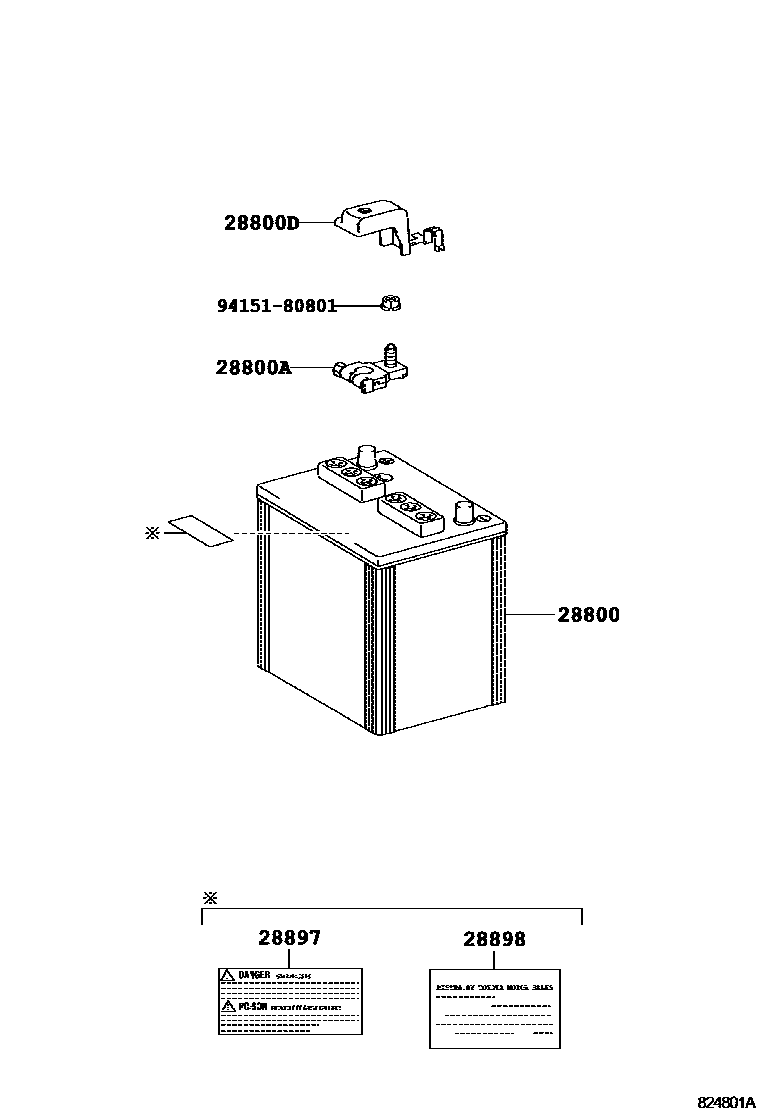

BATTERY & BATTERY CABLE

28800BATTERY

main28800-54020i2GRFE..GSV40200908

80D26L

sub28800-67102

main28800-64132i2GRFE..GSV40200603-200908

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2GRFE..GSV40200603-200908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2GRFE..GSV40200908

28897PLATE, BATTERY CAUTION

main28897-46020i2GRFE..GSV40200603-200908

CANADA SPEC

28898PLATE, BATTERY

main28898-20010i2GRFE..GSV40200603-200908

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
