REAR COMBINATION LAMP

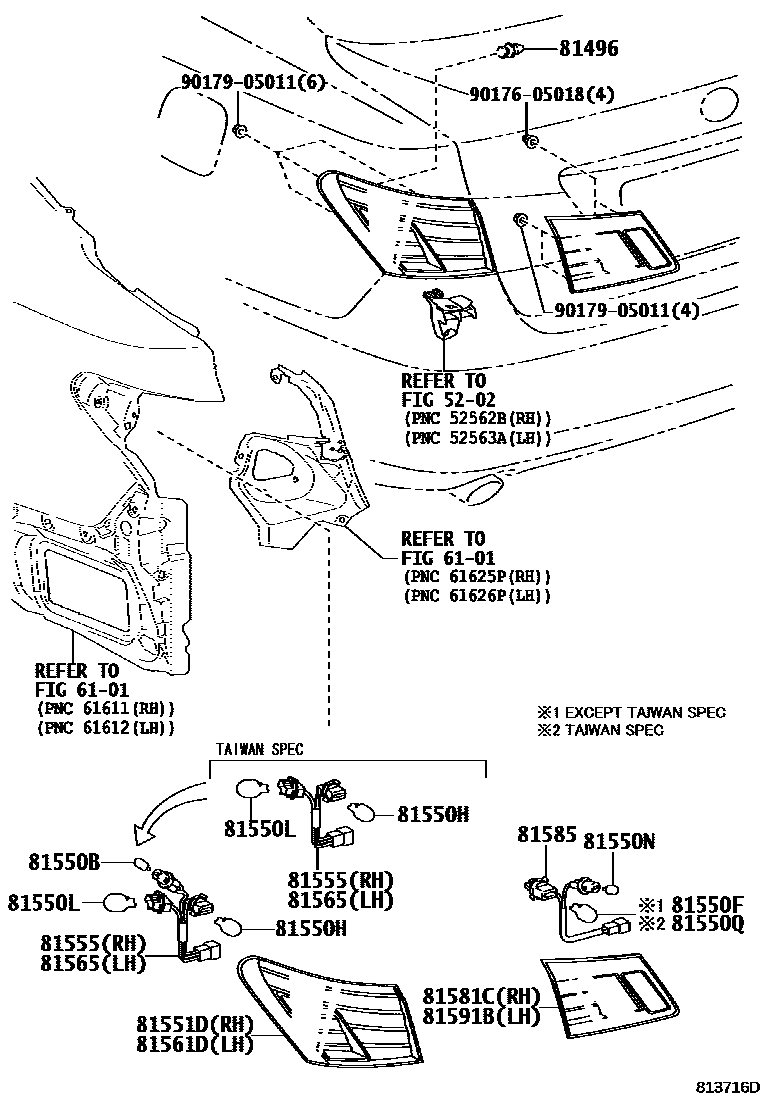

Parts diagram
5202
6101
81496GUIDE, REAR COMBINATION LAMP
main81496-28010i200603-200908
81550BBULB(FOR REAR COMBINATION LAMP)
main90981-11020i200603-200908
12V 3.8W
main99132-12050i200908
12V 5W
81550FBULB, TAILLAMP
main90981-13044i200603-200908
main99132-12050i200908
81550HBULB, TAIL & STOP LAMP
main90981-13044i200603-200908
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15021i200603-200908
81550NBULB, BACK UP LAMP
main90981-11059i200603-200908
81550QBULB, REAR FOG LAMP, NO.1
main90981-13043i200603-200707
TAIWAN SPEC
81551DLENS & BODY, REAR COMBINATION LAMP, RH
main81551-33470i200908
main81551-33500i200603-200908
main81551-33510i200603-200612
TAIWAN SPEC
sub81551-33511
main81551-33511i200701-200707
TAIWAN SPEC
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-33500i200603-200908
main81555-33510i200603-200707
TAIWAN SPEC
81561DLENS & BODY, REAR COMBINATION LAMP, LH
main81561-33410i200908
main81561-33500i200603-200908
main81561-33510i200603-200612
TAIWAN SPEC
sub81561-33511
main81561-33511i200701-200707
TAIWAN SPEC
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-33500i200603-200908
main81555-33510i200603-200707
TAIWAN SPEC
81581CLENS AND BODY, REAR LAMP, RH
main81581-33150i200603-200908
main81581-33160i200603-200612
TAIWAN SPEC
sub81581-33161
main81581-33161i200701-200707
TAIWAN SPEC
main81581-33190i200908
81585SOCKET & WIRE, REAR LAMP
main81585-33150i200603-200908
main81585-33160i200603-200707
TAIWAN SPEC
main81585-33190i200908
81591BLENS AND BODY, REAR LAMP, LH
main81591-33090i200908
main81591-33150i200603-200908
main81591-33160i200603-200612
TAIWAN SPEC
sub81591-33161
main81591-33161i200701-200707
TAIWAN SPEC
9017605018
main90176-05018
9017905011
main90179-05011

18 parts on this diagram · 1 diagram in section
