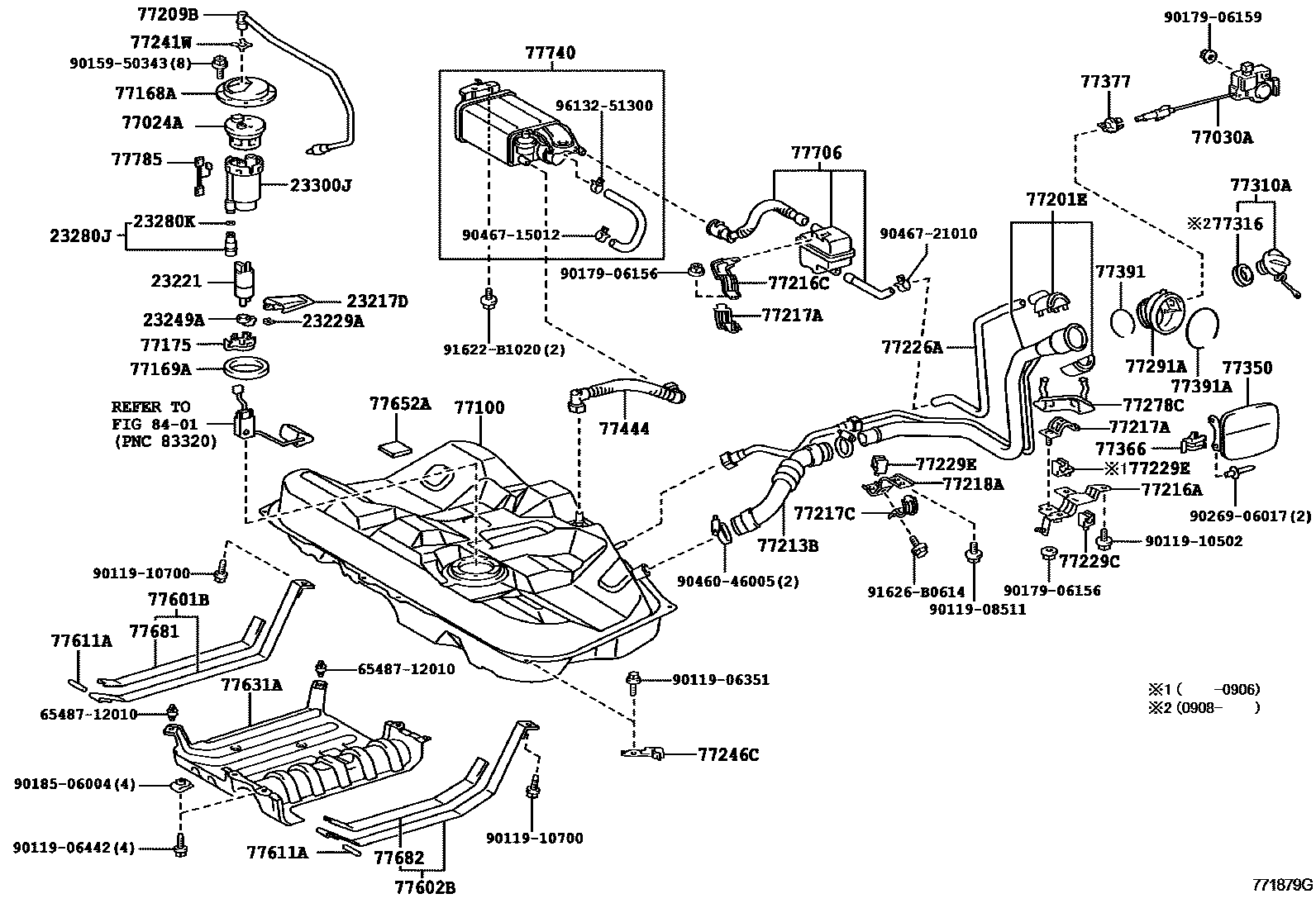

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77030ALOCK ASSY, FUEL LID W/MOTOR
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-33101
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216CSUPPORT, FUEL TANK FILLER PIPE NO.3
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77246CSUPPORT, FUEL MAIN TUBE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77611APIN (FOR FUEL TANK BAND)
77631APROTECTOR, FUEL TANK, LOWER CENTER
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77740CANISTER ASSY, CHARCOAL
77785HARNESS, FUEL PUMP
8401
6548712010CLIP, CORNER PROTECTOR
main65487-12010
9011906351
main90119-06351
9011906442
main90119-06442
9011908511
main90119-08511
9011910502
main90119-10502
9011910700
main90119-10700
9015950343
main90159-50343
9017906156
main90179-06156
9017906159
main90179-06159
9018506004
main90185-06004
9026906017
main90269-06017
9046046005
main90460-46005
9046715012
main90467-15012
9046721010
main90467-21010
91622B1020
main91622-B1020
91626B0614
main91626-B0614
9613251300
main96132-51300
64 parts on this diagram · 2 diagrams in section
