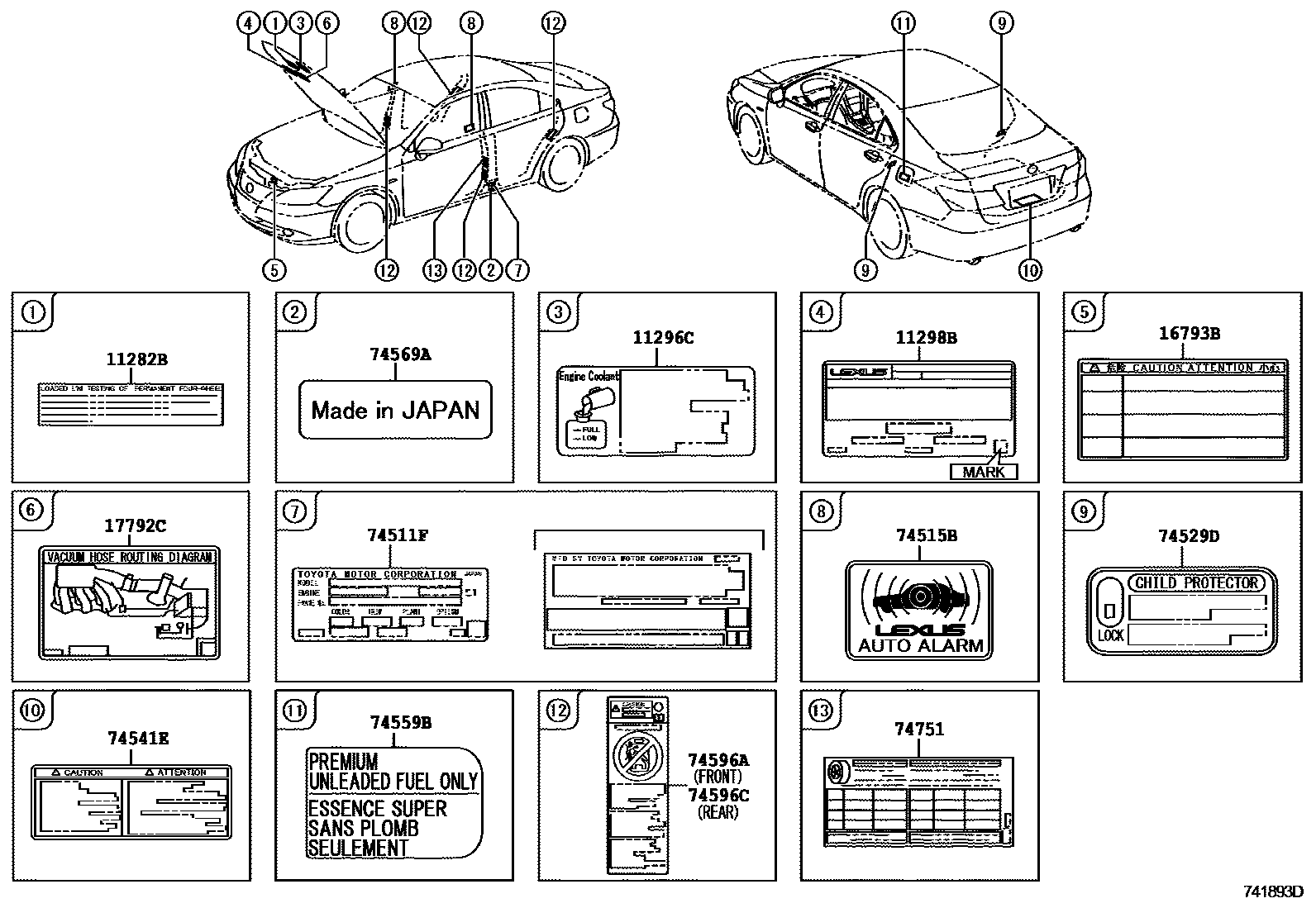

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

11282BLABEL, LOADED TESTING CAUTION

main11282-74010i2GRFE..GSV40200603-200908

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i2GRFE..GSV40200603-200612

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-31180i2GRFE..GSV40200603-200707

MARK 7E

main11298-31410i2GRFE..GSV40200707-200808

MARK C7

main11298-31750i2GRFE..GSV40200808-200908

MARK T4

main11298-31800i2GRFE..GSV40200908-201008

MARK BG

main11298-31B30i2GRFE..GSV40201008-201109

MARK FC

main11298-31C10i2GRFE..GSV40201109

MARK HD

16793BLABEL, COOLING FAN INFORMATION

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-31220i2GRFE..GSV40200603-200908

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300supersedes 74514-33010iGSV40200603-200908

*111,BRAZIL SPEC

main74514-33020supersedes 74514-33010iGSV40200603-200908

*111,CANADA SPEC

74515BPLATE, THEFT WARNING

main74515-30040×2iGSV40200603-200908

74529DPLATE, CHILD PROTECTOR LOCK CAUTION

main69339-12010×2iGSV40200603-200701

main69339-33030×2iGSV40201008

main69339-48010×2iGSV40200908-201007

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-14010iGSV40200603-200908

sub42668-28090

74559BLABEL, FUEL INFORMATION

main74559-20110supersedes 74559-20110iGSV40200908-201008

74569APLATE, VEHICLE INFORMATION

main74569-48010iGSV40201005

KOREA SPEC

74596ALABEL, SIDE AIRBAG CAUTION

main74596-53010×2iGSV40200908-201007

main74596-53011×2iGSV40201008

74596CLABEL, SIDE AIRBAG CAUTION, NO.2

main74596-53011×2iGSV40201008

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33632supersedes 42661-33700iGSV40200603-200908

SPARE TIRE-GROUND TIRE(ALUMINUM)

14 parts on this diagram · 2 diagrams in section
