E
EPC Data

FRONT SEAT & SEAT TRACK

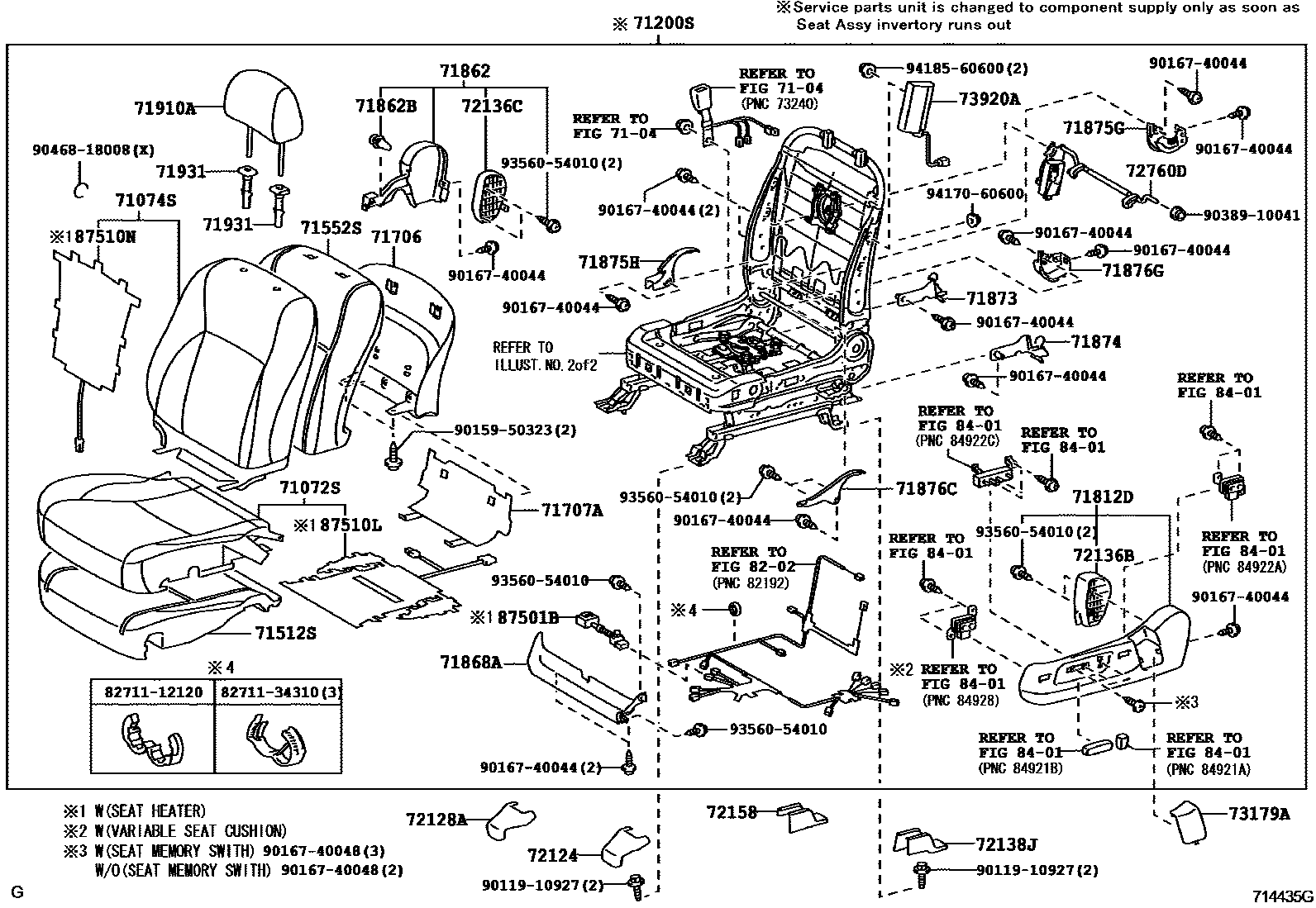

Parts diagram
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33B50-A0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),NEW IVORY,TRIM0#
main71072-33B50-B0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
main71072-33B50-C0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK,TRIM2#
main71072-33E80-A2i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),NEW IVORY,TRIM0#
main71072-33E80-B2i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),LT.GRAY,TRIM1#
main71072-33E80-C2supersedes 71072-33E70-C2i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),BLACK,TRIM2#
main71072-33E90-A0i200603-200707
TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),NEW IVORY,TRIM0#
main71072-33E90-B0i200603-200908
BRAZIL SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),LT.GRAY,TRIM1#
main71072-33E90-C0supersedes 71072-33E70-C2i200603-200908
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),BLACK,TRIM2#
main71072-33F00-A1i200603-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER)),IVORY,TRIM0#
main71072-33F00-B0i200603-200908
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LIGHT GRAY,TRIM1#
main71072-33F00-C1supersedes 71072-33E70-C2i200603-200908
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
main71072-33F10-A0i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),NEW IVORY,TRIM0#
main71072-33F10-B0i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
main71072-33F10-C0supersedes 71072-33E70-C2i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
main71072-33G20-A3supersedes 71072-33G40-A3i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP,IVORY,TRIM0#
main71072-33G20-B2supersedes 71072-33G40-B2i201008-201206
SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
main71072-33G20-C2supersedes 71072-33G40-C2i201008-201206
SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
main71072-33G30-A3supersedes 71072-33G40-A3i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0#
main71072-33G30-B2supersedes 71072-33G40-B2i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1#
main71072-33G30-C2supersedes 71072-33G40-C2i201008-201206
SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK,TRIM2#
main71072-33G50-A3supersedes 71072-33G40-A3i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
main71072-33G50-B2supersedes 71072-33G40-B2i201008-201206
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISIONBRAKE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6DVD-CH BLUETOOTH
main71072-33G50-C2supersedes 71072-33G40-C2i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM2#
main71072-33G60-A2supersedes 71072-33G40-A3i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,IVORY/ORCHID BRO
main71072-33G60-B2supersedes 71072-33G40-B2i201008-201206
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/DK.
main71072-33G60-C3supersedes 71072-33G40-C2i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,BLACK/SADDLE TAN
main71072-33L20-E0i201110-201203
CANADA SPEC&SPECIAL EDITION,SADDLE TAN,TRIM20
main71072-33L30-E0i201110-201203
CANADA SPEC&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
main71072-33L40-E0i201110-201203
SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-33G71-C2i200908-201008
BLACK,TRIM2#
sub71074-33M00
main71074-33G80-A1i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),NEW IVORY,TRIM0#
sub71074-33M20
main71074-33G80-B1i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),LT.GRAY,TRIM1#
sub71074-33M20
main71074-33G80-C1supersedes 71074-33G70-C2i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),BLACK,TRIM2#
sub71074-33M20
main71074-33G90-A1i200603-200908
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),NEW IVORY,TRIM0#
sub71074-33M30
main71074-33G90-B1i200603-200908
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),LT.GRAY,TRIM1#
sub71074-33M30
main71074-33G90-C1supersedes 71074-33G70-C2i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71074-33M30
main71074-33J00-A2i200603-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER)),IVORY,TRIM0#
sub71074-33M40
main71074-33J00-B1i200803-200908
SPECIAL EDITION&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LIGHT GRAY,TRIM1#
sub71074-33M40
main71074-33J00-C2supersedes 71074-33G70-C2i200603-200908
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71074-33M40
main71074-33J50-A0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),NEW IVORY,TRIM0#
sub71074-33M50
main71074-33J50-B0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
sub71074-33M50
main71074-33J50-C0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71074-33M50
main71074-33J81-A2i200908-201007
PREMIUM PACKAGE&*DRS(MEMORY),IVORY,TRIM0#
sub71074-33J82
main71074-33J81-B1i200908-201007
PREMIUM PACKAGE&*DRS(MEMORY),LT.GRAY/MEDIUM GRAY,TRIM1#
sub71074-33J82
main71074-33J81-C1supersedes 71074-33G70-C2i200908-201007
PREMIUM PACKAGE&*DRS(MEMORY),BLACK/MEDIUM GRAY,TRIM2#
sub71074-33J82
main71074-33J91-A2i200908-201008
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
main71074-33J91-B1i200908-201008
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),LT.GRAY,TRIM1#
main71074-33J91-C1supersedes 71074-33G70-C2i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
main71074-33J92-A2supersedes 71074-33J82-A2i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
main71074-33J92-B1supersedes 71074-33J82-B1i201008-201206
SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
main71074-33J92-C1supersedes 71074-33J82-C1i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM2#
main71074-33K01-A1i200908-201007
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER)),IVORY/ORCHID BROWN,TRIM0#
main71074-33K01-B1i200908-201007
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER)),LT.GRAY/MD.GRAY,TRIM1#
main71074-33K01-C2supersedes 71074-33G70-C2i200908-201007
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK/SADDLE TAN,TRIM2#
main71074-33K02-A1supersedes 71074-33J82-A2i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,IVORY,TRIM0#
main71074-33K02-B1supersedes 71074-33J82-B1i201008-201206
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LIGHT GRAY,
main71074-33K02-C2supersedes 71074-33J82-C1i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,BLACK/SADDLE TAN
main71074-33K21-A2i200908-201007
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),IVORY,TRIM0#
main71074-33K21-B1i200908-201007
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),LT.GRAY/MEDIUM GRAY,TRIM1#
main71074-33K21-C1supersedes 71074-33G70-C2i200908-201007
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK/MEDIUM GRAY,TRIM2#
main71074-33K22-A2supersedes 71074-33J82-A2i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0#
main71074-33K22-B1supersedes 71074-33J82-B1i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1#
main71074-33K22-C1supersedes 71074-33J82-C1i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,BLACK,TRIM2#
main71074-33N10-E0i201110-201203
CANADA SPEC&SPECIAL EDITION,SADDLE TAN,TRIM20
main71074-33N20-E0i201110-201203
CANADA SPEC&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
main71074-33N30-E0i201110-201203
SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
71200SSEAT ASSY, FRONT LH
main71020-33A10-E0i201110-201203
CANADA SPEC&SPECIAL EDITION,SADDLE TAN,TRIM20
main71020-33A20-E0i201110-201203
CANADA SPEC&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
main71020-33A30-E0i201110-201203
SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
main71200-33G10-A0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33X20
main71200-33G10-B0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
sub71200-33X20
main71200-33G10-C0i200808-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33X20
main71200-33J60-A3i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33X80
main71200-33J60-B3i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LIGHT GRAY,TRIM1#
sub71200-33X80
main71200-33J60-C3supersedes 71200-33J70-C5i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33X80
main71200-33J80-A4i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),IVORY,TRIM0#
sub71200-33X00
main71200-33J80-B4i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),LT.GRAY,TRIM1#
sub71200-33X00
main71200-33J80-C4supersedes 71200-33J70-C5i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),BLACK,TRIM2#
sub71200-33X00
main71200-33J90-A3i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33X10
main71200-33J90-B3i200603-200908
BRAZIL SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),LIGHT GRAY,TRIM1#
sub71200-33X10
main71200-33J90-C3supersedes 71200-33J70-C5i200603-200908
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),BLACK,TRIM2#
sub71200-33X10
main71200-33K00-A4i200603-200908
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33X30
main71200-33K00-B3i200603-200908
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LIGHT GRAY,TRIM1#
sub71200-33X30
main71200-33K00-C4supersedes 71200-33J70-C5i200803-200908
SPECIAL EDITION&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33X30
main71200-33K51-A1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33W50
main71200-33K51-B1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
sub71200-33W50
main71200-33K51-C1supersedes 71200-33J72-C1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33W50
main71200-33K53-A0supersedes 71200-33K73-A0i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP,IVORY,TRIM0#
sub71200-33K54
main71200-33K53-B0supersedes 71200-33K73-B0i201008-201206
SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
sub71200-33K54
main71200-33K53-C0supersedes 71200-33K73-C0i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM2#
sub71200-33K54
main71200-33K61-A1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33W40
main71200-33K61-B1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
sub71200-33W40
main71200-33K61-C1supersedes 71200-33J72-C1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY)&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33W40
main71200-33K63-A0supersedes 71200-33K73-A0i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,IVORY,TRIM0#
sub71200-33K64
main71200-33K63-B0supersedes 71200-33K73-B0i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY,TRIM1#
sub71200-33K64
main71200-33K63-C0supersedes 71200-33K73-C0i201008-201206
SEAT HEATER-WITH(HEATER (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33K64
main71200-33K71-A1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY),IVORY,TRIM0#
sub71200-33W30
main71200-33K71-B1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY),LT.GRAY,TRIM1#
sub71200-33W30
main71200-33K71-C1supersedes 71200-33J72-C1i200908-201008
PREMIUM PACKAGE&*DRS(MEMORY),BLACK,TRIM2#
sub71200-33W30
main71200-33L31-A1i200908-201008
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33L32
main71200-33L31-B1i200908-201008
BRAZIL SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),LT.GRAY,TRIM1#
sub71200-33L32
main71200-33L31-C1supersedes 71200-33J72-C1i200908-201008
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),BLACK,TRIM2#
sub71200-33L32
main71200-33M11-A1i200908-201008
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER)),IVORY,TRIM0#
sub71200-33M12
main71200-33M11-B1i200908-201008
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
sub71200-33M12
main71200-33M11-C1supersedes 71200-33J72-C1i200908-201008
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71200-33M12
main71200-33U81-A0supersedes 71200-33K73-A0i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
sub71200-33U82
main71200-33U81-B0supersedes 71200-33K73-B0i201008-201206
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISIONBRAKE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6DVD-CH BLUETOOTH
sub71200-33U82
main71200-33U81-C0supersedes 71200-33K73-C0i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP,BLACK,TRIM2#
sub71200-33U82
main71200-33U91-A0supersedes 71200-33K73-A0i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,IVORY,TRIM0#
sub71200-33U92
main71200-33U91-B0supersedes 71200-33K73-B0i201008-201206
USA POSSESSIONS SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&SEAT HEATER-WITH(HEATER+WIND (DRIV
sub71200-33U92
main71200-33U91-C0supersedes 71200-33K73-C0i201008-201206
USA POSSESSIONS SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)&SEAT HEATER-WITH(HEATER+WIND (DRIV
sub71200-33U92
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-33250i201008
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP
main71512-33260supersedes 71512-33240i201008
KOREA SPEC&PREMIUM PLUS PACKAGE&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-33180supersedes 71552-33170i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71706-33010-A0i200603-200908
IVORY,TRIM0#
main71706-33010-A1i200908-201206
IVORY,TRIM0#
main71706-33010-B0i200908-201206
LT.GRAY,TRIM10,11
main71706-33010-C0i200908-201206
BLACK,TRIM10,11,2#
71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD
main71707-33080-A0×2i200603-200908
IVORY,TRIM0#
sub71707-33082
main71707-33080-A1×2i200908-201008
IVORY,TRIM0#
sub71707-33082
main71707-33080-B0×2i200603-200908
LT.GRAY,TRIM1#
sub71707-33082
main71707-33080-C0×2i200603-200908
BLACK,TRIM2#
sub71707-33082
main71707-33081-A1×2i201008-201206
IVORY,TRIM0#
sub71707-33110
main71707-33081-B0×2i201008-201206
LT.GRAY,TRIM10,11
sub71707-33110
main71707-33081-C0×2i201008-201206
BLACK,TRIM10,11,2#
sub71707-33110
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-33280-B0i201008-201206
LT.GRAY,TRIM1#
main71812-33280-A0i200603-200908
PREMIUM PACKAGE&*DRS(MEMORY),IVORY,TRIM0#
main71812-33290-A0i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
main71812-33290-A1supersedes 71812-33280-A1i201008-201206
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-6DVD-CHANGER BLUETOOTH NAVI *MAR 14SP,IVORY,TRIM0#
main71812-33290-B0i201008-201206
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS 8SP,LT.GRAY,TRIM10,11
main71812-33290-C0supersedes 71812-33280-C0i201008-201206
HAWAII SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER)),BLACK,TRIM10,11,2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-33150-A1i201008-201206
IVORY,TRIM0#
main71862-33150-B0i201008-201206
LT.GRAY,TRIM1#
main71862-33150-C0i200908-201206
BLACK,TRIM2#
main71862-33150-A0i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
71862BCLIP(FOR FRONT SEAT SHIELD, LH)
main67921-50050-B0i200908-201206
LT.GRAY
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-33060-A1i201008-201206
IVORY,TRIM0#
main71868-33060-B0i201008-201206
LT.GRAY,TRIM1#
main71868-33060-C0i200908-201206
BLACK,TRIM2#
main71868-33060-A0i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71874-30020×2i201008-201206
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-30070
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-60140i200603-200908
71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-60170-A4i201008-201206
IVORY,TRIM0#
main71876-60170-B9i201008-201206
LT.GRAY,TRIM1#
main71876-60170-C0i200603-200908
BLACK,TRIM2#
main71876-60170-A1i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-A1i200603-200908
IVORY,TRIM0#
main71875-60150-A3i200908-201206
IVORY,TRIM0#
main71875-60150-B7i200908-201206
LT.GRAY,TRIM1#
main71875-60150-C0i200603-200908
BLACK,TRIM2#
71876CCOVER, RECLINING ADJUSTER INSIDE, LH
main71876-33050-A1i201008-201206
IVORY,TRIM0#
main71876-33050-B0i201008-201206
LT.GRAY,TRIM1#
main71876-33050-C0i200908-201206
BLACK,TRIM2#
main71876-33050-A0i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-60140i200908
71910AHEADREST ASSY, FRONT SEAT
main71910-33590-A0×2i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),NEW IVORY,TRIM0#
main71910-33590-B0×2i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LT.GRAY,TRIM1#
main71910-33590-C0×2supersedes 71910-33580-C1i200603-200908
PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
main71910-33600-A1×2i200603-200707
TAIWAN SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),IVORY,TRIM0#
sub71910-33603
main71910-33600-B0×2i200603-200908
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),LIGHT GRAY,TRIM1#
sub71910-33603
main71910-33600-C1×2supersedes 71910-33580-C1i200603-200908
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER)),BLACK,TRIM2#
sub71910-33603
main71910-33602-A3×2supersedes 71910-33592-A2i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,IVORY/ORCHID BRO
sub71910-33A70
main71910-33602-B2×2supersedes 71910-33592-B1i201008-201206
KOREA SPEC&ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH NAVI 8SP,LT.GRAY/DK.
sub71910-33A70
main71910-33602-C3×2supersedes 71910-33592-C1i201008-201206
ULTRA LUXURY PACKAGE&*DRP(MEMORY) & SRS AIR BAG(SIDE)&SEAT HEATER-WITH(HEATER+WIND(DRIVER & PASSENGER))&AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP,BLACK/SADDLE TAN
sub71910-33A70
main71910-33800-E0×2i201110-201203
SEAT HEATER-WITH(HEATER+WIND (DRIVER & PASSENGER))&SPECIAL EDITION,SADDLE TAN,TRIM20
sub71910-33801
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-A3×2i200603-200708
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-44020
main71930-42020-B2×2i200603-200708
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
sub71930-44020
main71930-42020-C0×2i200603-200708
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-44020
main71930-52030-A1×2i200709-200908
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-A3×2i200908-201206
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-B5×2i200908-201206
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
main71930-52030-C0×2i200908-201206
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71931-42020-A3×2i200603-200908
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-A6×2i200908-201206
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-B2×2i200908-201206
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
main71931-42020-C0×2i200603-200908
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-33010-A0i200603-200908
IVORY,TRIM0#
main72124-33010-B0i200603-200908
LT.GRAY,TRIM1#
main72124-33010-C0i200603-200908
BLACK,TRIM2#
main72124-33010-E0i200908-201206
CAMEL,TRIM0#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-33010-A0i200603-200908
IVORY,TRIM0#
main72128-33010-B0i200603-200908
LT.GRAY,TRIM1#
main72128-33010-C0i200603-200908
BLACK,TRIM2#
main72128-33010-E0i200908-201206
CAMEL,TRIM0#
72136SPACER, SEAT TRACK, LOWER NO.1
main72136-33090i200603-200908
72136BSPACER, SEAT TRACK, LOWER NO.3
main72136-33110i200908
72136CSPACER, SEAT TRACK, LOWER NO.4
main72136-33120i200908
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-33080-A0i200603-200908
IVORY,TRIM0#
main72138-33080-B0i200603-200908
LT.GRAY,TRIM1#
main72138-33080-C0i200908-201206
BLACK,TRIM1#,2#
main72138-33080-E0i200908-201206
CAMEL,TRIM0#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-33130-A0i200603-200908
IVORY,TRIM0#
main72158-33130-B0i200603-200908
LT.GRAY,TRIM1#
main72158-33130-C0i200908-201206
BLACK,TRIM1#,2#
main72158-33130-E0i200908-201206
CAMEL,TRIM0#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-30170i200603-200908
73179ACAP, SEAT BELT ANCHOR COVER, LH
main73179-33010-A0i200603-200908
IVORY,TRIM0#
main73179-33010-A1i200908-201206
IVORY,TRIM0#
main73179-33010-B0i200603-200908
LT.GRAY,TRIM1#
main73179-33010-C0i200603-200908
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-33020i200908-201206
8202
8401
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-60010i200603-200707
TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))
main87501-60060i201203
KOREA SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))&AUDIO-AM/FM 6CD-CHANGER 8SP
sub87501-48020
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-33170i200603-200707
TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-33030i200603-200707
TAIWAN SPEC&PREMIUM PLUS PACKAGE&*DRP(MEMORY)&SEAT HEATER-WITH(HEATER+WIND (DRIVER& PASSENGER))
8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12120
8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34310
9011910927
main90119-10927
9015950323
main90159-50323
9016740044
main90167-40044
9016740048
main90167-40048
9038910041
main90389-10041
9046818008
main90468-18008
9356054010
main93560-54010
9417060600
main94170-60600
9418560600
main94185-60600

47 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
