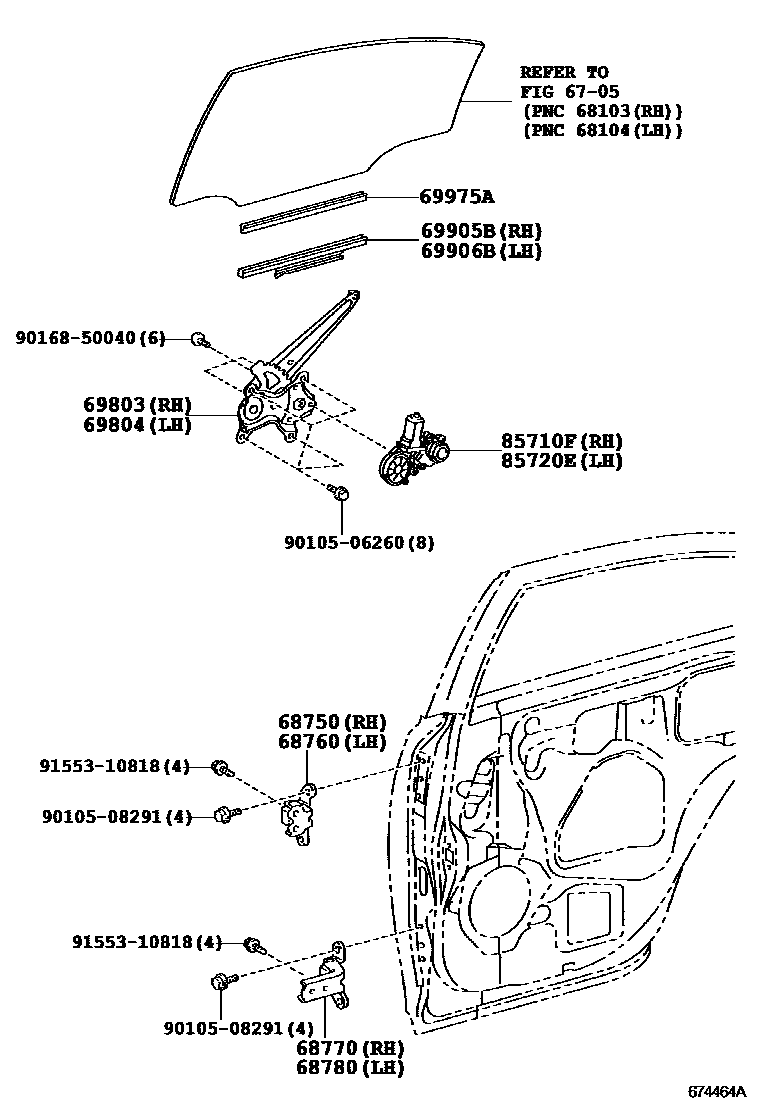

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iGSV40200603-200609

sub68750-20121

main68750-20121iGSV40200610-201205

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iGSV40200603-200609

sub68760-20121

main68760-20121iGSV40200610-201205

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iGSV40200603-200609

sub68770-52031

main68770-52031iGSV40200610-200908

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iGSV40200603-200609

sub68780-52031

main68780-52031iGSV40200610-200908

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12180iGSV40200603-200908

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12180iGSV40200603-200908

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iGSV40200603-201206

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iGSV40200603-201206

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60040iGSV40200603-201206

sub69975-22030

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-33220iGSV40200603-200708

sub85720-33221

main85720-33221iGSV40200709-200908

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-33210iGSV40200603-200708

sub85710-33211

main85710-33211iGSV40200709-200908

9010506260

main90105-06260

9010508291

main90105-08291

9016850040

main90168-50040

9155310818

main91553-10818

16 parts on this diagram · 1 diagram in section
