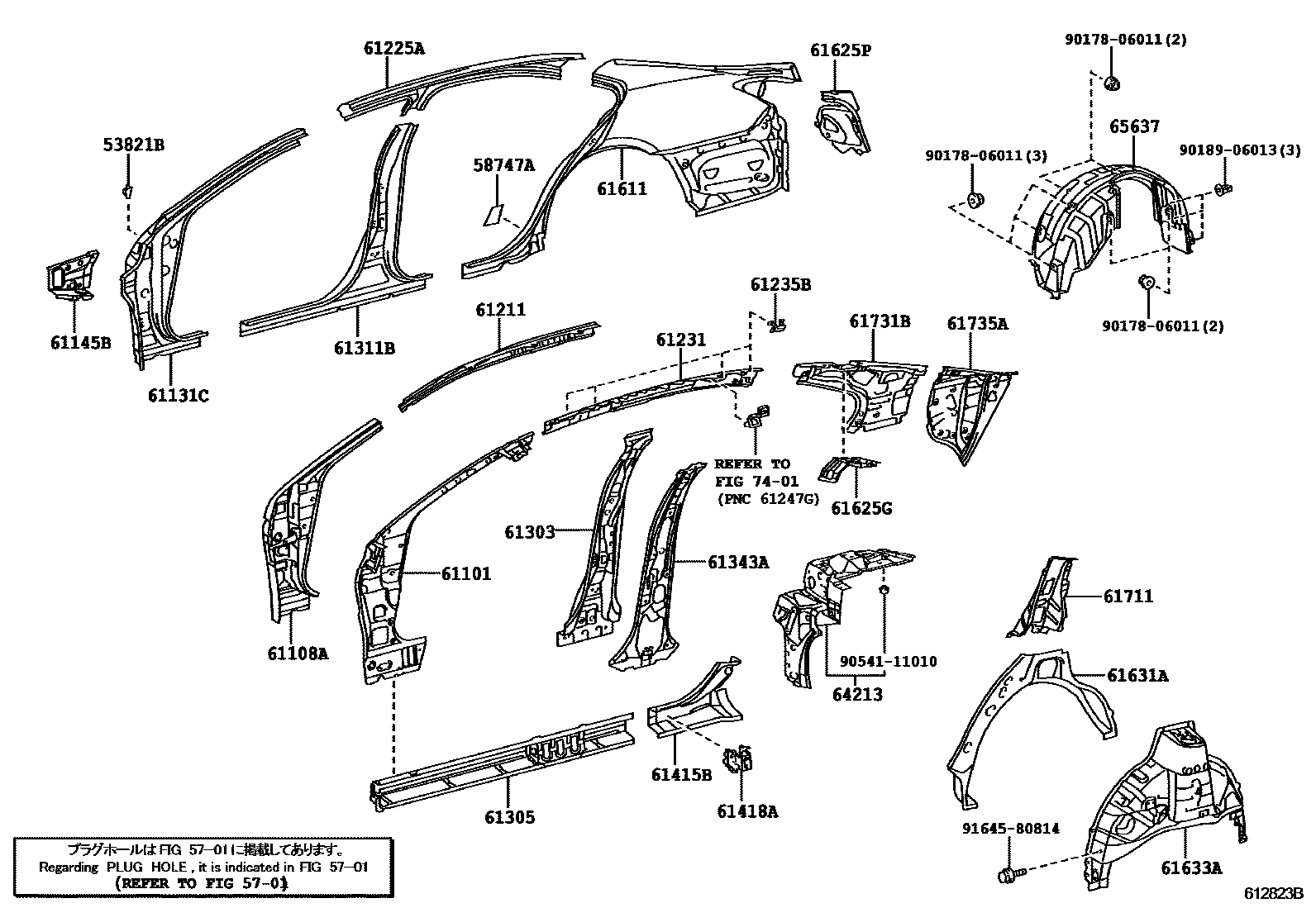

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701
58747APROTECTOR, QUARTER PANEL, REAR RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61211RAIL, ROOF SIDE, OUTER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61231RAIL, ROOF SIDE, INNER RH
61235BBRACKET, ASSIST GRIP
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61343APILLAR, CENTER BODY, INNER RH
61415BEXTENSION, ROCKER, OUTER RH
61418AREINFORCEMENT, ROCKER PANEL, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61625PPANEL, REAR BODY REAR SIDE CORNER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
64213EXTENSION, PACKAGE TRAY STRAINER, RH
65637LINER, REAR WHEEL HOUSE, RH
7401
9017806011
main90178-06011
9018906013
main90189-06013
9054111010
main90541-11010
9164580814
main91645-80814
32 parts on this diagram · 2 diagrams in section
