MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM1#,2#
CAMEL,TRIM0#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58523DCLIP(FOR FLOOR CARPET SET BRACKET)
58543BBRACKET, FLOOR CARPET, RH
58544ABRACKET, FLOOR CARPET, LH
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58571FPAD, FRONT FLOOR, FRONT
58572QPAD, FRONT FLOOR, FRONT NO.2
9046710161

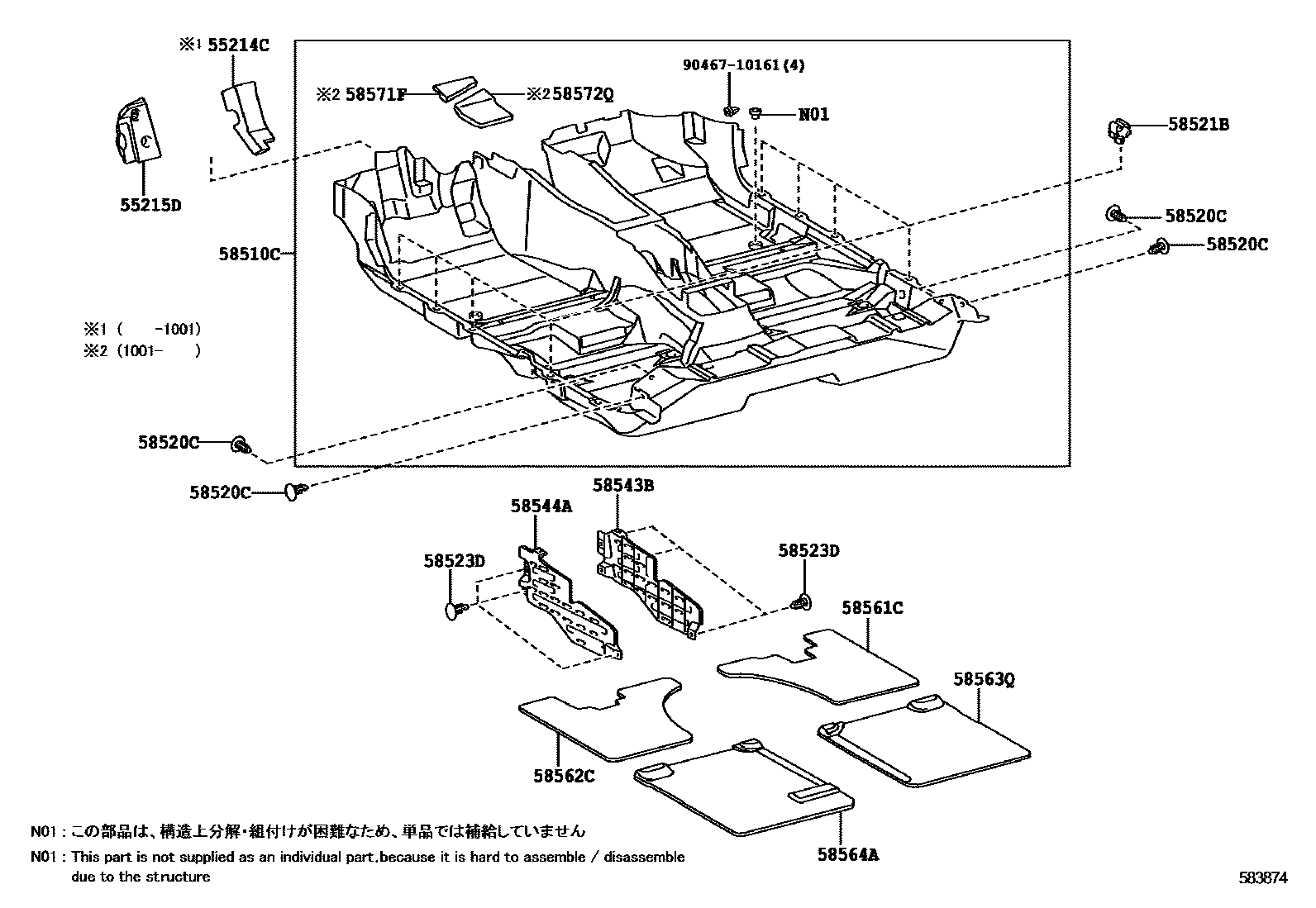

15 parts on this diagram · 1 diagram in section
