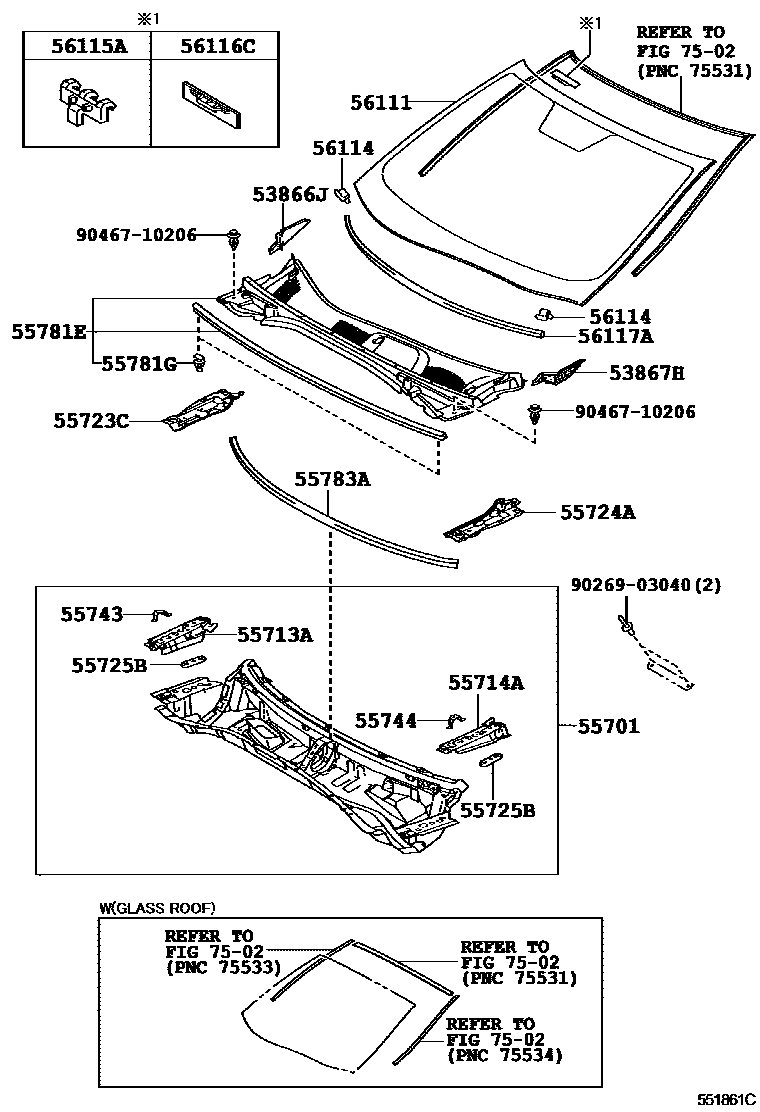

COWL PANEL & WINDSHIELD GLASS
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55723CREINFORCEMENT, COWL TOP SIDE, RH
55724AREINFORCEMENT, COWL TOP SIDE, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
*LAM,T=4.76,GREEN,BRAZIL SPEC&PREMIUM PLUS PACKAGE
*LAM,T=4.76,GREEN
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
7502
9026903040
main90269-03040
9046710206
main90467-10206
21 parts on this diagram · 1 diagram in section
