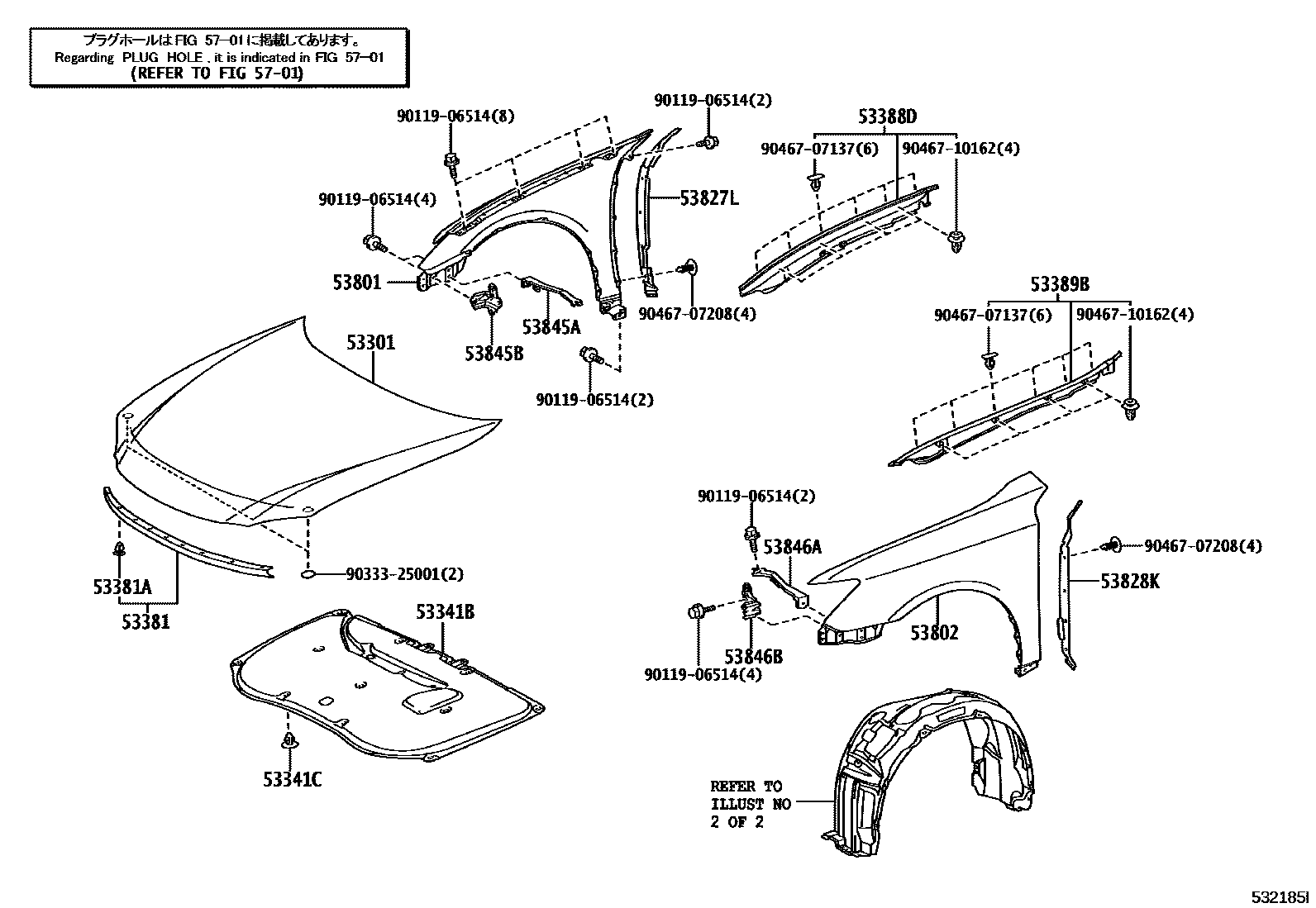

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-33140iGSV40201008-201206

main53301-33150iGSV40200603-201008

sub53301-33140

53341BINSULATOR, HOOD

main53341-33160iGSV40200603-200908

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGSV40200603-200908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33090iGSV40200603-200908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGSV40200603-200908

53388DSEAL, HOOD TO FRONT FENDER, RH

main53805-33020iGSV40200603-200909

sub53805-33021

main53805-33021iGSV40200909

53389BSEAL, HOOD TO FRONT FENDER, LH

main53806-33010iGSV40200603-200909

sub53806-33011

main53806-33011iGSV40200909

53801FENDER SUB-ASSY, FRONT RH

main53811-33180iGSV40201008-201206

main53811-33200iGSV40200603-201008

sub53811-33180

53802FENDER SUB-ASSY, FRONT LH

main53812-33180iGSV40201008-201206

main53812-33200iGSV40200603-201008

sub53812-33180

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-33060iGSV40200603-200908

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33060iGSV40200603-200908

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33080iGSV40200603-200908

53845BEXTENSION, FRONT WHEEL OPENING, NO.1 RH

main53847-33010iGSV40200603-200908

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33070iGSV40200603-200908

53846BEXTENSION, FRONT WHEEL OPENING, NO.1 LH

main53848-33010iGSV40200603-200908

5701

9011906514

main90119-06514

9033325001

main90333-25001

9046707137

main90467-07137

9046707208

main90467-07208

9046710162

main90467-10162

21 parts on this diagram · 2 diagrams in section
