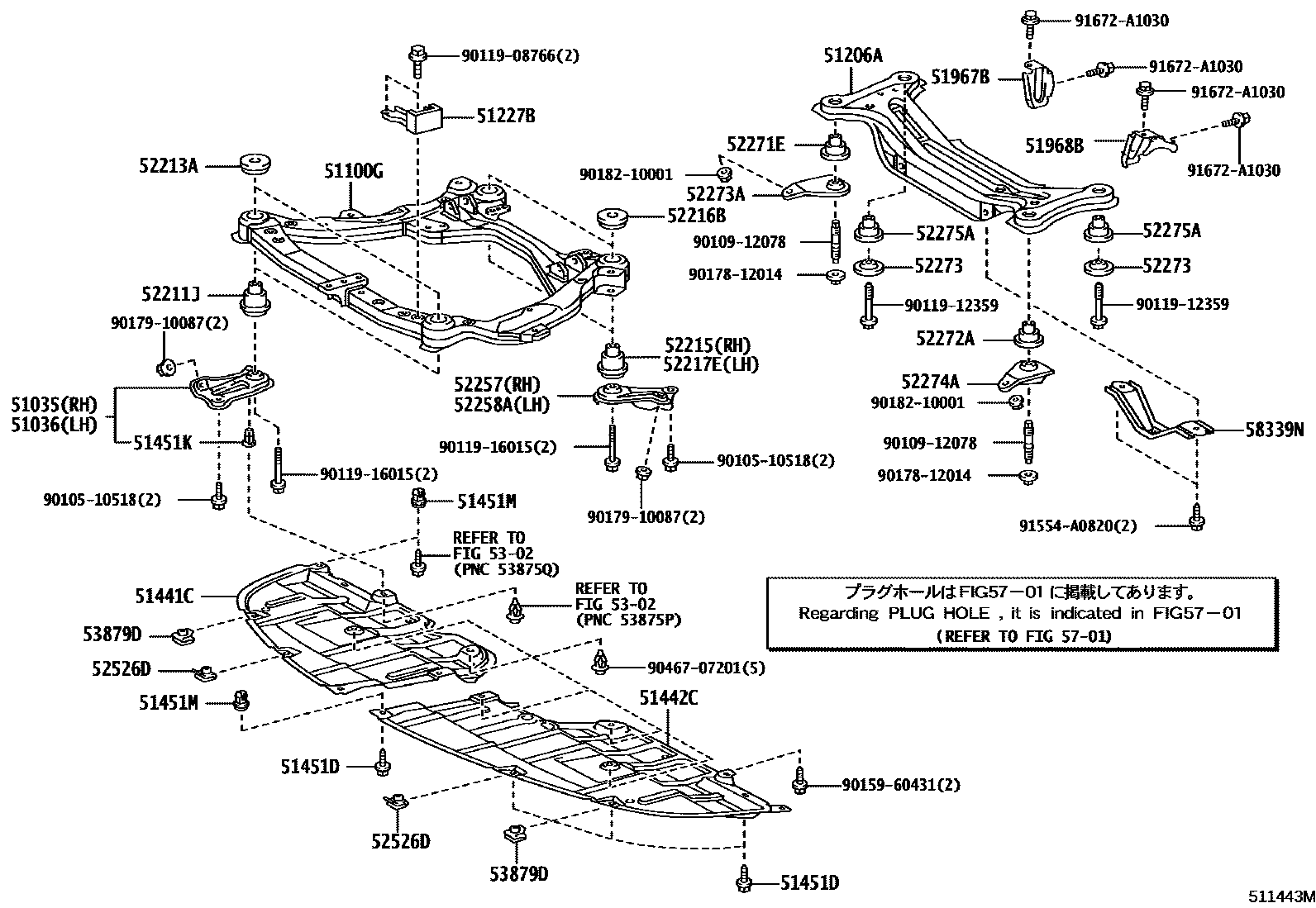

SUSPENSION CROSSMEMBER & UNDER COVER

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-33030iGSV40¥4,060200603-200908

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-33030iGSV40¥4,060200603-200908

51100GFRAME ASSY, FRONT

main51100-33070iGSV40¥86,900200603-201206

sub51100-33073¥86,900

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-33090iGSV40200603-201004

sub51206-33091

main51206-33091iGSV40201005

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33110iGSV40¥4,980200603-200908

51441CCOVER, ENGINE UNDER, RH

main51441-33090iGSV40¥10,600200603-200908

main51441-33120iGSV40200908

51442CCOVER, ENGINE UNDER, LH

main51442-33090iGSV40¥12,300200603-200908

main51442-33120iGSV40200908

51451DSCREW, NO.1

main90159-60477iGSV40¥70200603-201206

51451KGROMMET, SCREW, NO.1

main90189-06065iGSV40¥80200603-201206

51451MGROMMET, SCREW, NO.2

main90189-06193iGSV40¥80200603-201206

51967BHOOK, TRANSPORT, REAR RH

main51967-33030iGSV40¥2,690200603-200908

51968BHOOK, TRANSPORT, REAR LH

main51968-33020iGSV40¥2,710200603-200908

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33080iGSV40¥4,110200603-200908

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-33080iGSV40¥1,750200603-200908

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33090iGSV40¥6,200200603-200908

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-33070iGSV40¥2,110200603-200908

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33020iGSV40¥5,700200603-200908

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-33060iGSV40¥3,270200603-200908

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-33070iGSV40¥3,270200603-200908

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-33050iGSV40¥2,780200603-201105

main52271-33051iGSV40¥2,780201106

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-33050iGSV40¥2,460200603-201105

main52272-33051iGSV40¥2,460201106

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iGSV40¥690200603-200908

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-33030iGSV40¥3,150200603-200908

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-33030iGSV40¥3,150200603-200908

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iGSV40¥2,460200603-201105

main52275-33051iGSV40¥2,460201106

52526DRETAINER, FRONT BUMPER, LOWER

main52526-53020iGSV40¥110200603-201206

5302

53879DRETAINER, FRONT FENDER LINER

main52526-53020iGSV40¥110200603-200908

main53879-20030iGSV40¥310200908-201206

5701

58339NBRACKET, JACK UP

main58339-33020iGSV40200603-201009

sub58339-33021¥2,370

main58339-33021iGSV40¥2,370201010

9010510518

main90105-10518¥140

9010912078

main90109-12078¥330

9011908766

main90119-08766¥160

9011912359

main90119-12359¥410

9011916015

main90119-16015¥600

9015960431

main90159-60431¥70

9017812014

main90178-12014¥160

9017910087

main90179-10087¥110

9018210001

main90182-10001¥220

9046707201

main90467-07201¥100

91554A0820

main91554-A0820¥80

91672A1030

main91672-A1030¥120

42 parts on this diagram · 1 diagram in section
