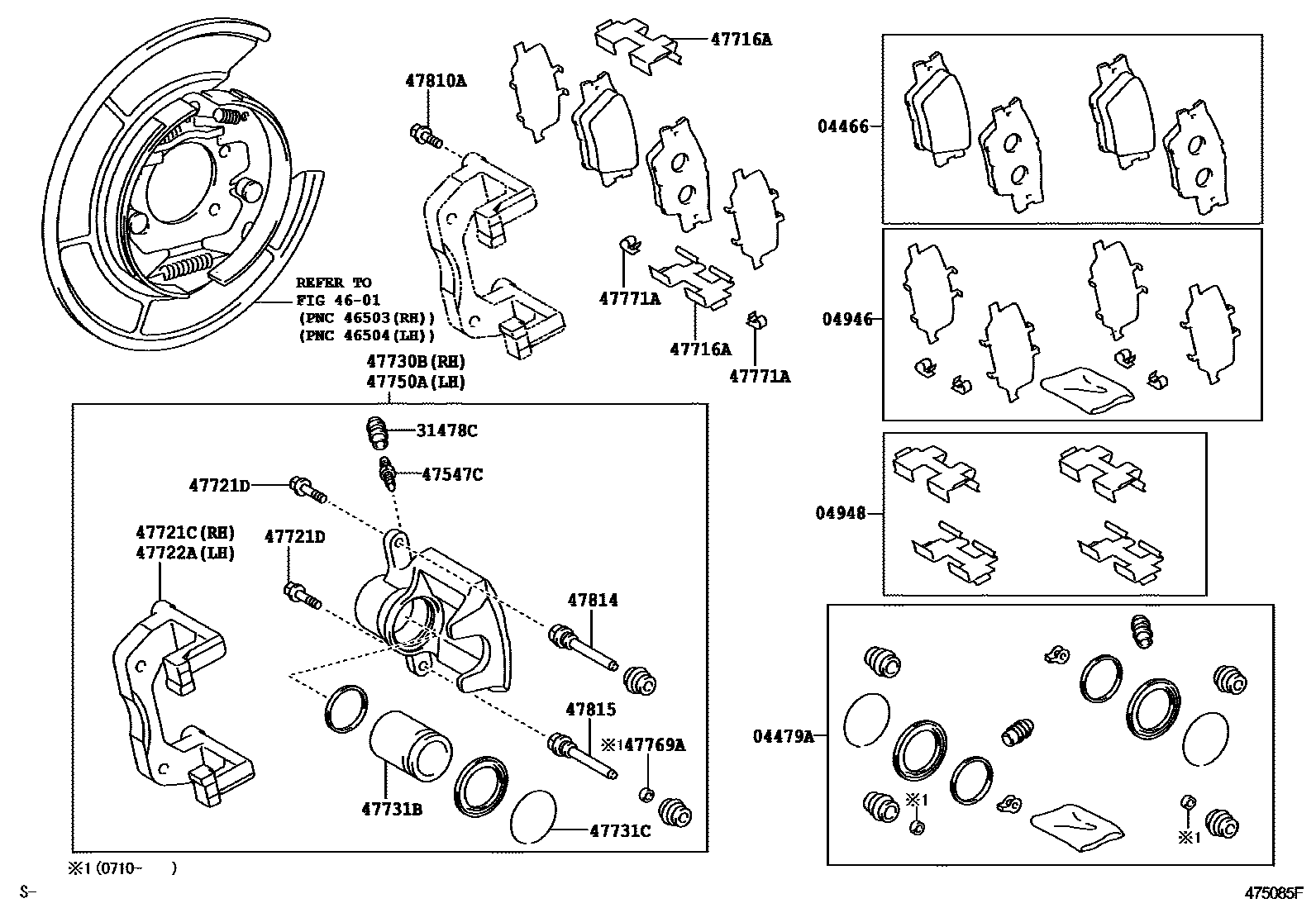

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33160iGSV40200603-200710

MARK NBK D6234

sub04466-33180

main04466-33180iGSV40200710-200908

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33240iGSV40200603-200710

main04479-33290iGSV40200710-201109

main04479-33350iGSV40201109

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33040iGSV40200603-201112

sub04946-33060

main04946-33060iGSV40201201-201205

04948FITTING KIT, DISC BRAKE, REAR

main04948-33030iGSV40200603-200710

sub04948-33040

main04948-33040iGSV40200710-200908

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iGSV40200603-200908

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGSV40200603-200908

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-33210iGSV40200603-200710

sub47816-33211

main47816-33211iGSV40200710-200908

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-33210iGSV40200603-200710

sub47821-33211

sub47814-33211

sub47879-33211

main47821-33211iGSV40200710-201009

sub47821-33240

main47821-33240iGSV40201009-201109

main47821-33241iGSV40201109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164iGSV40200603-200908

*8-1.00PX23-15

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-33210iGSV40200603-200710

sub47822-33211

sub47814-33211

sub47879-33211

main47822-33211iGSV40200710-201009

sub47822-33240

main47822-33240iGSV40201009-201109

main47822-33241iGSV40201109

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-33210iGSV40200603-200710

sub47830-33211

main47830-33211iGSV40200710-201109

main47830-33240iGSV40201109

47731BPISTON, REAR DISC BRAKE

main47831-33210iGSV40200603-200908

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iGSV40200603-200908

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33210iGSV40200603-200710

sub47850-33211

main47850-33211iGSV40200710-201109

main47850-33240iGSV40201109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33211iGSV40200710-201109

main47879-33240iGSV40201109

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-32030iGSV40200603-201201

main47771-72010iGSV40201201-201205

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iGSV40200603-201206

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33210iGSV40200603-201109

main47814-33240iGSV40201109

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47814-33210iGSV40200603-200710

main47814-33211iGSV40200710-201109

main47815-33240iGSV40201109

20 parts on this diagram · 1 diagram in section
