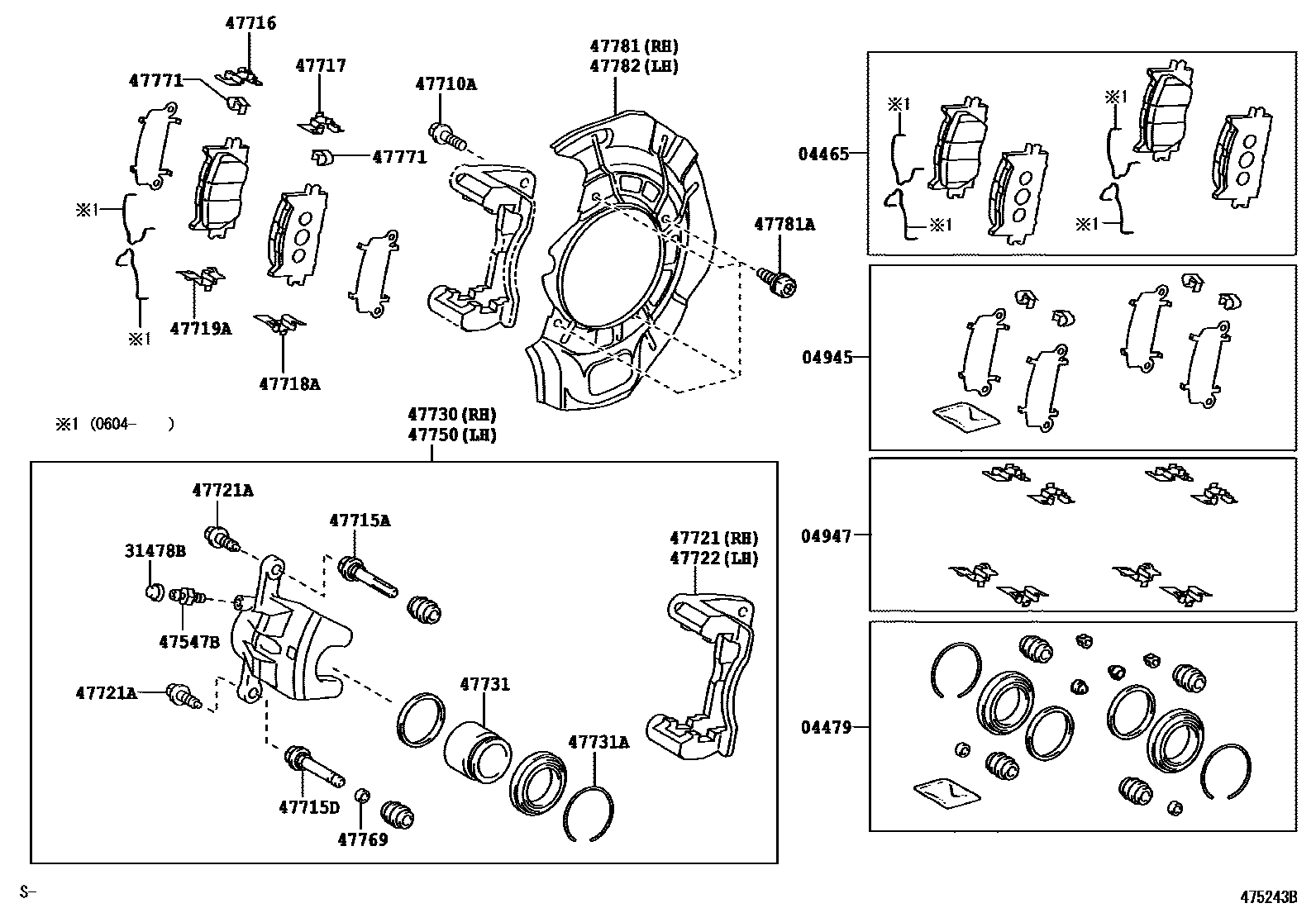

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33440iGSV40¥13,400200603-200604

MARK NBK PN562H

sub04465-33450¥11,600

main04465-33450iGSV40¥11,600200604-200901

MARK NBK PN562H

main04465-33470iGSV40200901-201109

MARK NBK D6911H

sub04465-33471¥10,500

main04465-33471iGSV40¥10,500201109

MARK NBK D6911H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iGSV40¥1,800200603-201109

main04478-58010iGSV40¥2,200201109

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33260iGSV40¥1,660200603-200908

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33220iGSV40¥3,330200603-200606

sub04947-33240¥2,750

main04947-33240iGSV40¥2,750200606-200908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGSV40¥160200603-200908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iGSV40¥200200603-200908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iGSV40¥160200603-201206

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-33361iGSV40¥620201109

main47715-52190iGSV40¥360200603-201109

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340iGSV40¥490200603-200908

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33340iGSV40¥260200603-200606

main47718-33340iGSV40¥360200606-200908

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-33340iGSV40¥260200603-200606

main47719-33340iGSV40¥360200606-200908

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-33340iGSV40¥360200603-200908

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-33340iGSV40¥360200603-200908

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33340iGSV40¥8,400200603-201109

main47721-33361iGSV40¥8,500201109

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iGSV40¥90200603-200908

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-33340iGSV40¥8,400200603-201109

main47722-33361iGSV40¥8,500201109

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33340iGSV40¥47,200200603-201109

main47730-33361iGSV40¥39,400201109

47731PISTON, FRONT DISC BRAKE

main47731-33340iGSV40¥2,680200603-200908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-76002iGSV40¥210200603-200908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33340iGSV40¥47,200200603-201109

main47750-33361iGSV40¥39,400201109

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGSV40¥50200603-200908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-53060iGSV40¥200200603-200908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-33040iGSV40¥1,980200603-201206

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iGSV40¥90200603-201206

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-33040iGSV40¥1,980200603-201206

25 parts on this diagram · 1 diagram in section
