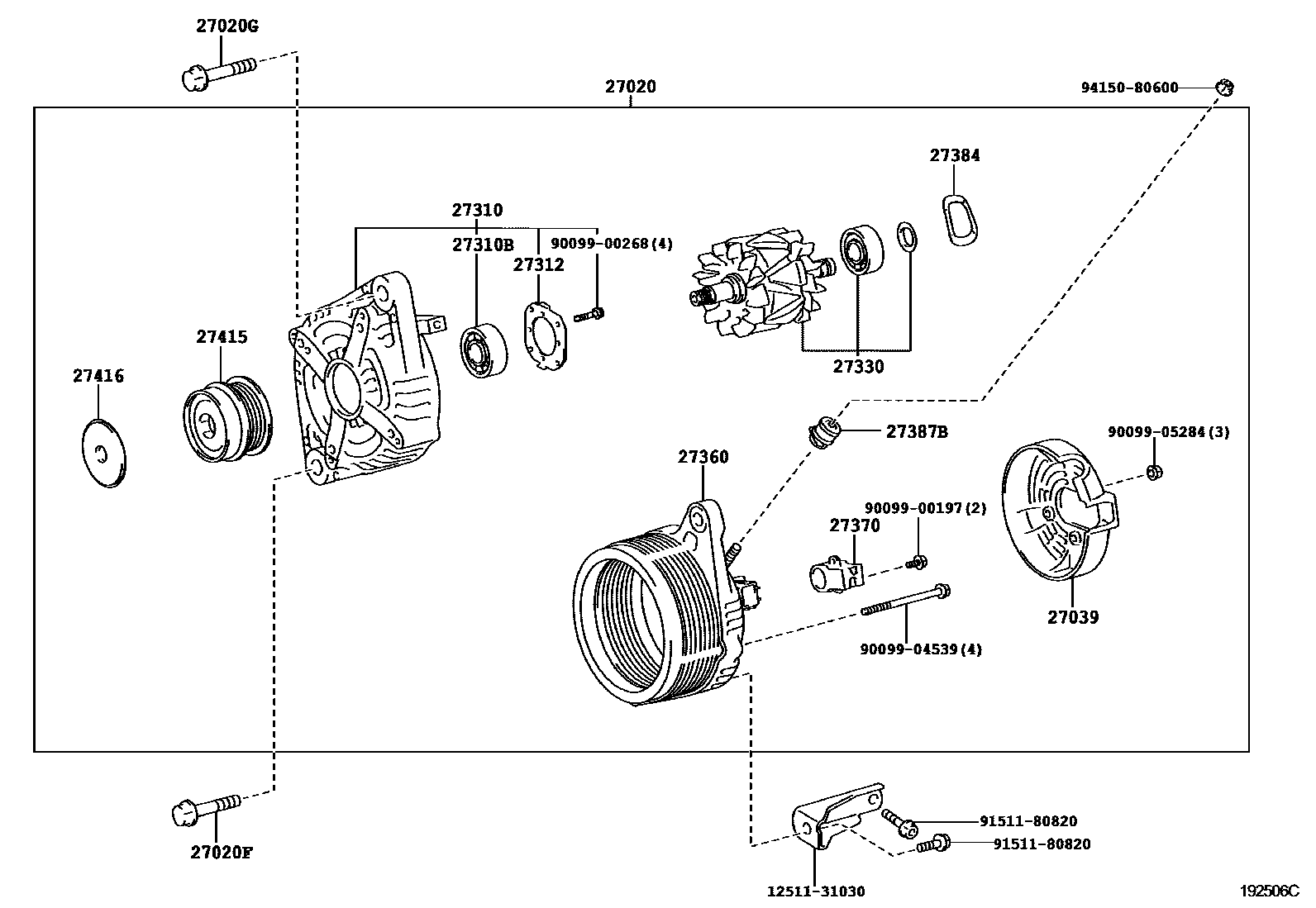

ALTERNATOR

27020ALTERNATOR ASSY

main27060-31110i2GRFE..GSV40200603-200706

12V 130A

sub27060-31111

main27060-31111i2GRFE..GSV40200707-200908

12V 130A

sub27060-31112

main27060-31112i2GRFE..GSV40200908

12V 130A

27020FBOLT, NO.1(FOR ALTERNATOR)

main91552-81040i2GRFE..GSV40200603-201206

27020GBOLT, NO.2(FOR ALTERNATOR)

main91552-81070i2GRFE..GSV40200603-200908

27039COVER, ALTERNATOR REAR END

main27039-27060i2GRFE..GSV40200603-200902

main27039-31390i2GRFE..GSV40200902-200908

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31290i2GRFE..GSV40200603-200908

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2GRFE..GSV40200603-200611

sub90099-10223

main90099-10223i2GRFE..GSV40200612-200908

27312PLATE, RETAINER

main27312-72100i2GRFE..GSV40200603-200908

27330ROTOR ASSY, ALTERNATOR

main27330-33090i2GRFE..GSV40200603-200908

27360COIL ASSY, ALTERNATOR

main27360-31310i2GRFE..GSV40200603-200908

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2GRFE..GSV40200603-200908

27384WASHER

main27384-50030i2GRFE..GSV40200603-200908

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2GRFE..GSV40200603-200908

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W010i2GRFE..GSV40200603-200907

sub27415-0W130

sub27416-0W050

main27415-0W130i2GRFE..GSV40200907-201206

sub27415-0W131

27416CAP, ALTERNATOR PULLEY

main27416-0W010i2GRFE..GSV40200603-200907

main27416-0W050i2GRFE..GSV40200907-201206

1251131030BRACKET, ALTERNATOR, NO.1

main12511-31030

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9151180820

main91511-80820

9415080600

main94150-80600

21 parts on this diagram · 1 diagram in section
