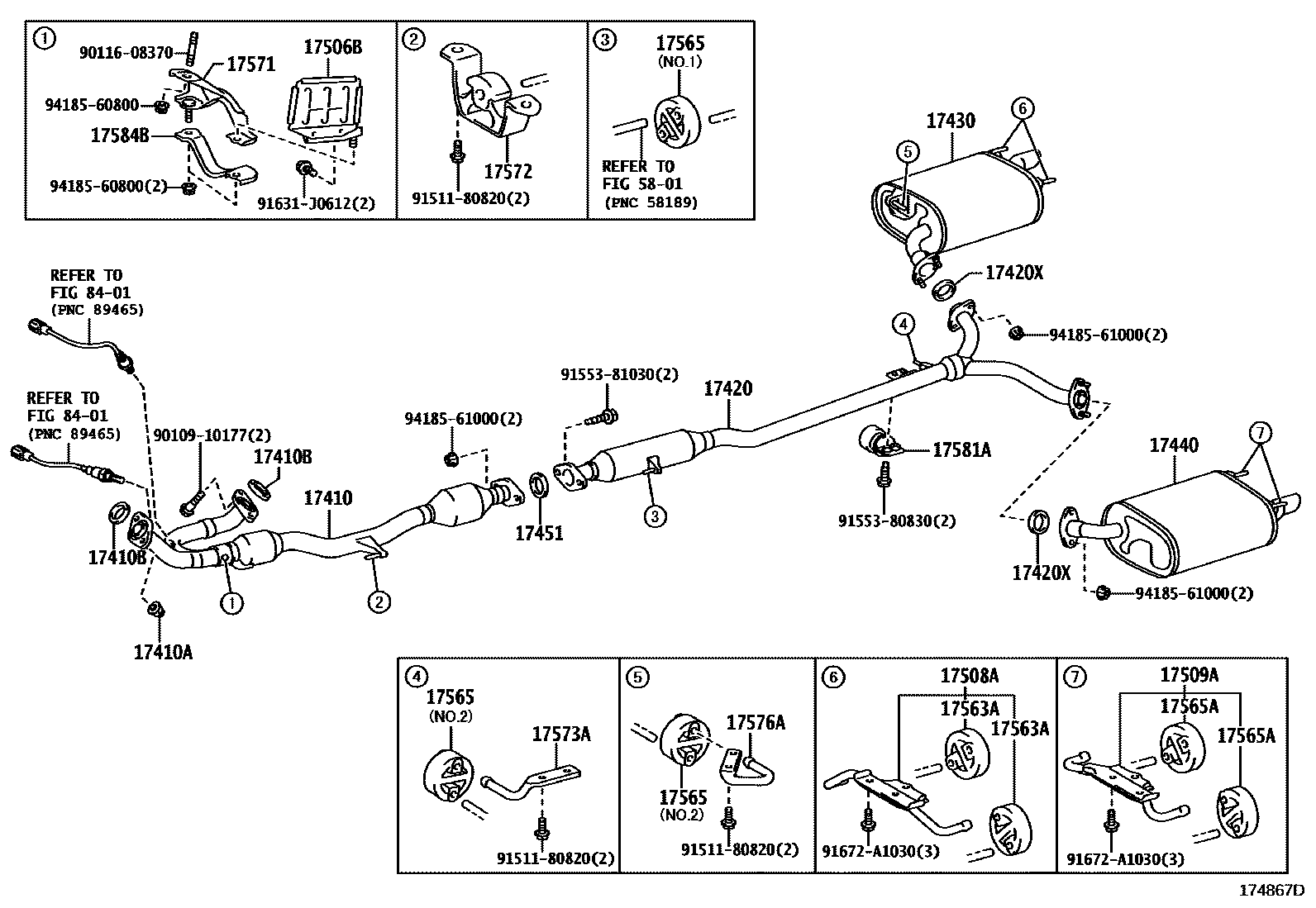

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/X66/Y
*114=TOYOTA/X18/Y
*114=TOYOTA/X18/Y,KOREA SPEC
*114=TOYOTA/X18/Y,BRAZIL SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420XGASKET, EXHAUST PIPE, CENTER
17451GASKET, EXHAUST PIPE
17506BBRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17581ADAMPER, EXHAUST PIPE
17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT
5801
8401
9010910177
main90109-10177
9011608370
main90116-08370
9151180820
main91511-80820
9155380830
main91553-80830
9155381030
main91553-81030
91631J0612
main91631-J0612
91672A1030
main91672-A1030
9418560800
main94185-60800
9418561000
main94185-61000
31 parts on this diagram · 1 diagram in section
