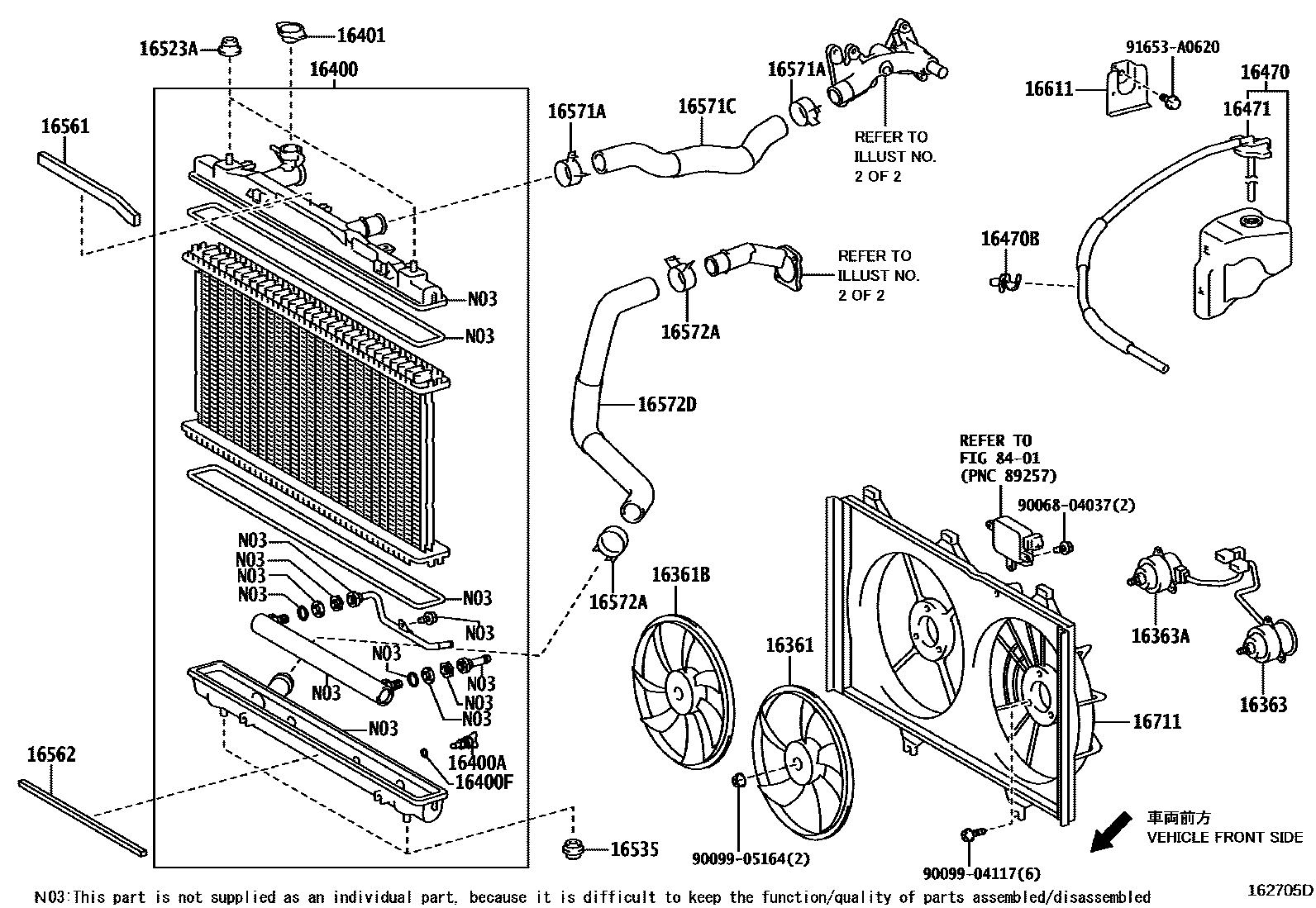

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400ACOCK SUB-ASSY, RADIATOR DRAIN
RADIATOR-CORE SIZE T=27
FAN & COUPLING-TOWING PACKAGE(DOP)
16400FPACKING(FOR RADIATOR DRAIN COCK)
RADIATOR-CORE SIZE T=27
FAN & COUPLING-TOWING PACKAGE(DOP)
16401CAP SUB-ASSY, RADIATOR
RADIATOR-CORE SIZE T=27
FAN & COUPLING-TOWING PACKAGE(DOP)
16470TANK ASSY, RADIATOR RESERVE
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
8401
9006804037
main90068-04037
9009904117
main90099-04117
9009905164
main90099-05164
91653A0620
main91653-A0620
26 parts on this diagram · 3 diagrams in section
