STANDARD TOOL

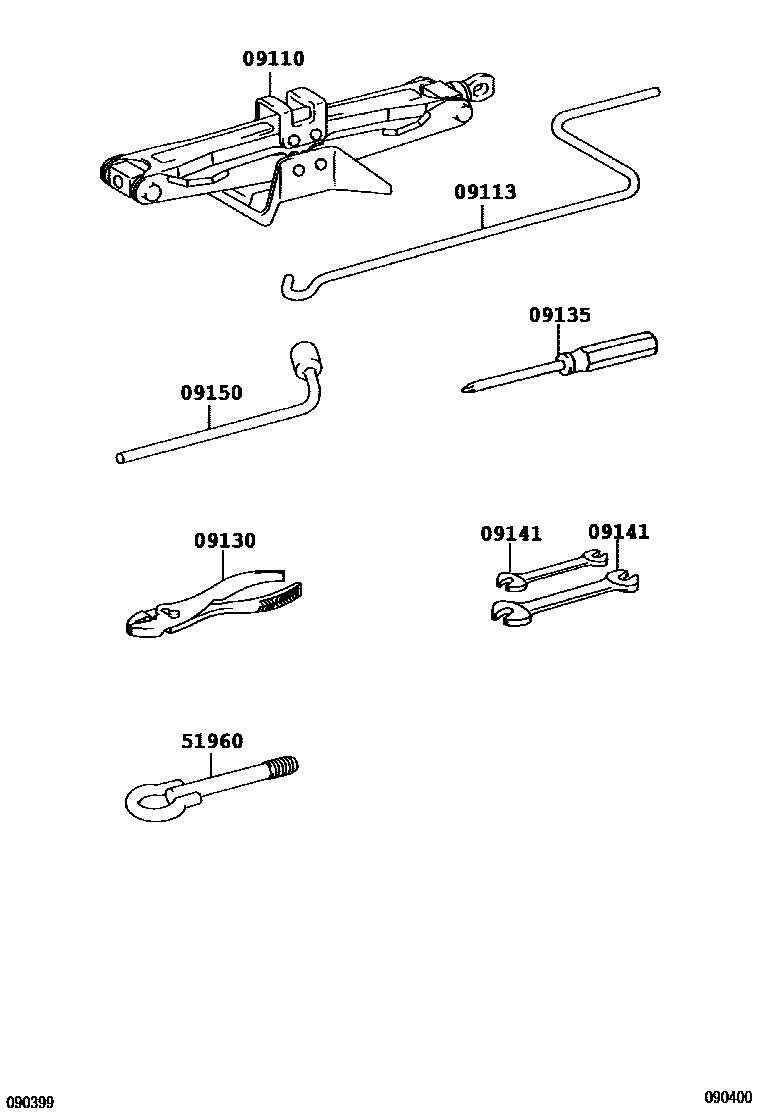

Parts diagram
09110JACK ASSY
main09111-33030i201008-201206
sub09111-76010
main09111-50051i200603-201008
sub09111-76011
09113HANDLE, JACK
main09113-33010i200603-200908
09130PLIERS
main09130-50030i200603-200903
main09130-50040i200903-200908
09135DRIVER, SCREW
main09135-50040i200603-200908
main99915-10700i200908
09141SPANNER
main09141-50050i200603-200908
8 X 10
main09141-50060i200603-200908
12 X 14
main09141-60010i200908
8 X 10
main09141-60020i200908
12 X 14
09150WRENCH, HUB NUT BOX
main09150-48010i200908
main09150-50010i200603-200908
sub09150-53010
51960HOOK ASSY, FRONT
main51960-47020i200603-200908

7 parts on this diagram · 1 diagram in section
