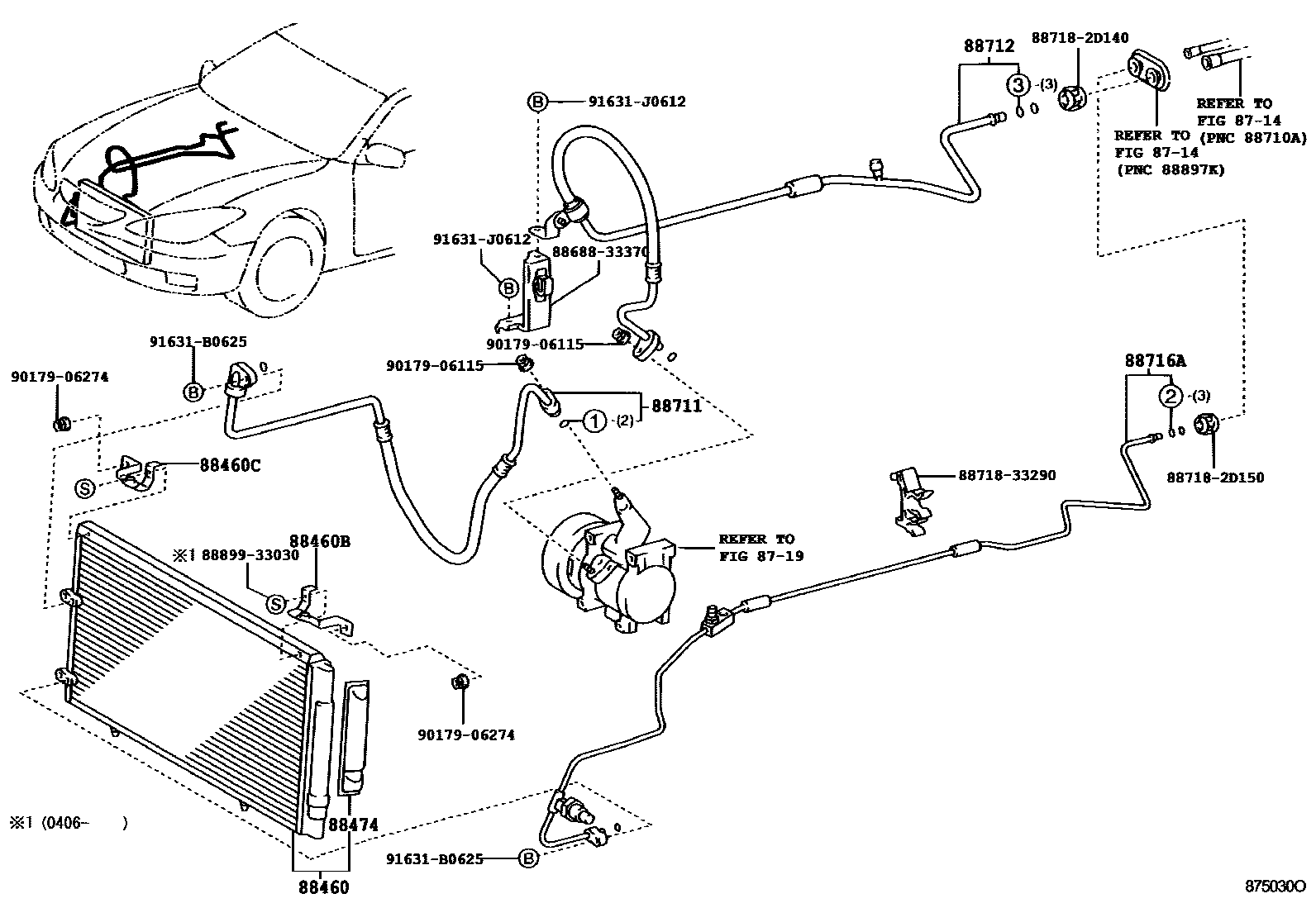

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-06140iMCV3#200107-200406

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-06120iMCV3#200107-200603

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-06140iMCV3#200107-200603

88474DRYER, COOLER

main88474-47010iMCV3#200107-200406

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-33160iMCV30200107-200202

sub88703-33161

main88703-33161iMCV30200202-200302

sub88703-33162

main88703-33162iMCV3#200302-200406

sub88711-33160

sub88718-21090

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-33270iMCV3#200107-200406

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-33260iMCV3#200107-200406

8868833370BRACKET, COOLER DIAPHRAGM

main88688-33370

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871833290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-33290

8889933030COVER, EVAPORATOR

main88899-33030

9017906115

main90179-06115

9017906274

main90179-06274

91631B0625

main91631-B0625

91631J0612

main91631-J0612

18 parts on this diagram · 2 diagrams in section
