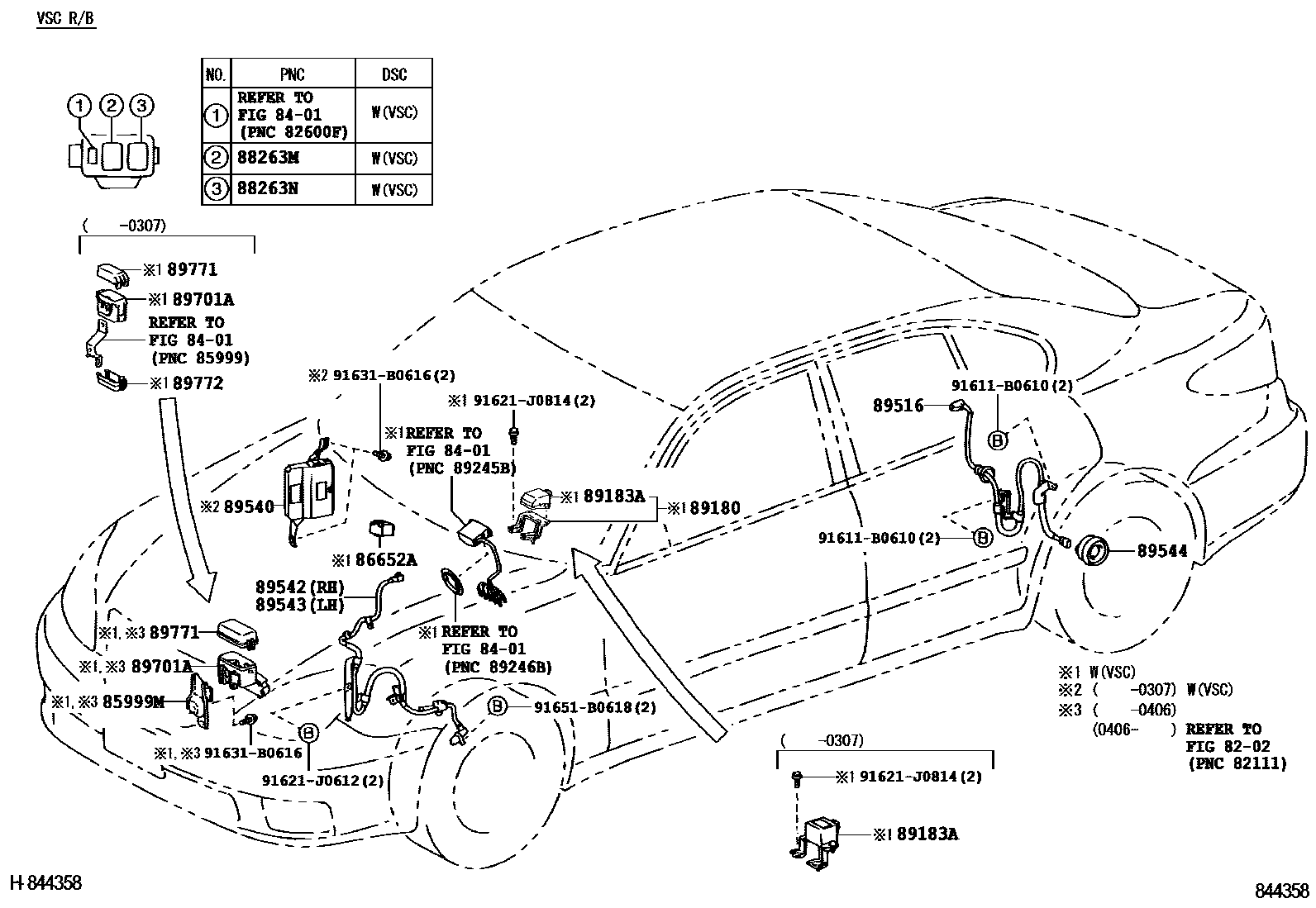

ABS & VSC

8202

8401

85999MBRACKET, RELAY

main85999-33180iMCV31200307-200603

86652ABUZZER ASSY, SKID CONTROL

main86650-33050iMCV3#200107-200603

88263MRELAY, ABS SOLENOID

main88263-32070iMCV3#200107-200603

88263NRELAY, ABS MOTOR

main88263-21010iMCV31200307-200603

main88263-32070iMCV30200107-200307

89180SENSOR ASSY, YAWRATE

main89180-33030iMCV31200307-200603

89183ASENSOR, YAWRATE

main89180-33020iMCV30200107-200307

main89183-48010iMCV31200307-200603

sub89183-60020

89516WIRE, SKID CONTROL SENSOR

main89516-33010iMCV31200107-200406

RH

main89516-33020iMCV3#200107-200406

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-33300iMCV30200107-200109

sub89540-33301

main89540-33301iMCV30200109-200307

89542SENSOR, SPEED, FRONT RH

main89542-33070iMCV3#200107-200603

89543SENSOR, SPEED, FRONT LH

main89543-33070iMCV3#200107-200603

89544SENSOR, SKID CONTROL

main89544-48010iMCV30200107-200603

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020iMCV30200107-200307

main89701-21020iMCV31200307-200406

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020iMCV31200307-200603

main89771-33010iMCV30200107-200307

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020iMCV30200107-200307

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91621J0814

main91621-J0814

91631B0616

main91631-B0616

91651B0618

main91651-B0618

21 parts on this diagram · 1 diagram in section
