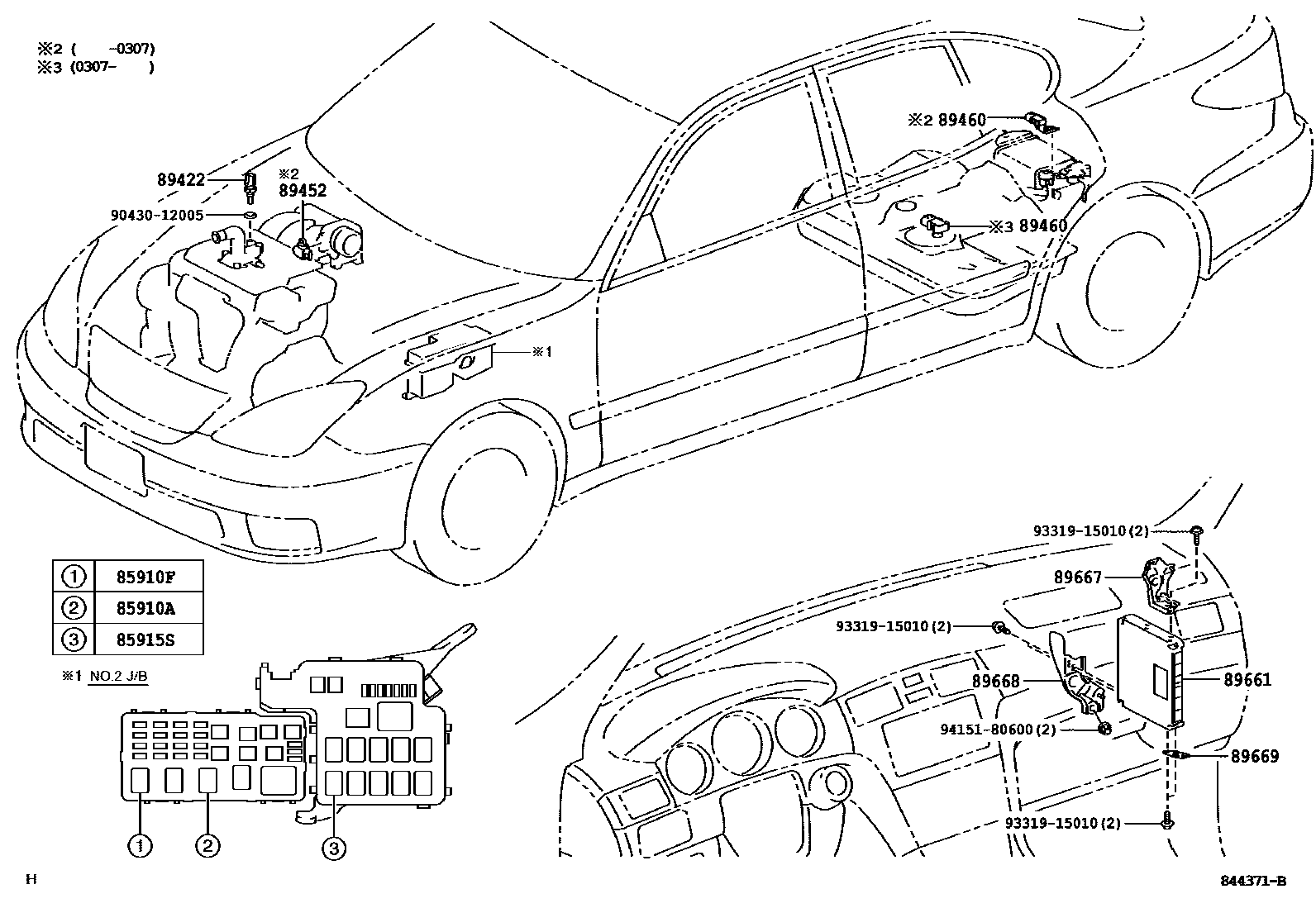

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89460SENSOR ASSY, VAPOR PRESSURE
(L)
(J)
89661COMPUTER, ENGINE CONTROL
sub89661-33A41
BRAZIL OR KOREA SPEC
TAIWAN SPEC
sub89661-33B31
sub89661-33B32
TAIWAN SPEC
BRAZIL OR KOREA SPEC
sub89666-33251
sub89666-33253
TAIWAN SPEC
sub89666-33441
sub89666-33442
sub89666-33443
TAIWAN SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9043012005
main90430-12005
9331915010
main93319-15010
9415180600
main94151-80600
13 parts on this diagram · 1 diagram in section
