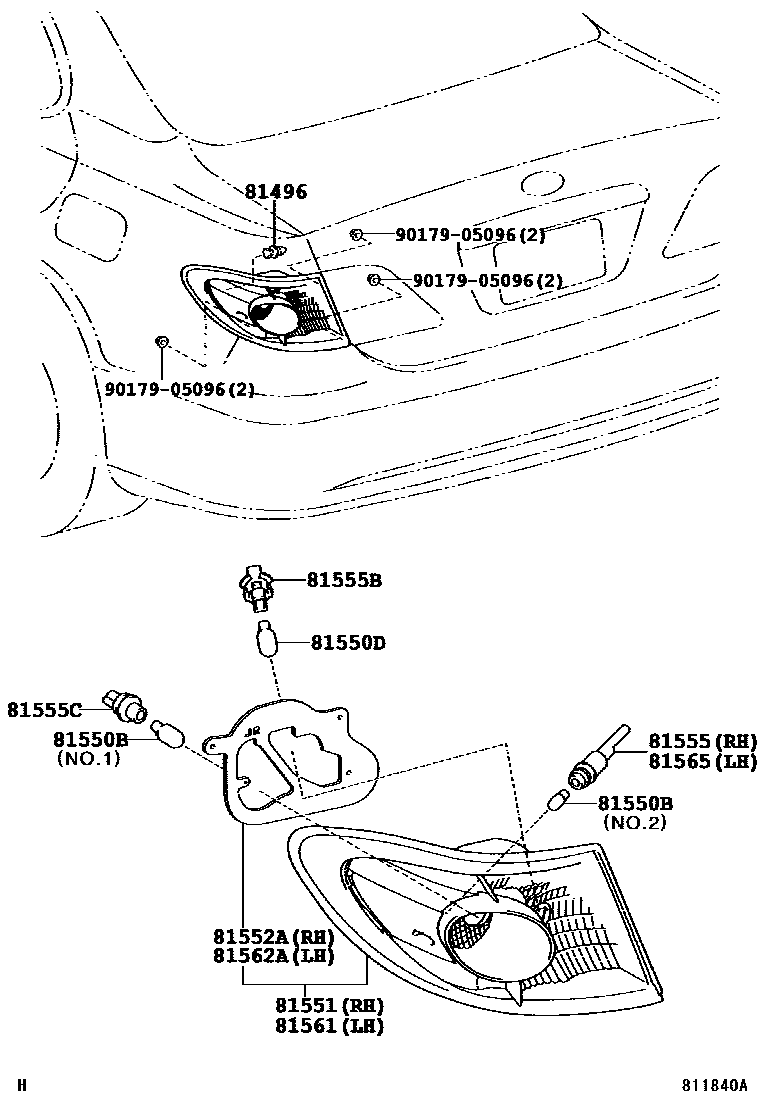

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iMCV3#200107-200406

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-15011iMCV31200107-200408

12V 21W,AMBER,NO.1

main99132-12050iMCV31200107-200408

12V 5W,NO.2

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044iMCV31200107-200603

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-33280iMCV3#200107-200406

main81551-33430iMCV31200406

81552AGASKET, REAR COMBINATION LAMP, RH

main81552-33280iMCV30200211-200406

main81552-33430iMCV31200406-200409

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33280iMCV30200107-200406

main81555-33430iMCV31200406-200409

sub81555-33431

main81555-33431iMCV31200409

81555BSOCKET PLUG, NO.1

main90075-60002iMCV3#200107-200406

81555CSOCKET PLUG, NO.2

main90075-60026iMCV3#200107-200406

81561LENS, REAR COMBINATION LAMP, LH

main81561-33280iMCV3#200107-200406

main81561-33430iMCV31200406

81562AGASKET, REAR COMBINATION LAMP, LH

main81562-33280iMCV30200211-200406

main81562-33430iMCV31200406-200409

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33280iMCV30200107-200406

main81555-33430iMCV31200406-200409

sub81555-33431

main81555-33431iMCV31200409

9017905096

main90179-05096

12 parts on this diagram · 2 diagrams in section
