SEAT BELT & CHILD RESTRAINT SEAT

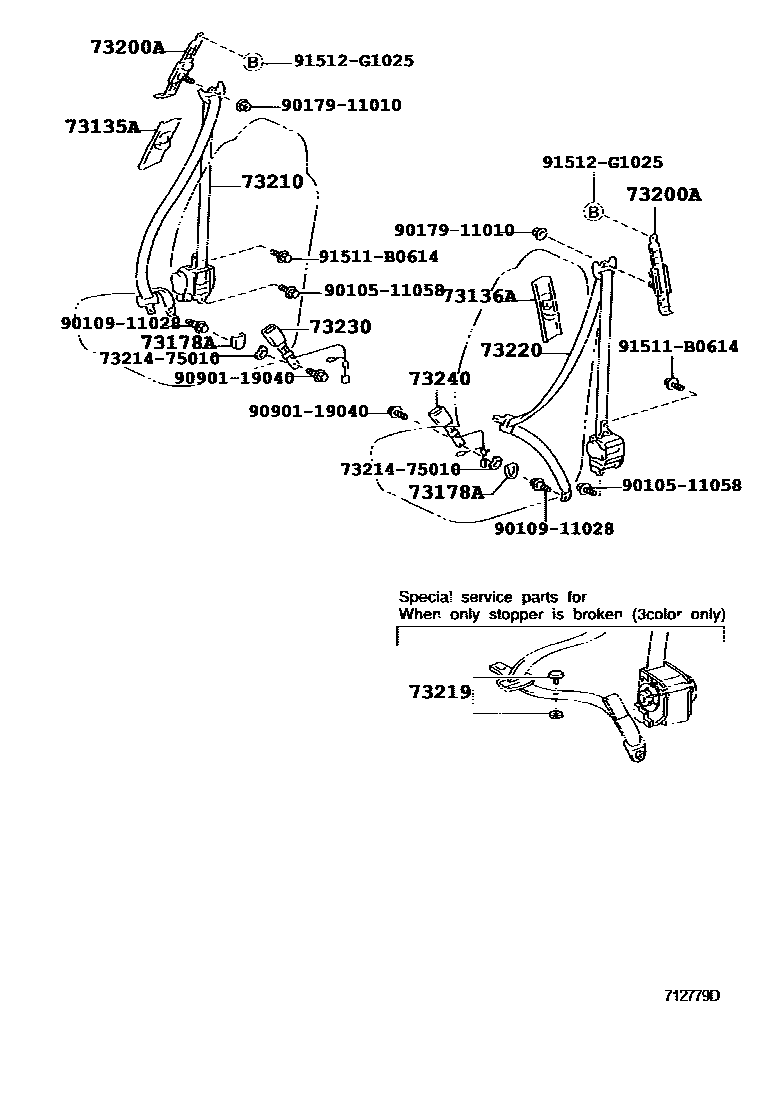

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-33010-A0i200107-200406
IVORY,TRIM0#
sub73023-33010¥2,190
main73023-33010-A2i200406-200603
IVORY,TRIM0#
sub73023-33010¥2,190
main73023-33010-B0i200107-200406
LT.GRAY,TRIM2#
sub73023-33010¥2,190
main73023-33010-B1i200107-200406
MD.CHARCOAL,TRIM1#
sub73023-33010¥2,190
main73023-33010-B2i200406-200603
GRAY,TRIM1#,2#
sub73023-33010¥2,190
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-33010-A0i200107-200406
IVORY,TRIM0#
sub73024-33010¥2,190
main73024-33010-A2i200406-200603
IVORY,TRIM0#
sub73024-33010¥2,190
main73024-33010-B0i200107-200406
LT.GRAY,TRIM2#
sub73024-33010¥2,190
main73024-33010-B1i200107-200406
MD.CHARCOAL,TRIM1#
sub73024-33010¥2,190
main73024-33010-B2i200406-200603
GRAY,TRIM1#,2#
sub73024-33010¥2,190
73178ACAP, SEAT BELT ANCHOR COVER
main73233-33010-A1i200107-200406
IVORY,TRIM0#
sub73233-33010¥300
main73233-33010-A3i200406-200603
IVORY,TRIM0#
sub73233-33010¥300
main73233-33010-B2i200107-200406
MD.CHARCOAL,TRIM1#
sub73233-33010¥300
main73233-33010-C0i200107-200603
BLACK,TRIM2#
sub73233-33010¥300
main73233-33010-P3i200406-200603
GRAY,TRIM1#
sub73233-33010¥300
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-51020i¥4,790200107-200603
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33330-A0i200107-200307
IVORY,TRIM0#
sub73210-33330¥39,500
main73210-33330-B0i200107-200307
GRAY,TRIM1#
sub73210-33330¥39,500
main73210-33330-C0i200107-200307
BLACK,TRIM2#
sub73210-33330¥39,500
main73210-33350-A0i200307-200406
IVORY,TRIM0#
sub73210-33350¥39,600
sub73210-33351
main73210-33350-A1i200406-200503
IVORY,TRIM0#
sub73210-33350¥39,600
sub73210-33351
main73210-33350-B0i200307-200406
GRAY,TRIM1#
sub73210-33350¥39,600
sub73210-33351
main73210-33350-B1i200406-200503
GRAY,TRIM1#
sub73210-33350¥39,600
sub73210-33351
main73210-33350-C0i200307-200406
BLACK,TRIM2#
sub73210-33350¥39,600
sub73210-33351
main73210-33350-C1i200406-200503
BLACK,TRIM2#
sub73210-33350¥39,600
sub73210-33351
main73210-33351-A1i200503-200603
IVORY,TRIM0#
sub73210-33351
main73210-33351-B1i200503-200603
GRAY,TRIM1#
sub73210-33351
main73210-33351-C1i200503-200603
BLACK,TRIM2#
sub73210-33351
73219STOPPER, TONGUE PLATE
main73219-02010i¥80200406-200603
BLACK
main73219-02020i¥80200406-200603
GRAY
main73219-02030i¥80200406-200603
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33310-A0i200107-200307
IVORY,TRIM0#
sub73220-33310¥39,500
main73220-33310-B0i200107-200307
GRAY,TRIM1#
sub73220-33310¥39,500
main73220-33310-C0i200107-200307
BLACK,TRIM2#
sub73220-33310¥39,500
main73220-33330-A0i200307-200406
IVORY,TRIM0#
sub73220-33330¥39,600
sub73220-33331
main73220-33330-A1i200406-200503
IVORY,TRIM0#
sub73220-33330¥39,600
sub73220-33331
main73220-33330-B0i200307-200406
GRAY,TRIM1#
sub73220-33330¥39,600
sub73220-33331
main73220-33330-B1i200406-200503
GRAY,TRIM1#
sub73220-33330¥39,600
sub73220-33331
main73220-33330-C0i200307-200406
BLACK,TRIM2#
sub73220-33330¥39,600
sub73220-33331
main73220-33330-C1i200406-200503
BLACK,TRIM2#
sub73220-33330¥39,600
sub73220-33331
main73220-33331-A1i200503-200603
IVORY,TRIM0#
sub73220-33331
main73220-33331-B1i200503-200603
GRAY,TRIM1#
sub73220-33331
main73220-33331-C1i200503-200603
BLACK,TRIM2#
sub73220-33331
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33250-A0i200307-200406
IVORY,TRIM0#
sub73230-33251¥5,800
main73230-33250-B0i200307-200406
MD.CHARCOAL,TRIM1#
sub73230-33251¥5,800
main73230-33250-C0i200307-200406
BLACK,TRIM2#
sub73230-33251¥5,800
main73230-33251-A1i200406-200603
IVORY,TRIM0#
sub73230-33251¥5,800
main73230-33251-B1i200406-200603
GRAY,TRIM1#
sub73230-33251¥5,800
main73230-33251-C0i200406-200603
BLACK,TRIM2#
sub73230-33251¥5,800
main73230-33310-A0i200107-200307
IVORY,TRIM0#
sub73230-33310¥5,800
main73230-33310-B0i200107-200307
MD.CHARCOAL,TRIM1#
sub73230-33310¥5,800
main73230-33310-C0i200107-200307
BLACK,TRIM2#
sub73230-33310¥5,800
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33300-A0i200107-200307
IVORY,TRIM0#
sub73230-33300¥5,800
main73230-33300-B0i200107-200307
MD.CHARCOAL,TRIM1#
sub73230-33300¥5,800
main73230-33300-C0i200107-200307
BLACK,TRIM2#
sub73230-33300¥5,800
main73230-33560-A0i200406-200603
IVORY,TRIM0#
sub73230-33560¥8,200
main73230-33560-B0i200406-200603
GRAY,TRIM1#
sub73230-33560¥8,200
main73230-33560-C0i200406-200603
BLACK,TRIM2#
sub73230-33560¥8,200
main73240-33050-A0i200307-200406
IVORY,TRIM0#
sub73240-33050¥9,100
main73240-33050-B0i200307-200406
MD.CHARCOAL,TRIM1#
sub73240-33050¥9,100
main73240-33050-C0i200307-200406
BLACK,TRIM2#
sub73240-33050¥9,100
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010¥170
9010511058
main90105-11058¥100
9010911028
main90109-11028¥890
9017911010
main90179-11010¥110
9090119040
main90901-19040¥120
91511B0614
main91511-B0614¥90
91512G1025
main91512-G1025¥100

16 parts on this diagram · 3 diagrams in section
