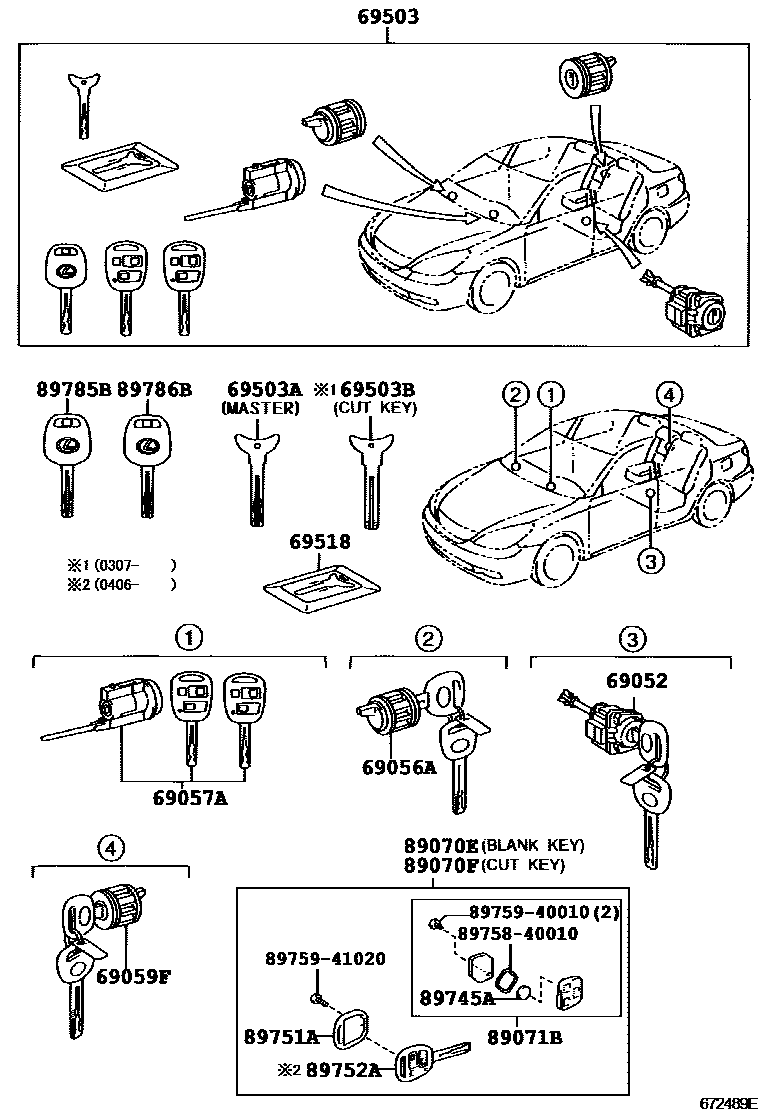

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33240i200107-200208

sub69052-33241

main69052-33241i200208-200406

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33160i200107-200603

sub69056-60170

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33300i200107-200502

sub69057-33301

main69057-33310i200107-200307

BRAZIL OR KOREA OR TAIWAN SPEC

sub69057-33311

main69057-33330i200307-200603

BRAZIL OR KOREA OR TAIWAN SPEC

sub69057-33331

main69057-33390i200503-200603

sub69057-33301

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-33160i200107-200603

sub69056-60170

69503CYLINDER SET, LOCK

main69005-33160i200307-200603

BRAZIL OR KOREA OR TAIWAN SPEC

sub69005-33161

main69005-3T150i200107-200208

main69005-3T151i200208-200307

main69005-3T152i200307-200502

sub69005-3T153

main69005-3T153i200503-200603

main69005-3T160i200107-200208

BRAZIL OR TAIWAN SPEC

main69005-3T161i200208-200307

BRAZIL OR KOREA OR TAIWAN SPEC

sub69005-3T162

69503AKEY, BLANK

main69515-50130i200107-200406

MASTER KEY

69503BKEY, CUT

main90999-00233i200307-200406

MASTER KEY,CARD TYPE

69518CARD, SPARE KEY

main89795-50010i200307-200406

main89795-60010i200107-200307

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-33580i200107-200307

BRAZIL SPEC

sub89070-33581

main89070-33690i200112-200307

KOREA SPEC

main89070-33750i200307-200502

sub89070-33751

main89070-33751i200503-200603

main89070-33760i200307-200603

TAIWAN SPEC

sub89070-33761

main89070-33770i200307-200603

KOREA SPEC

sub89070-33771

main89070-50750i200307-200603

BRAZIL SPEC

sub89070-50751

main89070-53530i200107-200307

sub89070-53531

main89070-53540i200107-200307

TAIWAN SPEC

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-33620i200107-200307

BRAZIL SPEC

sub89070-33621

main89070-33700i200112-200307

KOREA SPEC

main89070-33800i200307-200502

sub89070-33801

main89070-33801i200503-200603

main89070-33810i200307-200603

TAIWAN SPEC

sub89070-33811

main89070-33820i200307-200603

KOREA SPEC

sub89070-33821

main89070-53660i200107-200307

sub89070-53661

main89070-53670i200107-200307

TAIWAN SPEC

sub89070-33810

main89070-5A060i200307-200603

BRAZIL SPEC

sub89070-5A061

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-24021i200107-200307

main89071-33050i200107-200307

BRAZIL SPEC

main89071-33180i200112-200307

KOREA SPEC

main89071-33220i200307-200603

main89071-33230i200307-200603

KOREA SPEC

main89071-50260i200307-200603

BRAZIL SPEC

89745ABATTERY, TRANSMITTER

main89745-40010i200406

BRAZIL SPEC

main89745-40010i200107-200307

main89745-48030i200307-200406

sub89745-71010

89751ACOVER, TRANSMITTER HOUSING

main89751-48030i200307-200502

sub89751-48031

main89751-48031i200503-200603

main89751-48040i200307-200510

TAIWAN SPEC

sub89751-48041

main89751-48041i200511-200603

TAIWAN SPEC

main89751-48050i200307-200510

KOREA SPEC

sub89751-48051

main89751-48051i200511-200603

KOREA SPEC

sub89751-48052

main89751-50100i200107-200510

BRAZIL SPEC

sub89751-50101

main89751-50101i200511-200603

BRAZIL SPEC

main89751-53010i200107-200307

main89751-53020i200107-200307

TAIWAN SPEC

sub89751-53021

main89751-53050i200112-200307

KOREA SPEC

sub89751-53051

89752ACASE, TRANSMITTER HOUSING

main89752-33070i200406-200603

BLANK KEY

main89752-33080i200406-200603

CUT KEY

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-50030i200107-200307

BLANK KEY

main89785-50040i200107-200307

CUT KEY

main89785-50110i200307-200406

BLANK KEY

sub89785-60180

main89785-50130i200307-200406

CUT KEY

sub89785-60140

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-50030i200107-200307

BLANK KEY

main89786-50040i200107-200307

CUT KEY

main89786-50110i200307-200603

BLANK KEY

sub89786-60150

main89786-50130i200307-200603

CUT KEY

sub89786-60200

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

19 parts on this diagram · 1 diagram in section
