EPC Data

REAR DOOR PANEL & GLASS

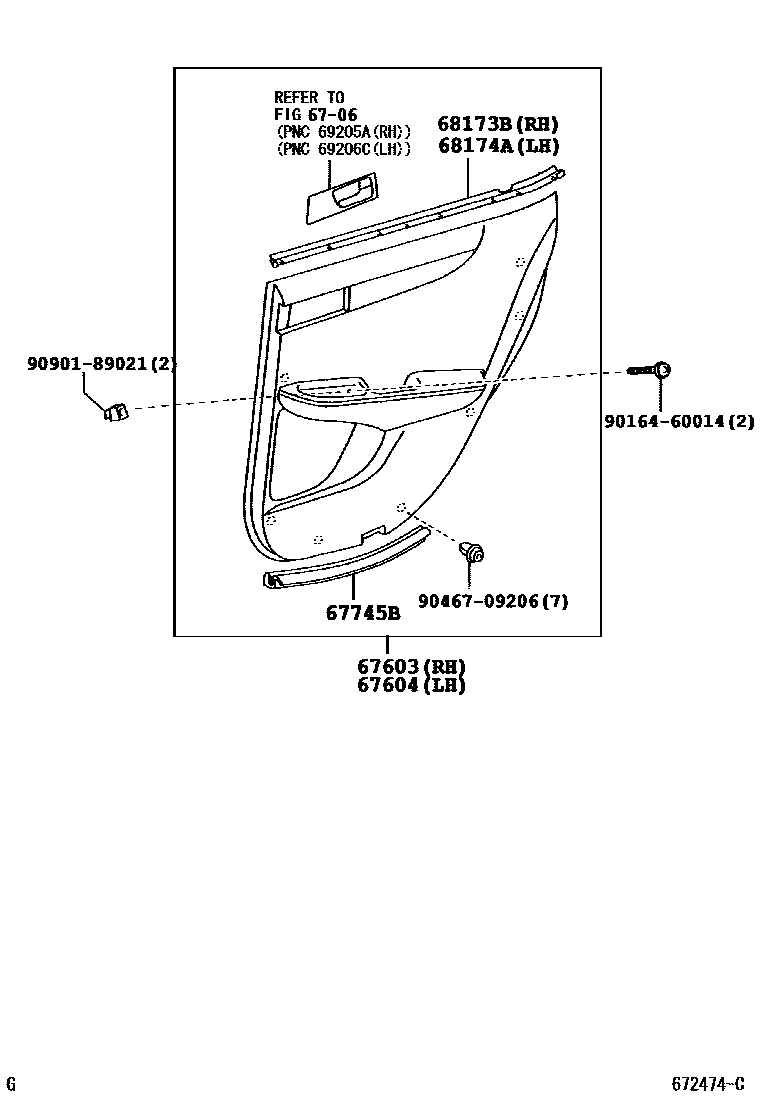

Parts diagram
6706
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-33670-A0i200107-200307
IVORY,TRIM0#
sub67630-33671
main67630-33670-B1i200107-200307
CHARCOAL,TRIM1#
sub67630-33671
main67630-33670-C1i200107-200307
BLACK,TRIM2#
sub67630-33671
main67630-33671-A0i200307-200402
IVORY,TRIM0#
sub67630-33673
sub67745-33021
main67630-33671-B1i200307-200402
CHARCOAL,TRIM1#
sub67630-33673
sub67745-33021
main67630-33671-C1i200307-200402
BLACK,TRIM2#
sub67630-33673
sub67745-33021
main67630-33672-A1i200402-200403
IVORY,TRIM0#
sub67630-33673
sub67745-33021
main67630-33672-B2i200402-200403
CHARCOAL,TRIM1#
sub67630-33673
sub67745-33021
main67630-33672-C2i200402-200403
BLACK,TRIM2#
sub67630-33673
sub67745-33021
main67630-33673-A0i200404-200406
IVORY,TRIM0#
main67630-33673-B1i200404-200406
CHARCOAL,TRIM1#
main67630-33673-C1i200404-200406
BLACK,TRIM2#
main67630-33720-A2i200406-200603
IVORY,TRIM0#
main67630-33720-B2i200406
GRAY,TRIM1#
main67630-33720-C2i200406-200603
BLACK,TRIM2#
main67630-33742-B0i200402-200406
SPORTS EDITION(USA),SADDLE GRAY,TRIM1#
main67630-33742-C0i200402-200406
SPORTS EDITION(USA),BLACK,TRIM2#
main67630-33A20-B0i200508-200512
BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),GRAY,TRIM11
main67630-33A20-C0i200508-200512
BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),BLACK,TRIM21
main67630-33A30-B0i200508-200512
W(SEAT MEMORY SWITCH);BLACK DIAMOND EDITION(USA/HAWAII/P.RICO),GRAY,TRIM11
main67630-33A30-C0i200508-200512
W(SEAT MEMORY SWITCH);BLACK DIAMOND EDITION(USA/HAWAII/P.RICO),BLACK,TRIM21
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-33670-A0i200107-200307
IVORY,TRIM0#
sub67640-33671
main67640-33670-B1i200107-200307
CHARCOAL,TRIM1#
sub67640-33671
main67640-33670-C1i200107-200307
BLACK,TRIM2#
sub67640-33671
main67640-33671-A0i200307-200402
IVORY,TRIM0#
sub67640-33673
sub67745-33021
main67640-33671-B1i200307-200402
CHARCOAL,TRIM1#
sub67640-33673
sub67745-33021
main67640-33671-C1i200307-200402
BLACK,TRIM2#
sub67640-33673
sub67745-33021
main67640-33672-A1i200402-200403
IVORY,TRIM0#
sub67640-33673
sub67745-33021
main67640-33672-B2i200402-200403
CHARCOAL,TRIM1#
sub67640-33673
sub67745-33021
main67640-33672-C2i200402-200403
BLACK,TRIM2#
sub67640-33673
sub67745-33021
main67640-33673-A0i200404-200406
IVORY,TRIM0#
main67640-33673-B1i200404-200406
CHARCOAL,TRIM1#
main67640-33673-C1i200404-200406
BLACK,TRIM2#
main67640-33720-A2i200406-200603
IVORY,TRIM0#
main67640-33720-B2i200406
GRAY,TRIM1#
main67640-33720-C2i200406-200603
BLACK,TRIM2#
main67640-33742-B0i200402-200406
SPORTS EDITION(USA),SADDLE GRAY,TRIM1#
main67640-33742-C0i200402-200406
SPORTS EDITION(USA),BLACK,TRIM2#
main67640-33A20-B0i200508-200512
BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),GRAY,TRIM11
main67640-33A20-C0i200508-200512
BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);W(MARK LEVINSON SPEAKER & SEAT MEMORY SWITCH),BLACK,TRIM21
main67640-33A30-B0i200508-200512
W(SEAT MEMORY SWITCH);BLACK DIAMOND EDITION(USA/HAWAII/P.RICO),GRAY,TRIM11
main67640-33A30-C0i200508-200512
W(SEAT MEMORY SWITCH);BLACK DIAMOND EDITION(USA/HAWAII/P.RICO),BLACK,TRIM21
67745BSEAL, REAR DOOR TRIM, RH
main67745-33021i200402-200406
sub67743-33021
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
main68173-33050i200107-200603
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
main68174-33040i200107-200603
9016460014
main90164-60014
9046709206
main90467-09206
9090189021
main90901-89021

9 parts on this diagram · 2 diagrams in section
