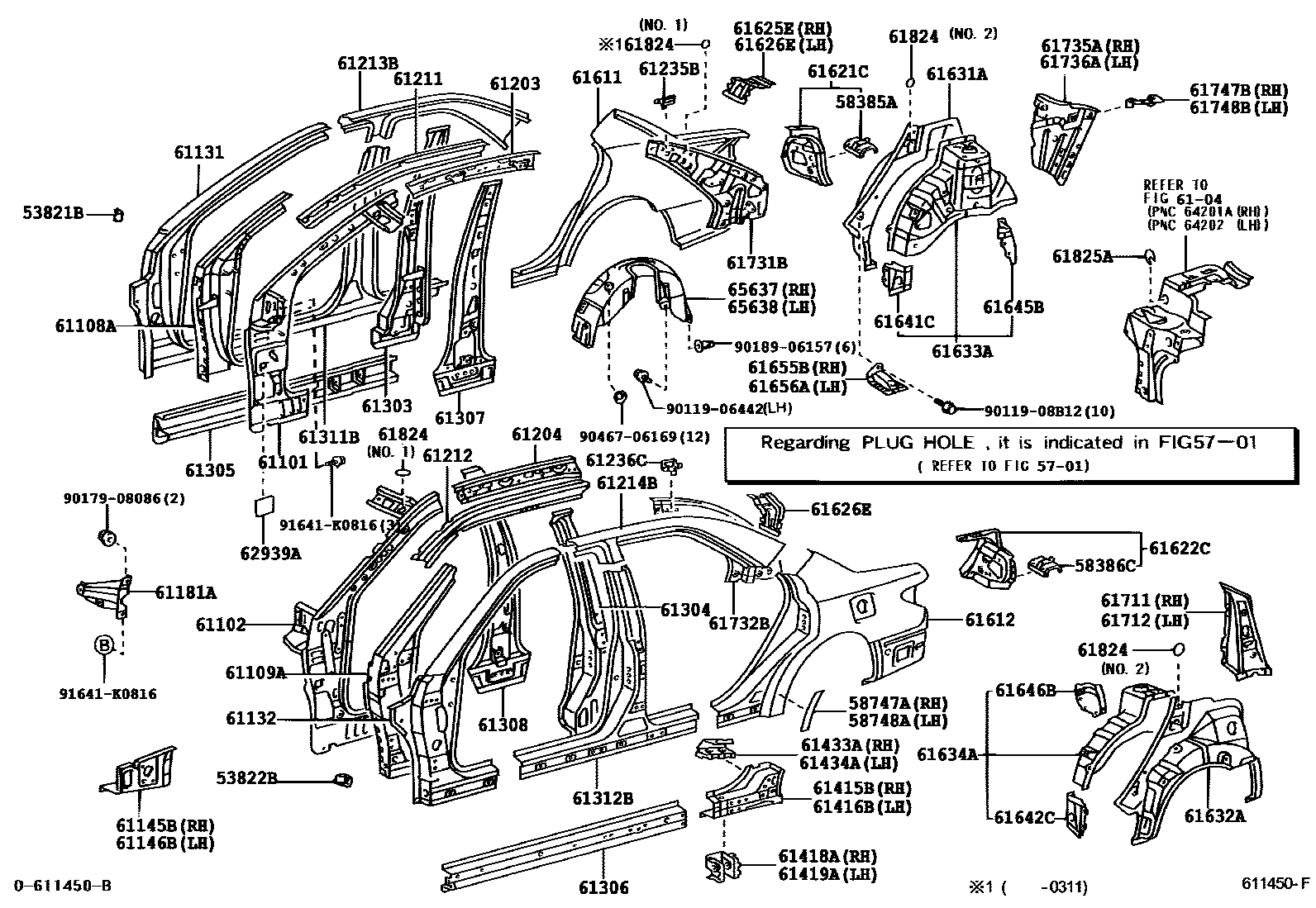

SIDE MEMBER

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iMCV31200107-200406

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iMCV3#200107-200406

5701

58385ABRACKET, REAR BUMPER COVER

main58385-33020iMCV3#200107-200406

58386CBRACKET, REAR BUMPER COVER, LH

main58385-33020iMCV3#200107-200406

58747APROTECTOR, QUARTER PANEL, REAR RH

main58747-33020iMCV31200107-200406

58748APROTECTOR, QUARTER PANEL, REAR LH

main58748-33020iMCV3#200107-200406

6104

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-33080iMCV3#200107-200603

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-33100iMCV3#200107-200603

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61103-33020iMCV30200107-200406

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61104-33020iMCV31200107-200406

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-33040iMCV3#200107-200406

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-33040iMCV3#200107-200406

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-33040iMCV3#200107-200406

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-33040iMCV3#200107-200406

61181ABRACKET, INSTRUMENT SIDE, RH

main61181-33010iMCV3#200107-200406

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-33030iMCV3#200107-200603

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-33030iMCV3#200107-200603

61211RAIL, ROOF SIDE, OUTER RH

main61211-33030iMCV3#200107-200406

61212RAIL, ROOF SIDE, OUTER LH

main61212-33030iMCV3#200107-200406

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-33060iMCV3#200107-200402

sub61213-33061

main61213-33061iMCV31200402-200406

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-33060iMCV3#200107-200402

sub61214-33061

main61214-33061iMCV31200402-200406

61235BBRACKET, ASSIST GRIP

main61238-33010iMCV30200107-200406

61236CBRACKET, ASSIST GRIP

main61238-33010iMCV30200107-200406

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-33900iMCV30200107-200406

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-33900iMCV30200107-200406

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-33040iMCV30200107-200406

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-33040iMCV30200107-200406

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-33050iMCV3#200107-200603

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-33050iMCV3#200107-200603

61311BPILLAR, CENTER BODY, OUTER RH

main61311-33040iMCV3#200107-200406

61312BPILLAR, CENTER BODY, OUTER LH

main61312-33040iMCV3#200107-200406

61415BEXTENSION, ROCKER, OUTER RH

main61415-33040iMCV30200107-200406

61416BEXTENSION, ROCKER, OUTER LH

main61416-33040iMCV30200107-200406

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-33050iMCV30200107-200406

61419AREINFORCEMENT, ROCKER PANEL, LH

main61418-33050iMCV31200107-200406

61433AREINFORCEMENT, ROCKER PANEL, OUTER RH

main61433-33020iMCV30200107-200406

61434AREINFORCEMENT, ROCKER PANEL, OUTER LH

main61434-33020iMCV30200107-200406

61611PANEL, QUARTER, RH

main61601-33270iMCV3#200107-200402

sub61601-33271

main61601-33271iMCV31200402-200603

61612PANEL, QUARTER, LH

main61602-33160iMCV3#200107-200402

sub61602-33161

main61602-33161iMCV31200402-200603

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61063-33010iMCV31200406

main61621-33900iMCV3#200107-200406

sub61063-33010

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61064-33010iMCV31200406

main61622-33900iMCV3#200107-200406

sub61064-33010

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-33050iMCV30200107-200406

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-33050iMCV31200107-200406

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-33050iMCV30200107-200210

sub61631-33051

main61631-33051iMCV30200210-200406

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-33050iMCV30200107-200210

sub61632-33051

main61632-33051iMCV30200210-200406

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-33904iMCV3#200107-200406

sub61607-33909

main61607-33909iMCV31200406

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-33904iMCV3#200107-200406

sub61608-33909

main61608-33909iMCV31200406

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-33030iMCV3#200107-200406

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-33030iMCV3#200107-200406

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-33020iMCV3#200107-200406

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-33020iMCV31200107-200406

61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH

main61655-33010iMCV31200107-200406

61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH

main61656-33010iMCV3#200107-200406

61711PANEL, ROOF SIDE, OUTER RH

main61711-33050iMCV30200107-200406

61712PANEL, ROOF SIDE, OUTER LH

main61712-33050iMCV30200107-200406

61731BPANEL, ROOF SIDE, INNER RH

main61731-33100iMCV30200107-200406

61732BPANEL, ROOF SIDE, INNER LH

main61732-33090iMCV30200107-200406

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-33060iMCV30200107-200406

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-33060iMCV31200107-200406

61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH

main61747-33020iMCV30200107-200406

61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH

main61748-33020iMCV31200107-200406

61824PLATE, NOISE CONTROL, NO.1

main61824-20100iMCV3#200107-200406

NO.1

main61825-30020iMCV31200107-200406

NO.2

61825APLATE, NOISE CONTROL, NO.2

main61824-33020iMCV3#200107-200406

62939ASILENCER, QUARTER VENT

main62939-32030iMCV3#200107-200406

65637LINER, REAR WHEEL HOUSE, RH

main65637-33010iMCV3#200107-200406

65638LINER, REAR WHEEL HOUSE, LH

main65638-33010iMCV3#200107-200406

9011906442

main90119-06442

9011908B12

main90119-08B12

9017908086

main90179-08086

9018906157

main90189-06157

9046706169

main90467-06169

91641K0816

main91641-K0816

74 parts on this diagram · 1 diagram in section
