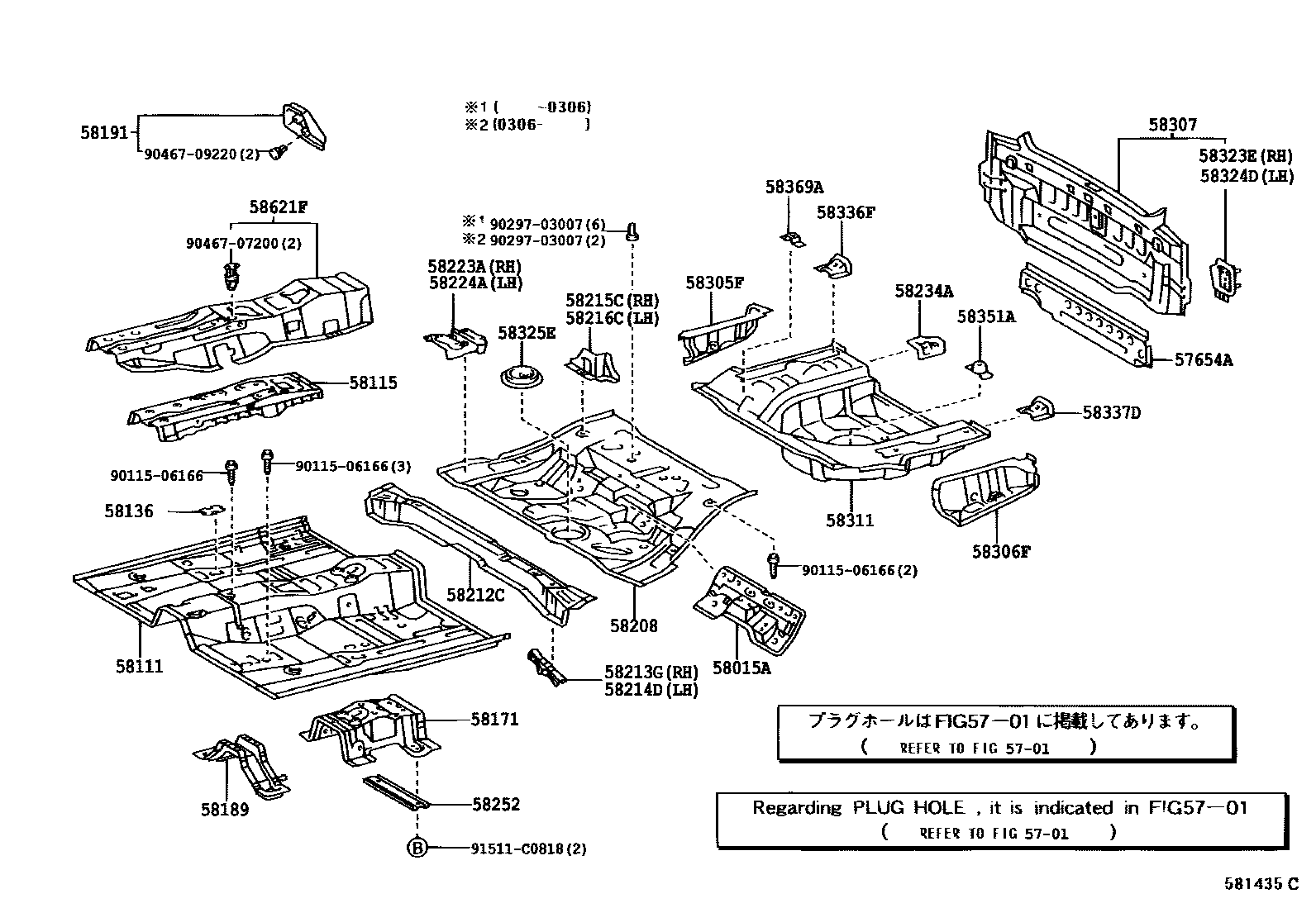

FLOOR PAN & LOWER BACK PANEL
5701
57654AMEMBER, REAR FLOOR CROSS, NO.3
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58191FOOTREST, FRONT FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58223AREINFORCEMENT, FLOOR SIDE PANEL, RH
58224AREINFORCEMENT, FLOOR SIDE PANEL, LH
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58252BRACE, FLOOR PANEL, REAR
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58351ABRACKET, SPARE WHEEL CARRIER
58369ABRACKET, FUEL TUBE, NO.3
9011506166
main90115-06166
9029703007
main90297-03007
9046707200
main90467-07200
9046709220
main90467-09220
91511C0818
main91511-C0818
36 parts on this diagram · 1 diagram in section
