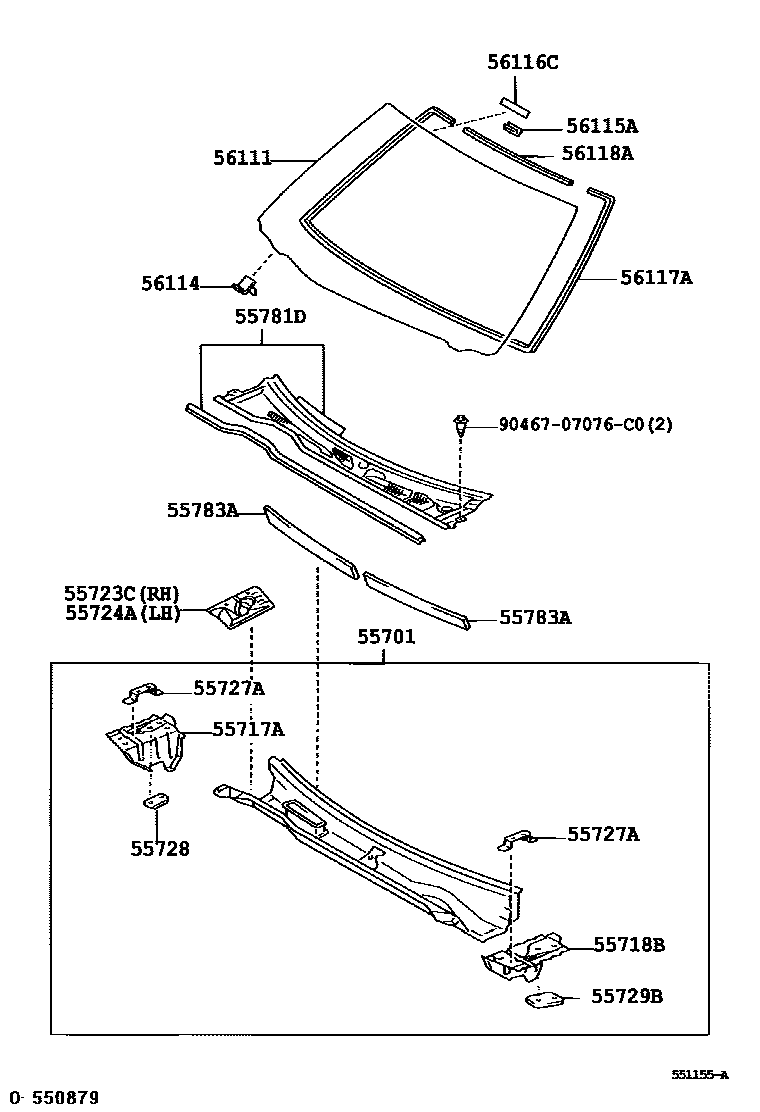

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-33200iMCV3#200107-200603

55717APANEL, COWL TOP SIDE, INNER RH

main55717-33030iMCV30200107-200203

sub55717-33031

main55717-33031iMCV3#200203-200406

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-33030iMCV3#200107-200406

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-33030iMCV3#200107-200603

55724AREINFORCEMENT, COWL TOP SIDE, LH

main55724-33030iMCV3#200107-200603

55727ARETAINER, FRONT PANEL UPPER REINFORCEMENT

main55727-33030iMCV3#200107-200406

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-33020iMCV3#200107-200406

55729BREINFORCEMENT, HOOD STOPPER, LH

main55729-33020iMCV3#200107-200406

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-33050iMCV3#200107-200406

55783APAD, COWL TOP SILENCER

main55783-33050iMCV31200107-200406

56111GLASS, WINDSHIELD

main56101-33480iMCV31200107-200406

*LAM,T=4.7,BLUE

main56101-33500iMCV3#200107-200406

*LAM,T=4.7,BLUE,W(AUTO WIPER)

56114RETAINER, WINDSHIELD GLASS

main56114-22050iMCV3#200107-200406

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iMCV3#200107-200406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMCV3#200107-200406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-33070iMCV3#200107-200406

*D,L=3500

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-33060iMCV3#200107-200406

*D,L=715

9046707076C0

main90467-07076C0

17 parts on this diagram · 1 diagram in section
