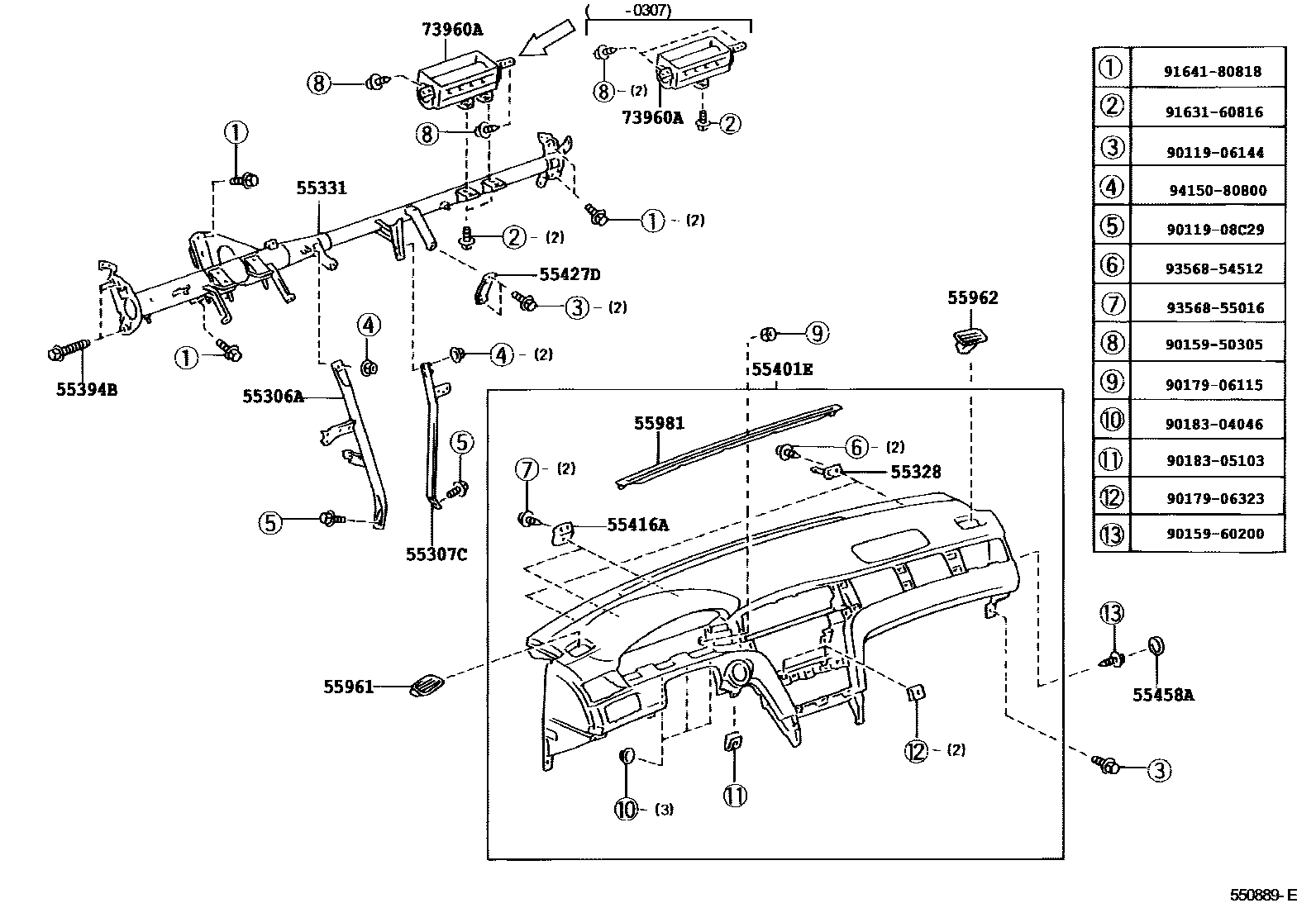

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55394BBOLT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SADDLE GRAY,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
SANDAL WOOD,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9011906144
main90119-06144
9011908C29
main90119-08C29
9015950305
main90159-50305
9015960200
main90159-60200
9017906115
main90179-06115
9017906323
main90179-06323
9018304046
main90183-04046
9018305103
main90183-05103
9163160816
main91631-60816
9164180818
main91641-80818
9356854512
main93568-54512
9356855016
main93568-55016
9415080800
main94150-80800
26 parts on this diagram · 2 diagrams in section
