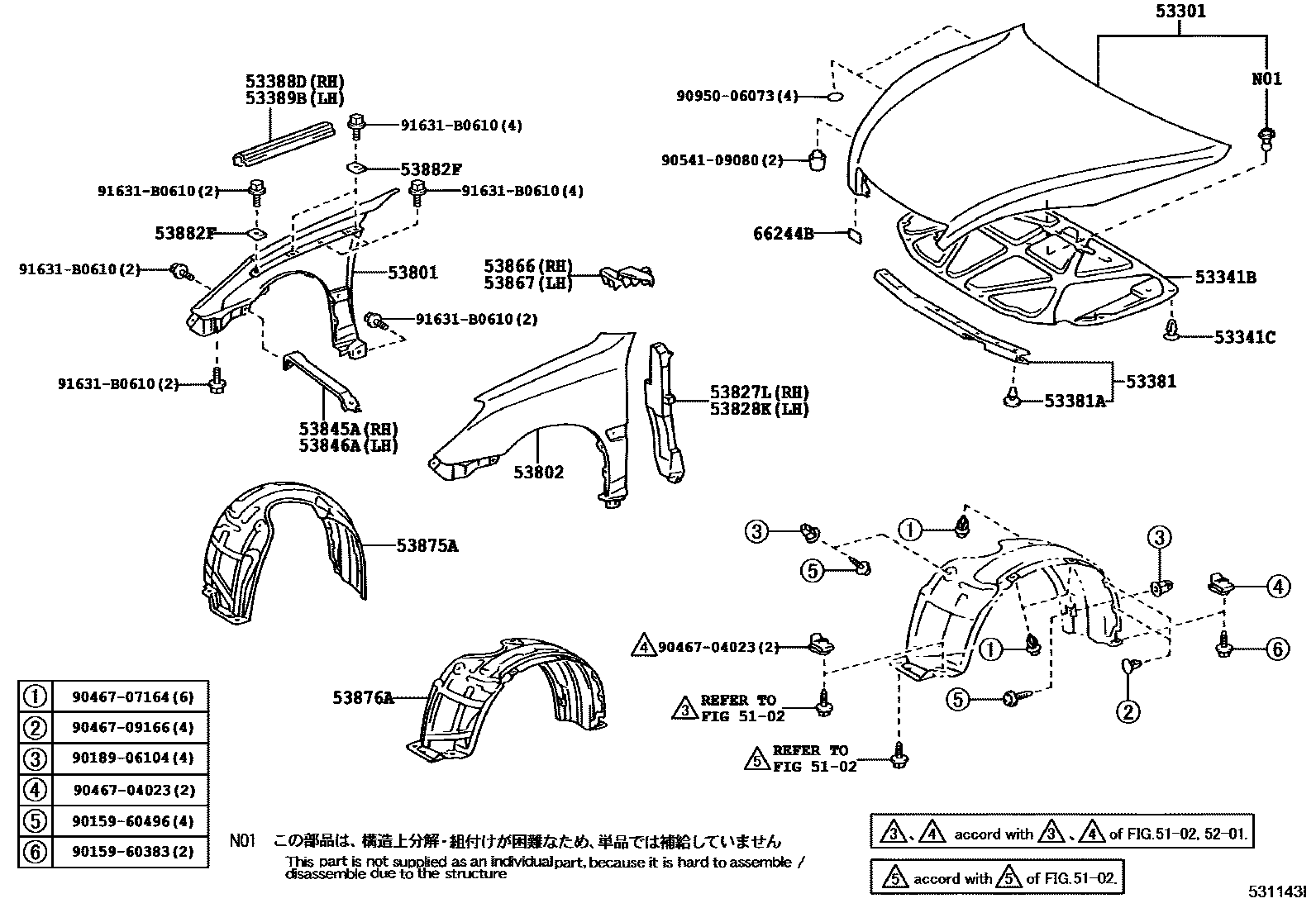

HOOD & FRONT FENDER

0001 1 0002 1

5102

53301HOOD SUB-ASSY

main53301-33090iMCV3#200107-200312

sub53301-33091

main53301-33091iMCV31200312-200603

53341BINSULATOR, HOOD

main53341-33100iMCV3#200107-200406

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006iMCV3#200107-200406

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-33060iMCV3#200107-200406

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMCV3#200107-200406

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-33020iMCV3#200107-200406

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-33030iMCV3#200107-200406

53801FENDER SUB-ASSY, FRONT RH

main53801-33150iMCV3#200107-200603

53802FENDER SUB-ASSY, FRONT LH

main53802-33150iMCV3#200107-200603

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-33050iMCV3#200107-200406

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-33050iMCV3#200107-200406

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-33070iMCV30200107-200603

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-33060iMCV30200107-200603

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-33050iMCV3#200107-200406

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-33050iMCV3#200107-200406

53875ALINER, FRONT FENDER, RH

main53875-33130iMCV3#200107-200406

sub53875-33140

main53875-33140iMCV31200406

53876ALINER, FRONT FENDER, LH

main53876-33130iMCV3#200107-200406

sub53876-33140

main53876-33140iMCV31200406

53882FSEAL, FRONT FENDER

main53882-16030iMCV31200107-200603

66244BPROTECTOR, HOOD

main53396-33020iMCV31200404-200406

main66244-30030iMCV3#200107-200403

sub53396-33020

9015960383

main90159-60383

9015960496

main90159-60496

9018906104

main90189-06104

9046704023

main90467-04023

9046707164

main90467-07164

9046709166

main90467-09166

9054109080

main90541-09080

9095006073

main90950-06073

91631B0610

main91631-B0610

29 parts on this diagram · 2 diagrams in section
