282470
›

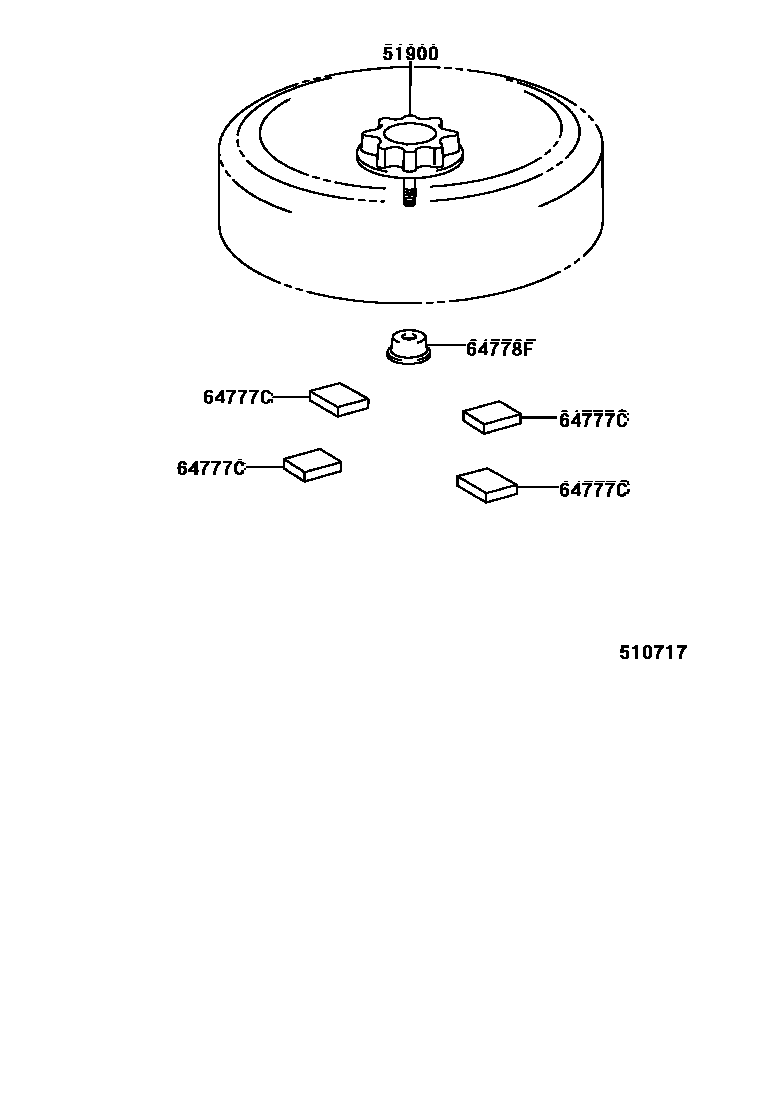

SPARE WHEEL CARRIER
SPARE WHEEL CARRIER
51900
CARRIER ASSY, SPARE WHEEL
main
51931-21030
i
MCV3#
200107-200406
64777C
CUSHION, SPARE WHEEL
main
64777-22060
×4
i
MCV30
200107-200304
main
64778-32030
×4
i
MCV3#
200304-200406
main
64778-33040
×4
i
MCV31
200406-200412
main
64778-33050
×4
i
MCV31
200412
64778F
PROTECTOR, SPARE WHEEL
main
64778-33030
i
MCV3#
200107-200406
3 parts on this diagram · 1 diagram in section
