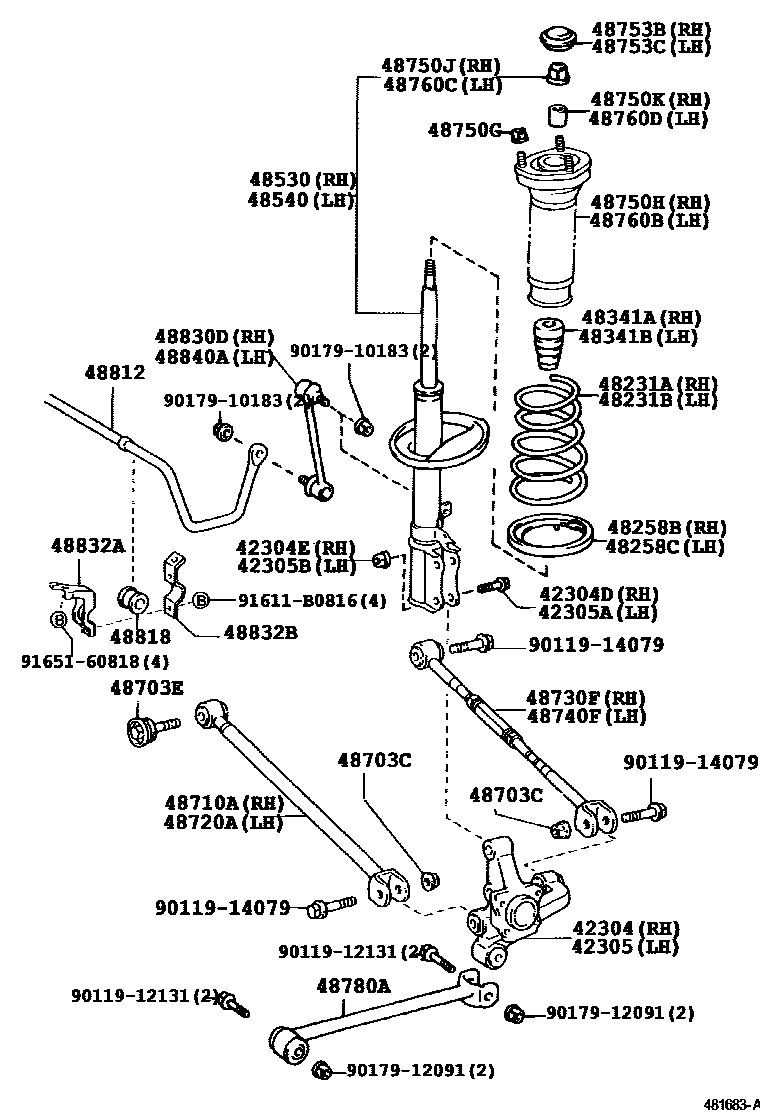

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
(L)
(J)
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
(L)
(J)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
sub48341-32054
48341BBUMPER, REAR SPRING, NO.1 LH
sub48341-32054
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-80164
W(TEMS)
MARK 48530-33281
W(TEMS)
MARK 48530-33360,W(TEMS)
48540ABSORBER ASSY, SHOCK, REAR LH
sub48540-39605
MARK 48540-33310,W(TEMS)
MARK 48540-33281
MARK 48540-33330,W(TEMS)
W(TEMS)
48703CNUT(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
W(DISCHARGE HEADLAMP)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48832BBRACKET, REAR STABILIZER BAR, NO.2
48840ALINK ASSY, REAR STABILIZER, LH
9011912131
main90119-12131
9011914079
main90119-14079
9017910183
main90179-10183
9017912091
main90179-12091
91611B0816
main91611-B0816
9165160818
main91651-60818
42 parts on this diagram · 1 diagram in section
