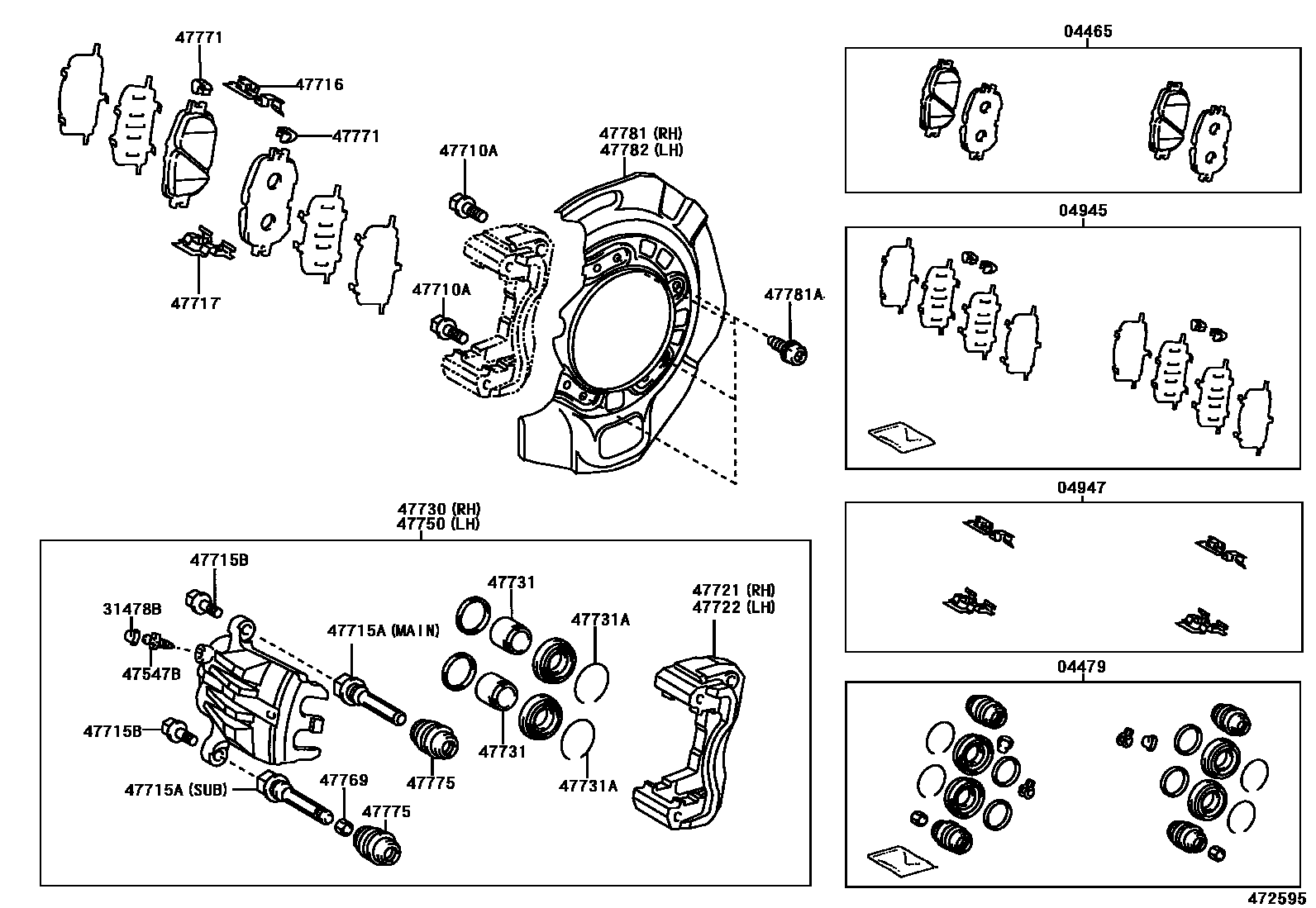

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1BRAZIL SPEC

04465PAD KIT, DISC BRAKE, FRONT

main04465-33270iMCV30200107-200302

MARK AK PA556H

sub04465-33280

main04465-33280iMCV3#200209-200406

MARK SUMITOMO PS558H

main04465-33320iMCV3#200107-200406

MARK NBK PN540H,BRAZIL SPEC

main04465-33350iMCV31200406

MARK SUMITOMO PS558H,BRAZIL SPEC

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-33150iMCV3#200107-200406

BRAZIL SPEC

sub04478-58010

main04479-33170iMCV3#200107-200406

sub04478-21020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33050iMCV3#200107-200406

BRAZIL SPEC

main04945-33070iMCV3#200107-200406

main04945-58010iMCV31200406

BRAZIL SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-33170iMCV3#200107-200406

BRAZIL SPEC

main04947-33180iMCV3#200107-200406

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMCV3#200107-200603

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMCV31200406-200603

BRAZIL SPEC

main47547-20010iMCV3#200107-200406

main47547-21030iMCV31200406-200603

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMCV30200107-200603

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iMCV31200107-200603

SUB

main47715-33050iMCV3#200107-200603

BRAZIL SPEC,MAIN

main47715-33060iMCV31200107-200603

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iMCV3#200107-200603

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33110iMCV3#200107-200406

BRAZIL SPEC

main47716-33130iMCV3#200107-200406

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-33080iMCV3#200107-200406

BRAZIL SPEC

main47717-33100iMCV3#200107-200406

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-33140iMCV31200107-200406

BRAZIL SPEC

main47721-33160iMCV30200107-200406

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-33140iMCV31200107-200406

BRAZIL SPEC

main47721-33160iMCV30200107-200406

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-33200iMCV3#200107-200406

BRAZIL SPEC

main47730-33220iMCV31200107-200406

main47730-58010iMCV31200406

BRAZIL SPEC

47731PISTON, FRONT DISC BRAKE

main47731-33090iMCV31200107-200603

BRAZIL SPEC

sub47731-33340

main47731-33100iMCV31200107-200603

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-51002iMCV3#200107-200603

main90522-76002iMCV3#200107-200603

BRAZIL SPEC

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-33200iMCV3#200107-200406

BRAZIL SPEC

main47750-33220iMCV3#200107-200406

main47750-58010iMCV31200406

BRAZIL SPEC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMCV3#200107-200603

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iMCV3#200107-200406

BRAZIL SPEC

main47771-33020iMCV3#200107-200406

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iMCV3#200107-200603

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48020iMCV30200107-200603

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iMCV30200107-200603

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48020iMCV30200107-200603

23 parts on this diagram · 2 diagrams in section
