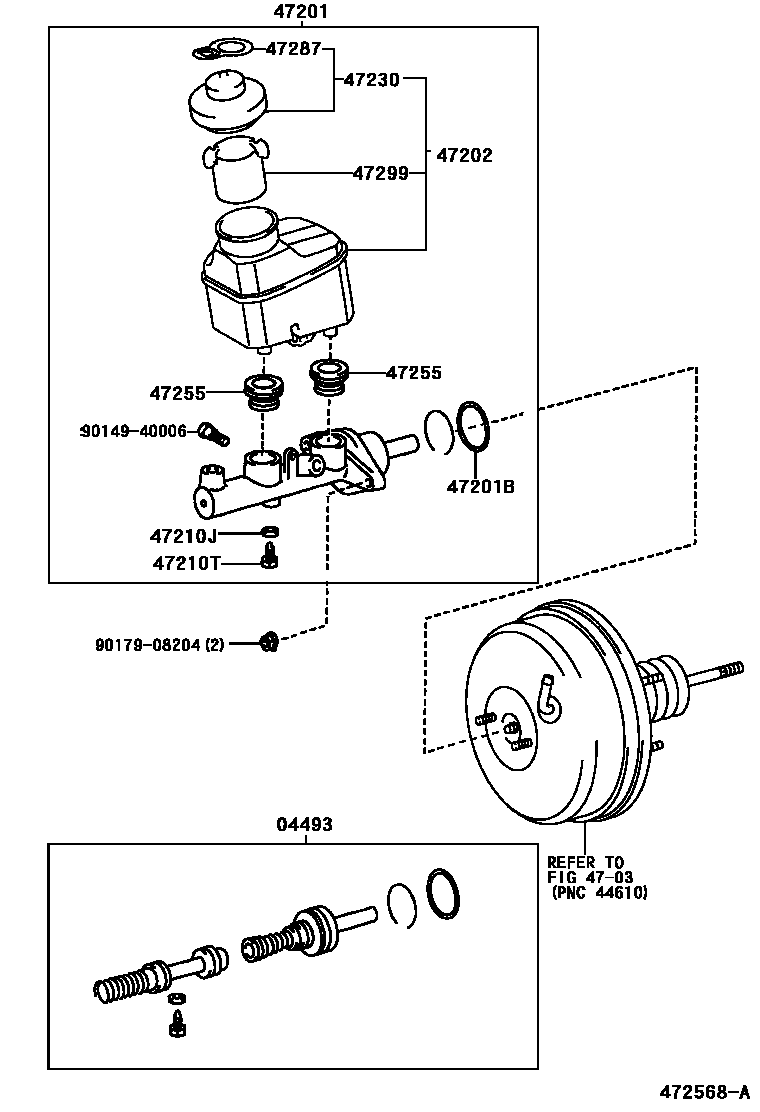

BRAKE MASTER CYLINDER

0001 1 0002 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-33110iMCV30200107-200406

main04493-33120iMCV30200107-200406

W(VSC)

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-33340iMCV3#200107-200406

main47201-33400iMCV30200107-200301

PNC 47202=TYPE A

main47201-33401iMCV3#200301-200406

PNC 47202=TYPE B

main47201-33401iMCV31200307-200406

W(VSC)

main47201-33410iMCV30200107-200307

W(VSC) & BRAZIL SPEC

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMCV3#200107-200406

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-33130iMCV30200107-200301

sub47220-33131

main47220-33131iMCV3#200301-200406

TYPE B:REFER ILLUST.

main47220-33131iMCV31200406

main47220-33190iMCV30200107-200301

TYPE A:REFER ILLUST.

main47220-33200iMCV30200107-200307

W(VSC) & BRAZIL SPEC

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCV31200112-200406

main90430-06104iMCV30200107-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCV3#200107-200406

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iMCV31200107-200406

W(VSC)

main47230-12040iMCV31200406

main47230-20140iMCV30200107-200307

BRAZIL SPEC

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMCV3#200107-200406

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCV30200107-200307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCV31200107-200406

9014940006

main90149-40006

9017908204

main90179-08204
