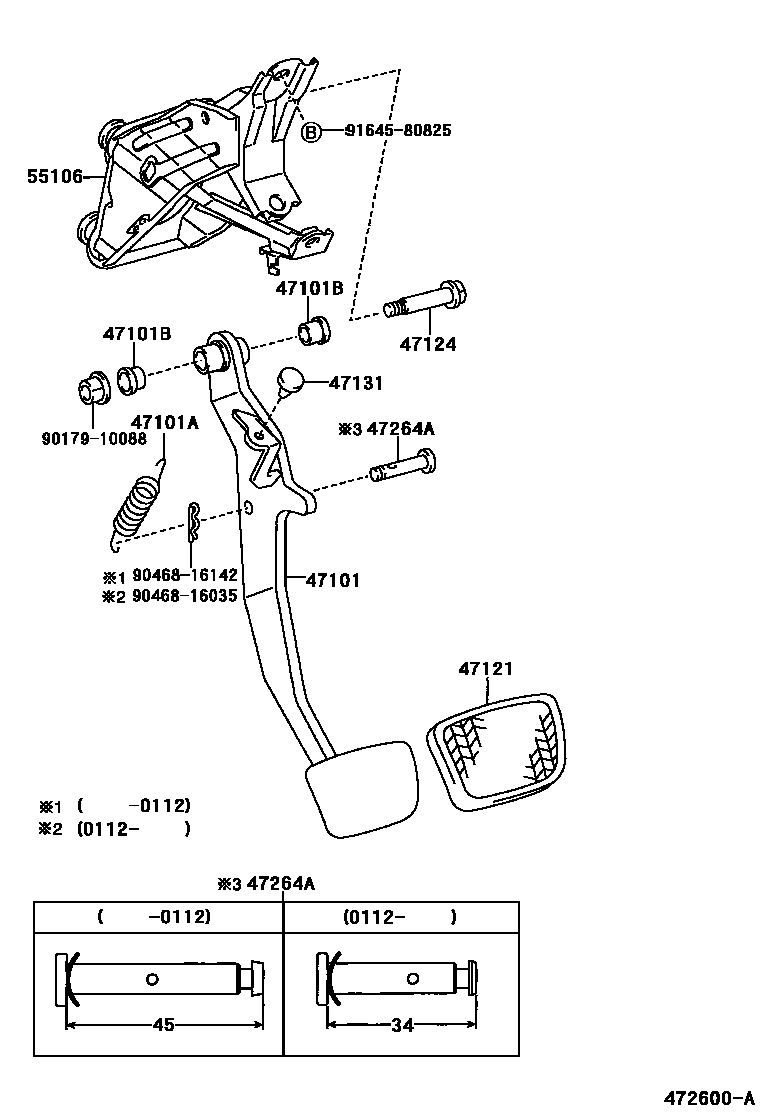

BRAKE PEDAL & BRACKET

0001 1 0002 1POWER ADJUSTABLE PEDAL

47101PEDAL SUB-ASSY, BRAKE

main47101-33070iMCV31¥2,980200107-200406

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14051iMCV3#¥140200107-200406

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCV3#¥120200107-200406

47121PAD, BRAKE PEDAL

main47121-50020iMCV3#¥510200107-200406

47124SHAFT, BRAKE PEDAL

main90109-10167iMCV31¥190200107-200406

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCV3#¥110200107-200406

47264APIN(FOR PUSH ROD)

main47148-33011iMCV31¥220200112-200406

main47148-33020iMCV30¥390200107-200112

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-33080iMCV30¥3,370200107-200406

9017910088

main90179-10088¥100

9046816035

main90468-16035¥140

9046816142

main90468-16142¥70

9164580825

main91645-80825¥100

12 parts on this diagram · 2 diagrams in section
