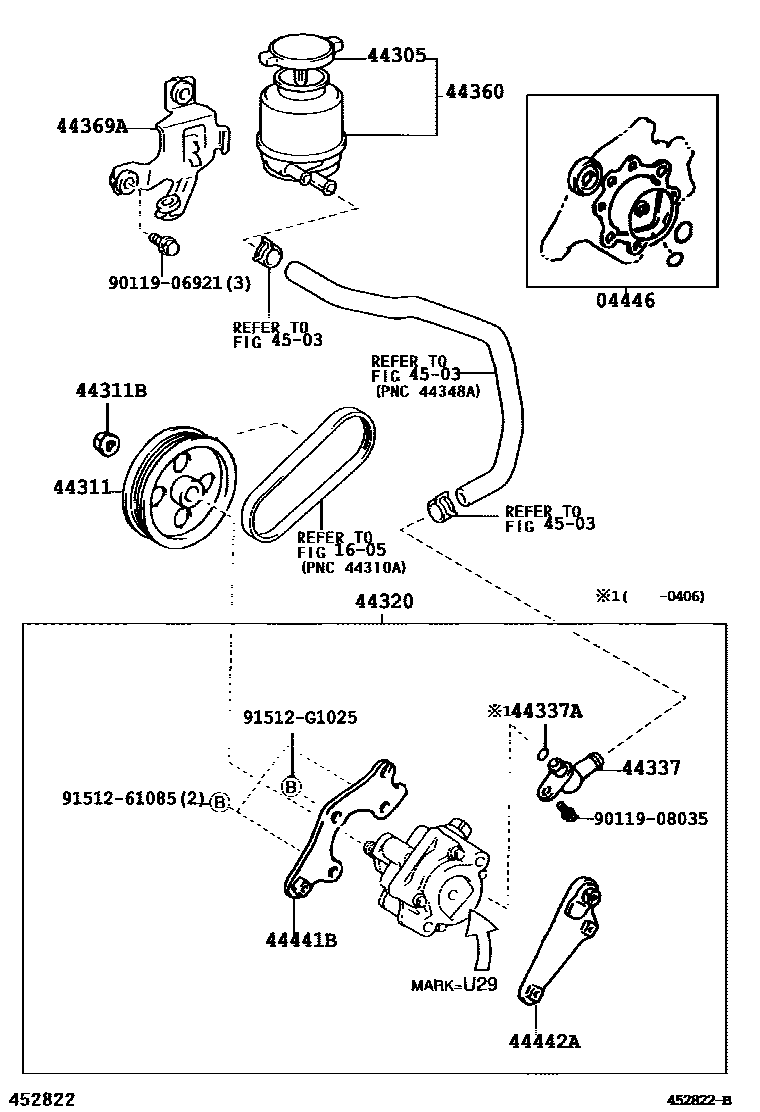

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1TYPE A 0002 1TYPE B

04446GASKET KIT, POWER STEERING PUMP

main04446-06040iMCV30200107-200307

TYPE B:REFER TO ILLUSTRATION

main04446-34010iMCV30200107-200307

TYPE A:REFER TO ILLUSTRATION

sub04446-53030

main04446-53030iMCV31200307

TYPE A:REFER TO ILLUSTRATION

1605

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iMCV3#200107-200406

sub44305-28060

44311PULLEY, VANE PUMP

main44311-28110iMCV31200107-200406

TYPE A:REFER TO ILLUSTRATION

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iMCV31200107-200406

TYPE A:REFER TO ILLUSTRATION

44320PUMP ASSY, VANE

main44310-06080iMCV31200107-200406

TYPE B:REFER TO ILLUSTRATION

main44320-33140iMCV3#200107-200406

TYPE A:REFER TO ILLUSTRATION

44337UNION, POWER STEERING SUCTION PORT

main44337-06040iMCV3#200107-200406

TYPE B:REFER TO ILLUSTRATION

main44337-33040iMCV3#200107-200406

TYPE A:REFER TO ILLUSTRATION

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30034iMCV3#200107-200406

TYPE B:REFER TO ILLUSTRATION

main90301-11016iMCV3#200107-200406

TYPE A:REFER TO ILLUSTRATION

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-33040iMCV3#200107-200406

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-33010iMCV3#200107-200406

44441BBRACKET, PUMP, FRONT

main44441-06040iMCV3#200107-200406

TYPE B:REFER TO ILLUSTRATION

main44441-28020iMCV3#200107-200406

TYPE A:REFER TO ILLUSTRATION

44442ABRACKET, VANE PUMP, REAR

main44442-07010iMCV3#200107-200406

TYPE B:REFER TO ILLUSTRATION

main44442-33021iMCV3#200107-200406

TYPE A:REFER TO ILLUSTRATION

4503

9011906921

main90119-06921

9011908035

main90119-08035

9151261085

main91512-61085

91512G1025

main91512-G1025

17 parts on this diagram · 2 diagrams in section
