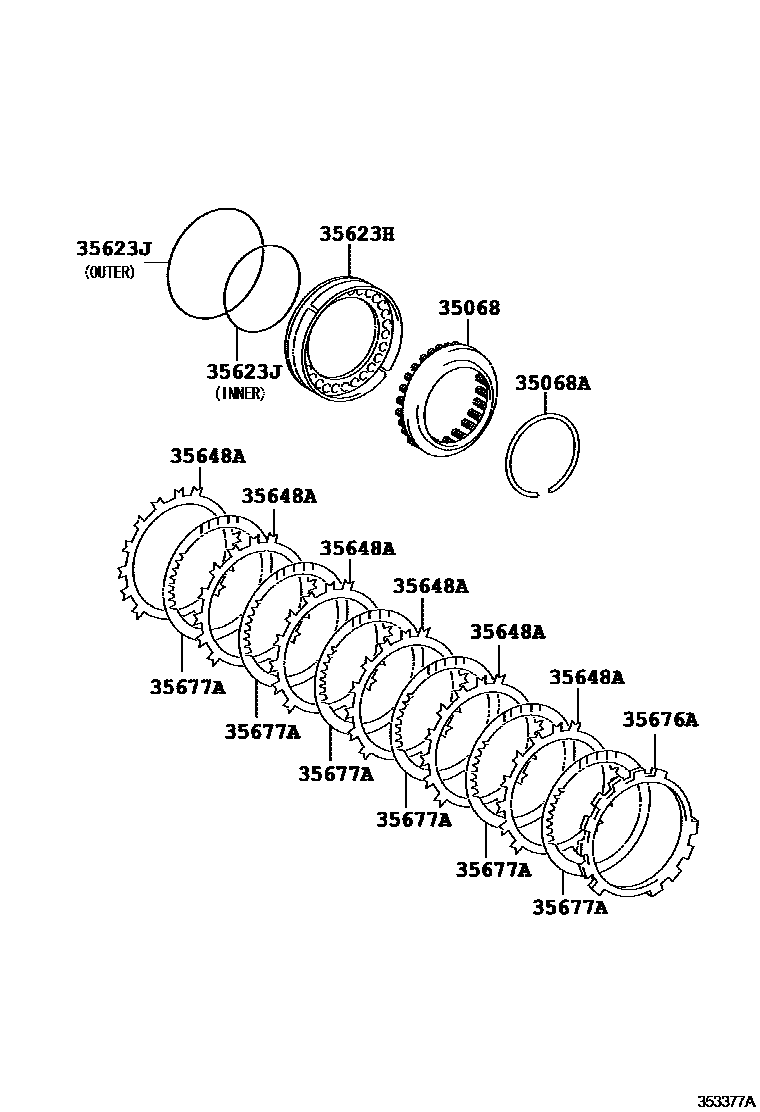

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-33020iMCV3#200107-200406

sub35068-33021

main35068-33021iMCV31200406

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iMCV3#200107-200603

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33030iMCV3#200107-200406

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iMCV3#200107-200406

INNER

main90301-99098iMCV31200107-200406

OUTER

sub90301-99134

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011iMCV31200509

main35692-28010iMCV3#200107-200509

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iMCV31200107-200406

T=1.8,MARK 1

main35678-21020iMCV3#200107-200406

T=1.9,MARK 2

main35678-21030iMCV3#200107-200406

T=2.0,MARK 3

main35678-21040iMCV31200107-200406

T=2.1,MARK 4

main35678-21050iMCV31200107-200406

T=2.2,MARK 5

main35678-21060iMCV3#200107-200406

T=2.3,MARK 6

main35678-21070iMCV3#200107-200406

T=2.4,MARK 7

main35678-21080iMCV3#200107-200406

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010iMCV3#200107-200406

7 parts on this diagram · 1 diagram in section
