TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

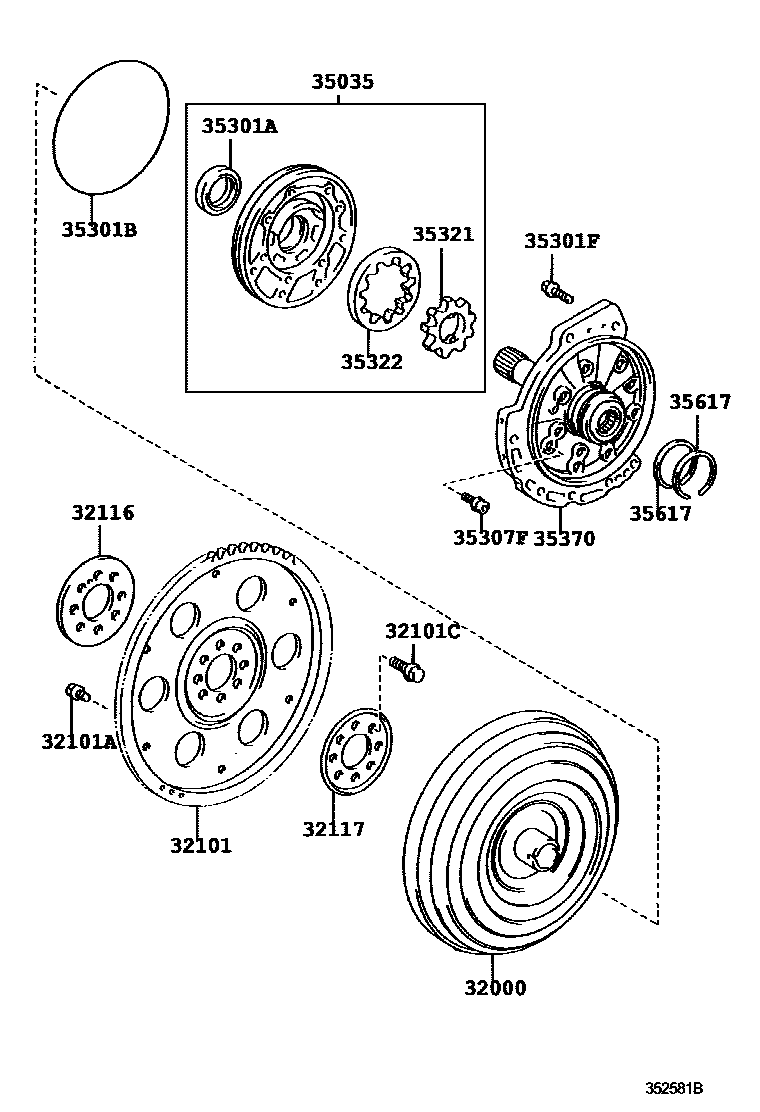

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-33110i200107-200307
main32000-48040i200307-200603
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06010i200406
(L)
sub32101-48010
main32101-33010i200107-200211
sub32101-48010
main32101-48010i200211-200406
main32101-48010i200406
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200107-200406
*9-1.25PX12.4-7.3,GREEN
main90109-09001i200406
*9-1.25PX12.4-7.3
main90119-09025i200406
*9-1.25PX12.4-8.4
main90119-09025i200107-200406
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200107-200603
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
main32116-32020i200107-200406
32117SPACER, DRIVE PLATE, REAR
main32117-32020i200107-200406
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-08010i200406
(L)
main35035-33020i200107-200406
sub35035-12080
main35035-33020i200406
(J)
sub35035-12080
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90080-31068i200406
(L)
main90311-38083i200107-200406
main90311-38083i200406
(J)
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i200107-200406
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i200107-200406
*8-1.25PX28-28
main90105-08198i200406
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90080-14044i200406
(L)
main90148-60027i200406
(J)
main90148-60027i200107-200406
35321GEAR, FRONT OIL PUMP DRIVE
main35321-08010i200406
T=11.715,MARK A,TOYOTA
main35321-08020i200406
T=11.715,MARK B,TOYOTA
main35321-08030i200406
T=11.715,MARK C,TOYOTA
main35321-08040i200406
T=11.715,MARK D,TOYOTA
main35321-08050i200406
T=11.715,MARK E,TOYOTA
main35321-33060i200107-200406
T=11.715,MARK A
main35321-33060i200406
T=11.715,MARK A,AISIN
main35321-33070i200406
T=11.715,MARK B,AISIN
main35321-33070i200107-200406
T=11.715,MARK B
main35321-33080i200107-200406
T=11.715,MARK C
main35321-33080i200406
T=11.715,MARK C,AISIN
main35321-33090i200107-200406
T=11.715,MARK D
main35321-33090i200406
T=11.715,MARK D,AISIN
main35321-33100i200107-200406
T=11.715,MARK E
main35321-33100i200406
T=11.715,MARK E,AISIN
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-08010i200406
T=11.715,MARK A,TOYOTA
main35322-08020i200406
T=11.715,MARK B,TOYOTA
main35322-08030i200406
T=11.715,MARK C,TOYOTA
main35322-08040i200406
T=11.715,MARK D,TOYOTA
main35322-08050i200406
T=11.715,MARK E,TOYOTA
main35322-33060i200406
T=11.715,MARK A,AISIN
main35322-33060i200107-200406
T=11.715,MARK A
main35322-33070i200406
T=11.715,MARK B,AISIN
main35322-33070i200107-200406
T=11.715,MARK B
main35322-33080i200107-200406
T=11.715,MARK C
main35322-33080i200406
T=11.715,MARK C,AISIN
main35322-33090i200107-200406
T=11.715,MARK D
main35322-33090i200406
T=11.715,MARK D,AISIN
main35322-33100i200107-200406
T=11.715,MARK E
main35322-33100i200406
T=11.715,MARK E,AISIN
35370SHAFT ASSY, STATOR
main35370-06010i200406
(L)
main35370-28010i200107-200406
sub35370-12110
main35370-28010i200406
(J)
sub35370-12110
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200107-200406
