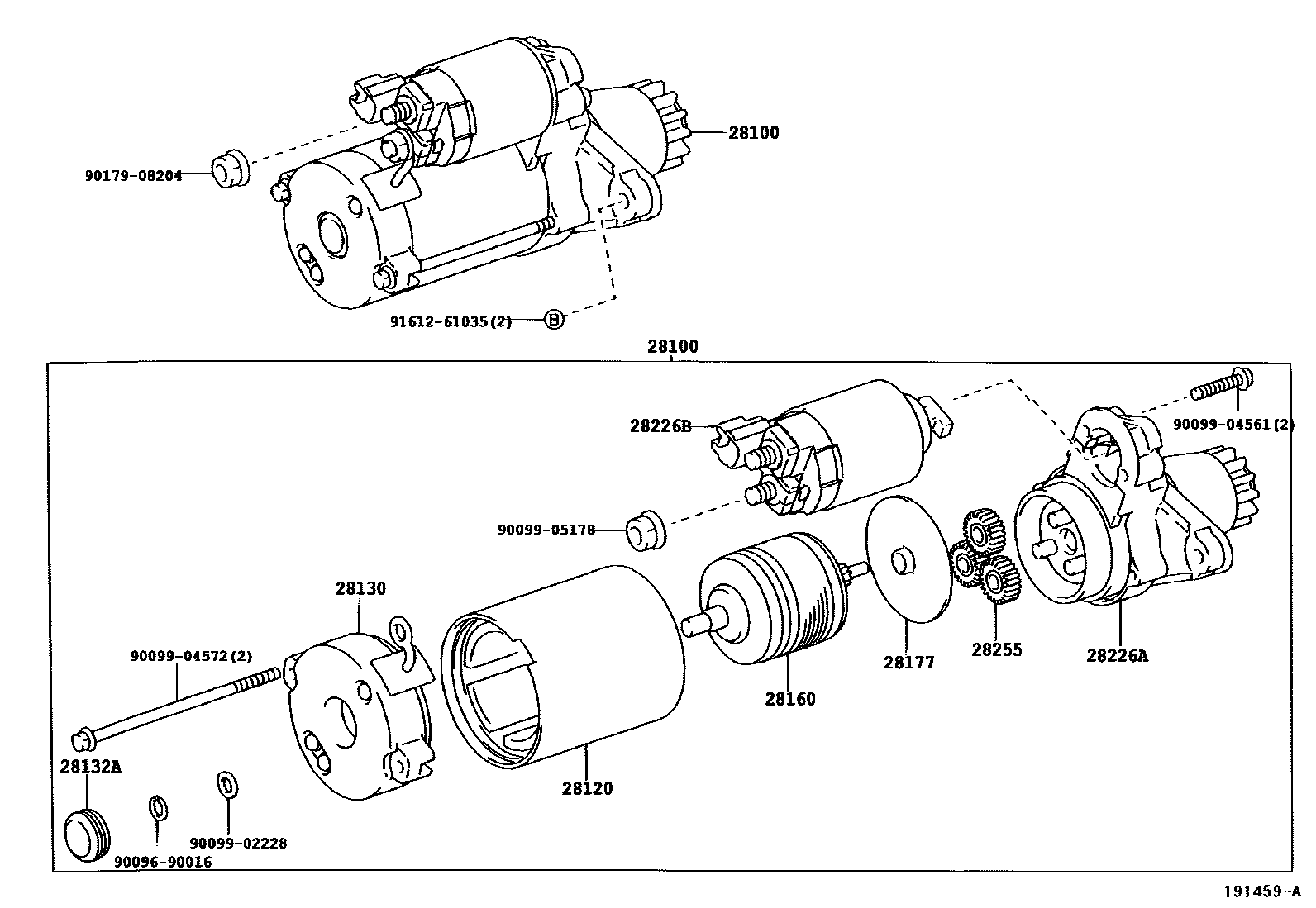

STARTER

0001 112V 1.6KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-20020i3MZFE..MCV31200307-200406

12V 1.7KW

sub28100-20021

main28100-28041i1MZFE..MCV30200107-200307

12V 1.6KW

sub28100-28042

28120YOKE ASSY, STARTER

main28120-28040i1MZFE,3MZFE..MCV3#200107-200406

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i3MZFE..MCV31200307-200406

main28130-28040i1MZFE..MCV30200107-200307

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1MZFE,3MZFE..MCV3#200107-200406

28160ARMATURE ASSY, STARTER

main28160-28040i3MZFE..MCV31200107-200406

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1MZFE,3MZFE..MCV3#200107-200406

28226ASTARTER KIT, MOTOR TERMINAL

main28226-28041i1MZFE,3MZFE..MCV3#200107-200406

28226BSTARTER KIT, REPAIR SERVICE

main28226-28050i1MZFE..MCV30200107-200205

sub28226-28051

main28226-28051i1MZFE,3MZFE..MCV3#200205-200406

28255GEAR, PLANET

main28255-20020i3MZFE..MCV31200307-200406

main28255-28040i1MZFE..MCV30200107-200307

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

9161261035

main91612-61035

16 parts on this diagram · 2 diagrams in section
