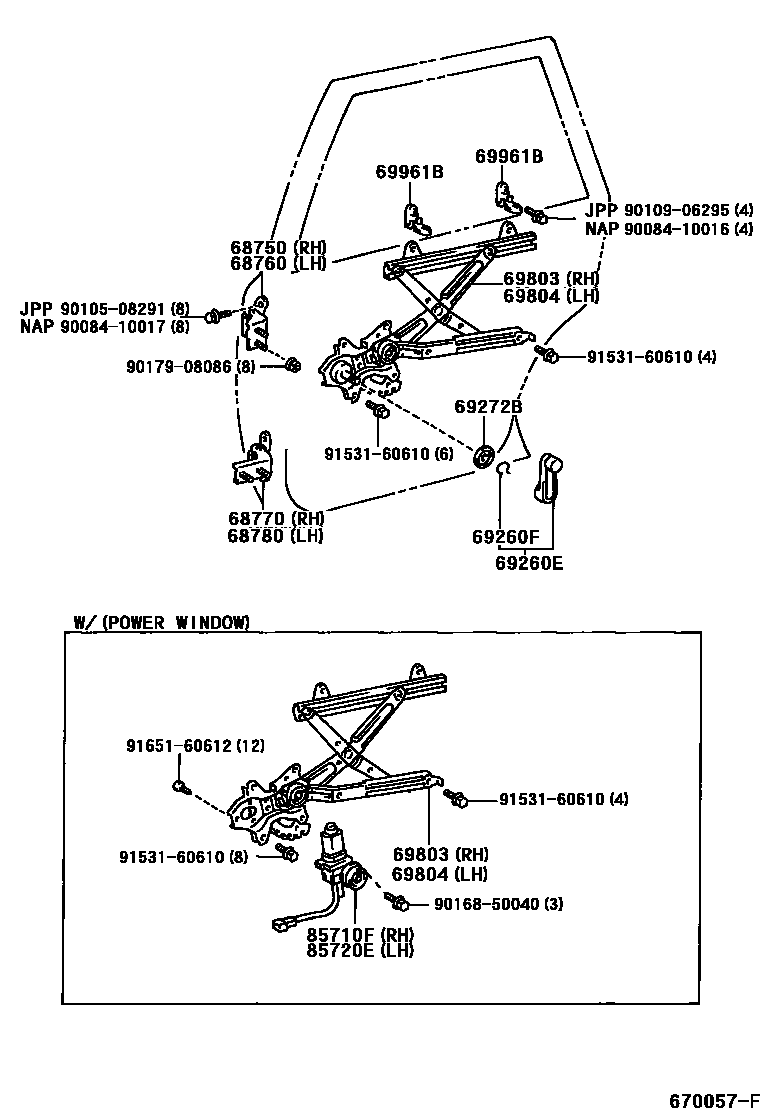

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iMCV20,SXV2#..JPP199608-199908

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iMCV20,SXV20..JPP199608-199908

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33010iMCV20,SXV20..JPP199608-199908

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33010iMCV20,SXV20..JPP199608-199908

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-AA010-B0iMCV20,SXV20..JPP..CE199805

BLUE GRAY,TRIM1#

main69260-AA010-E0iMCV20,SXV20..JPP..CE199805

MD.OAK,TRIM4#

main69260-AA010-G0iMCV20,SXV20..JPP..CE199805

SAGE.,TRIM6#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52001iMCV20,SXV20..JPP..CE199805

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020iMCV20,SXV20..JPP..CE199805

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69803-33010iMCV20,SXV20..JPP..(LE,XLE)199608-199908

main69830-AA040iMCV20,SXV20..JPP..CE199805

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33010iMCV20,SXV2#..JPP..(LE,XLE)199608-199908

main69804-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69840-AA040iMCV20,SXV20..JPP..CE199805

69961BRETAINER, REAR DOOR GLASS

main69961-33010iMCV20,SXV20..JPP199608-199908

FRONT

main69963-33010iMCV20,SXV20..JPP199608-199908

REAR

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30300iMCV20,SXV20..JPP199608-199908

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33060iMCV20,SXV20..JPP199608-199908

9008410016

main90084-10016

9008410017

main90084-10017

9010508291

main90105-08291

9010906295

main90109-06295

9016850040

main90168-50040

9017908086

main90179-08086

9153160610

main91531-60610

9165160612

main91651-60612

20 parts on this diagram · 1 diagram in section
