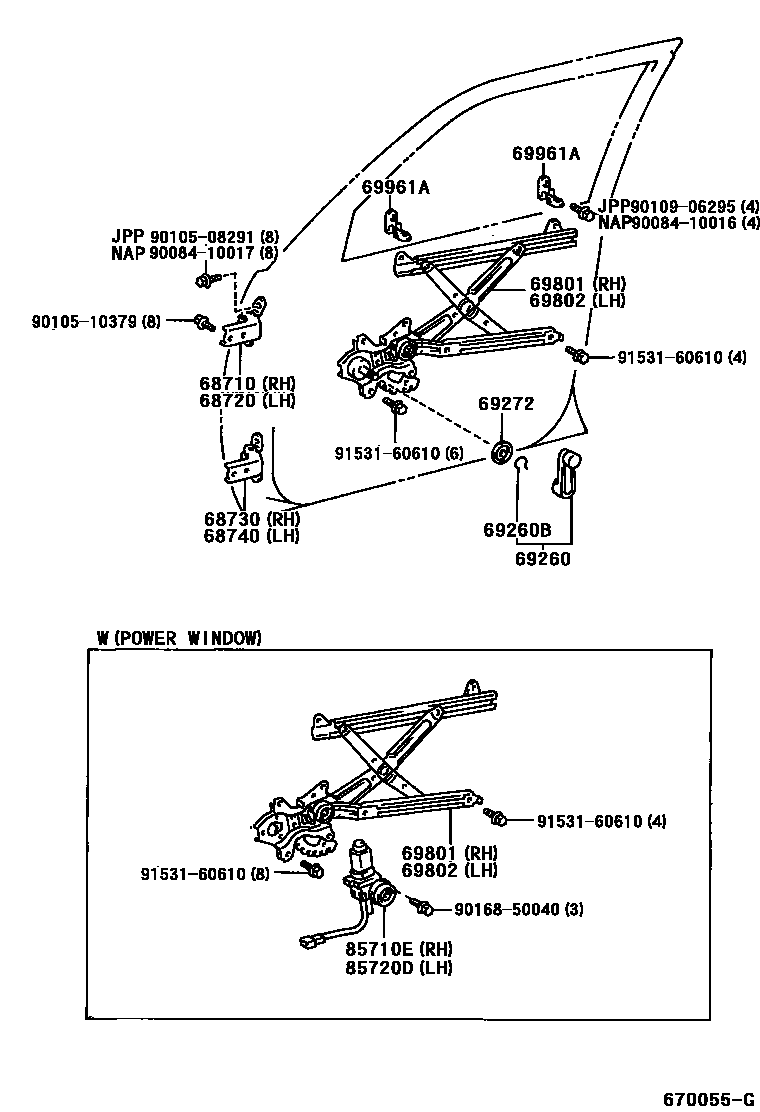

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-33010iMCV20,SXV2#..JPP199608

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-33010iMCV20,SXV2#..JPP199608-199908

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-33010iMCV20,SXV20..JPP199608-199908

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-33010iMCV20,SXV2#..JPP199608-199908

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-AA010-B0iMCV20,SXV20..JPP..CE199805

BLUE GRAY,TRIM1#

main69260-AA010-E0iMCV20,SXV20..JPP..CE199805

MD.OAK,TRIM4#

main69260-AA010-G0iMCV20,SXV20..JPP..CE199805

SAGE.,TRIM6#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52001iMCV20,SXV20..JPP..CE199805

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iMCV20,SXV20..JPP..CE199805

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-33010iMCV20,SXV2#..JPP..(LE,XLE)199608-199908

main69801-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69810-AA030iMCV20,SXV20..JPP..CE199805

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-33010iMCV20,SXV20..JPP..(LE,XLE)199608-199908

main69802-33010iMCV20,SXV20..JPP..CE199805

W(POWER WINDOW)

main69820-AA030iMCV20,SXV20..JPP..CE199805

69961ARETAINER, FRONT DOOR GLASS

main69961-33010iMCV20,SXV20..JPP199608-199704

FRONT

main69961-33020iMCV20,SXV20..JPP199704-199908

FRONT

main69963-33010iMCV20,SXV20..JPP199608-199704

REAR

main69963-33020iMCV20,SXV20..JPP199704-199908

REAR

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33050iMCV20,SXV20..JPP199608-199908

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33050iMCV20,SXV20..JPP199608-199908

9008410016

main90084-10016

9008410017

main90084-10017

9010508291

main90105-08291

9010510379

main90105-10379

9010906295

main90109-06295

9016850040

main90168-50040

9153160610

main91531-60610

19 parts on this diagram · 1 diagram in section
